glove compartment cover in front of the driver seat.

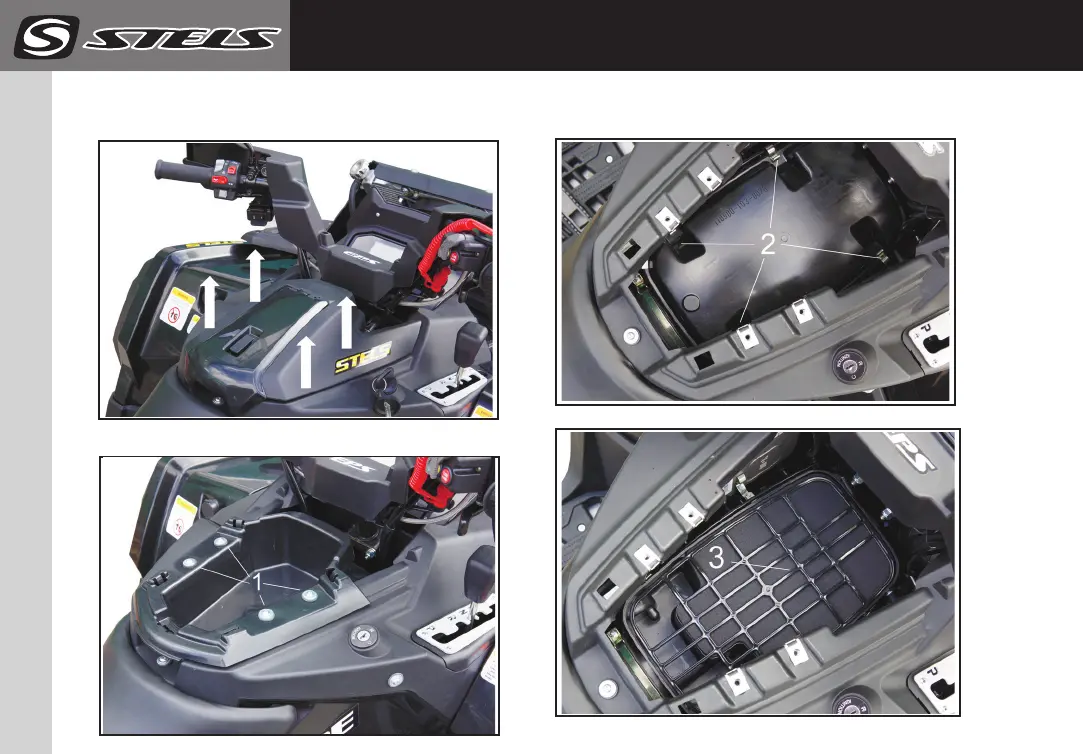

1. Remove the glove compartment casing.
2. Remove the air filter case cover, detaching
the spring clips.
3. Remove the used filter cartridge.
4. Install a new air filter cartridge
SAFETY CUT-OFF 650/800/850 GUEPARD
93
Fuse cut-out replacement
The main fusebox is positioned under the driver
seat at the front. In case of the fuse cut-off burn up
replace it as follows:
1. Turn the ignition key to the « OFF » position and turn
off all the electric devices.
2. Remove the burnt fuse cut - off and install a new
one of appropriate rating.
3. Turn the key in the ignition switch to the «ON»
position (ignition) and turn on all the electric devices
to check their operation.
4. If the fuse cut-out burns immediately, contact the
repair workshop to find out the cause.
___________________________________
Always use the fuse cut-outs of appropriate
rating. Using the fuse cut-outs of a different rating
or using non - fusible connectors is dangerous.
An improper fuse cut - out rating may cause the
electric system damage, which in its turn may
result in inflammation.
To prevent an accidental short circuit during the
cut - out check or replacement, always set the
ignition switch to «OFF» position.
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
The cut-out relay unit (modification with an
electric power steering and additional removable
radiator)
Fuse cut-out ratings:
1. Main relay 30 А
2. Cooling fan 20 А
3. Fuel pump 15 А
4. Head lamp 10 А
5. Electric power steering 30 А
6. Ignition lock 10 А
7. Rear auxiliary power connector 10 А
8. Front auxiliary power connector 10 А
9.
«2WD / 4WD» switch
5 А
