Stephan VCM 44 - 11.1 Stand for US execution

Stand for US execution
31.10.2002 \\Docuserver\ba\UM\Ersatzteile\engl\044_60\UM_A+S\StänderUS.fm 30
Assembly group

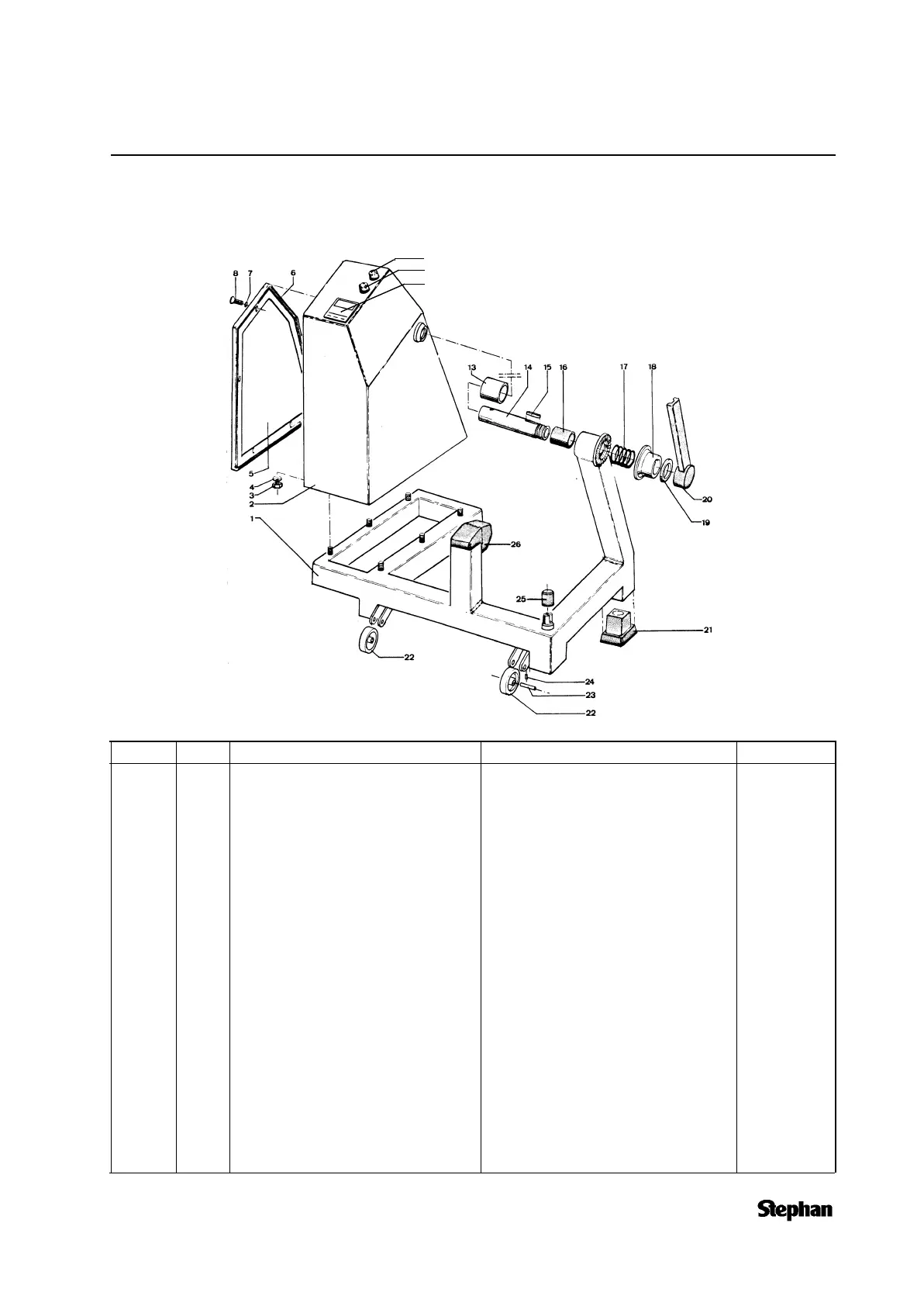

11.1 Stand for US execution
Pos. No. Qty. Description Dimensions Part No.
1 1 support with rolls 3A2010-04
2 1 switch cabinet, for push buttons and timer Stainless Steel 3F0030-01
3 6 hex. nut M8 DIN 934 3S0200-05
4 6 spring washer B8 DIN 127 3S0246-04
5 1 door f. switch housing 3F0024-02
6 2 cellular rubber sealing 12 x 5 in meters 3T4004-04
7 5 O-ring 2-011 3I0001-04
8 5 countersunk screw 7 x 50 DIN 95 3S0196-02
9 2 cap for pushbuttons
10 1 timer digital SX 200 A6 3Q4021-01
11 1 pushbutton D3A 1 GG/DA 11 3Q6032-11
12 1 pushbutton D3A 1 GR/DA 11 3Q6032-10
13 1 distance piece 3K0530-08
14 1 bearing bolt 3K2591-01
15 1 feather key AB 10 x 8 x 40 3S0284-02
16 1 bearing bush 3K0535-03
17 1 pressure spring f.locking 3M6001-22
18 1 locking disc 3K0738-01
19 1 distance disc 2.5 mm 3K0200-25
19 " 3.0 mm 3K0200-26
19 " 3.5 mm 3K0200-27
19 " 4.0 mm 3K0200-28
19 " 4.5 mm 3K0200-29
20 1 locking lever 3M2450-02
11
12
10
