Assembly group

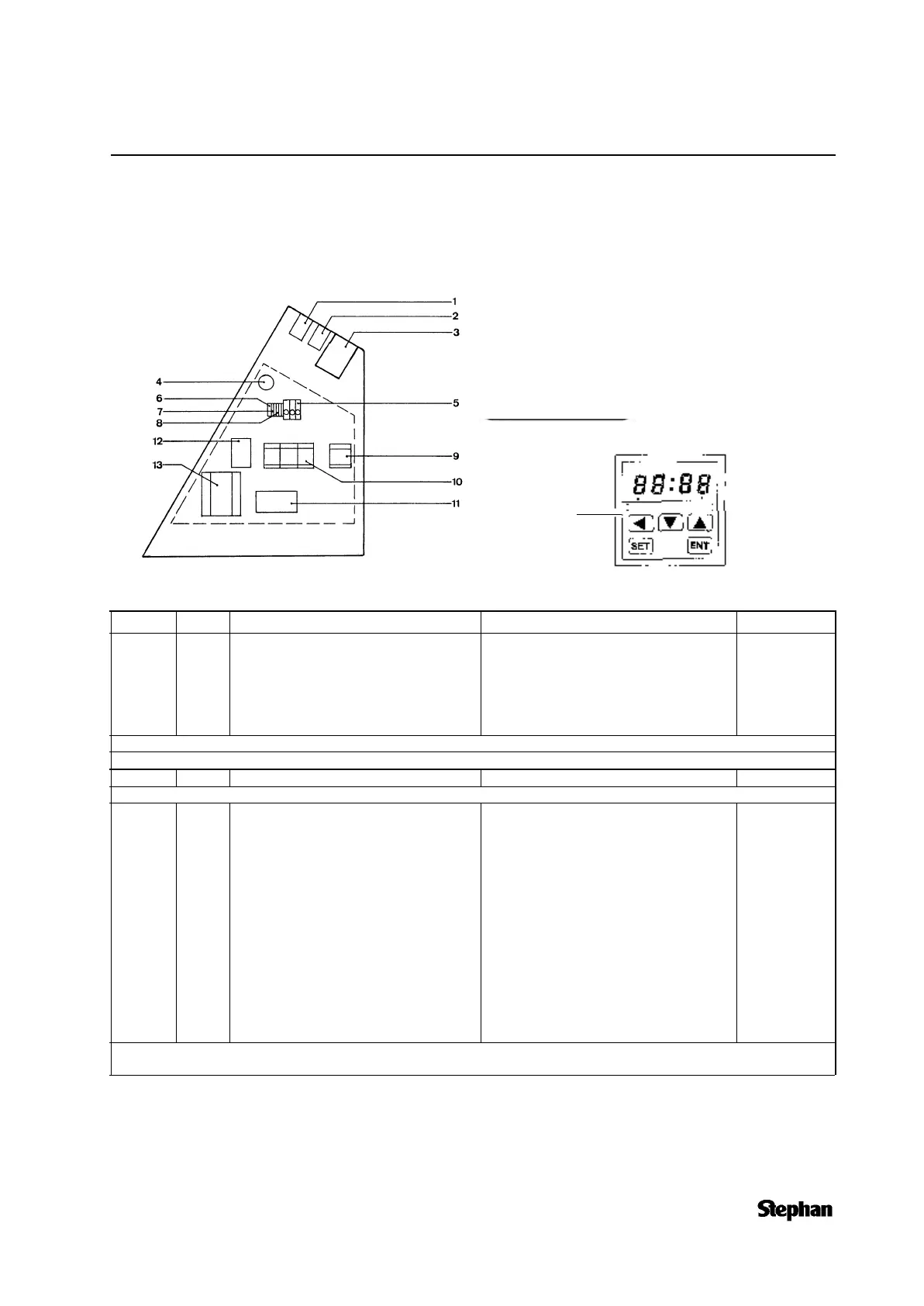

11.6 Electrical equipment VCM 44
Pos. No. Qty. Description Dimensions Part No.
1 1 Control lamp RLF-ws / BF 110 3Q0600-10
1 Spare lamp for Pos. 1 GL 130
2 1 Push-button - ON D3A 1GG/DA 11 3Q6032-11
2 Contact block DA 11 3Q0094-05
2 1 Push-button - OFF D3A 1GR/DA 11 3Q6032-10
2 Contact bock DA 11 3Q0094-05
(Optional) Additional equipment:
3.1 1 Digital timer SX 200 A6 3Q4021-01
4 1 insulating sleeve 423
5 2 Fuse terminal SAK 53/32
6 1 Earth terminal EK 4/35 3Q0515-21
7
8 4 Terminal SAK 4/35 3Q0520-09
9 1 Control relay DIL R 31
12 1 Heater SK 3105 / 10 W 3H2170-03
14
15 1 Motor protection switch PK M1-4.0/Hi 10 3H6007-11
16 1 Cooling fan SK 3165 110V/ 50/60Hz 3H2180-03
Magnet switch MAK 1212 F 3Q6003-05
Switch magnet TK 21 3Q6005-01
The electrical equipment of your machine is made according to the machine type and the order confirmation. The wiring
diagram of your machine you will find separately in the switch board
3.1
3a
Machines with foil keyboard
3b
Machines with push buttons
