Stephan VCM 44 - 11.4 Working inserts

Working inserts
31.10.2002 \\Docuserver\ba\UM\Ersatzteile\engl\044_60\UM_A+S\ArbeitseinsätzeUS.fm 35

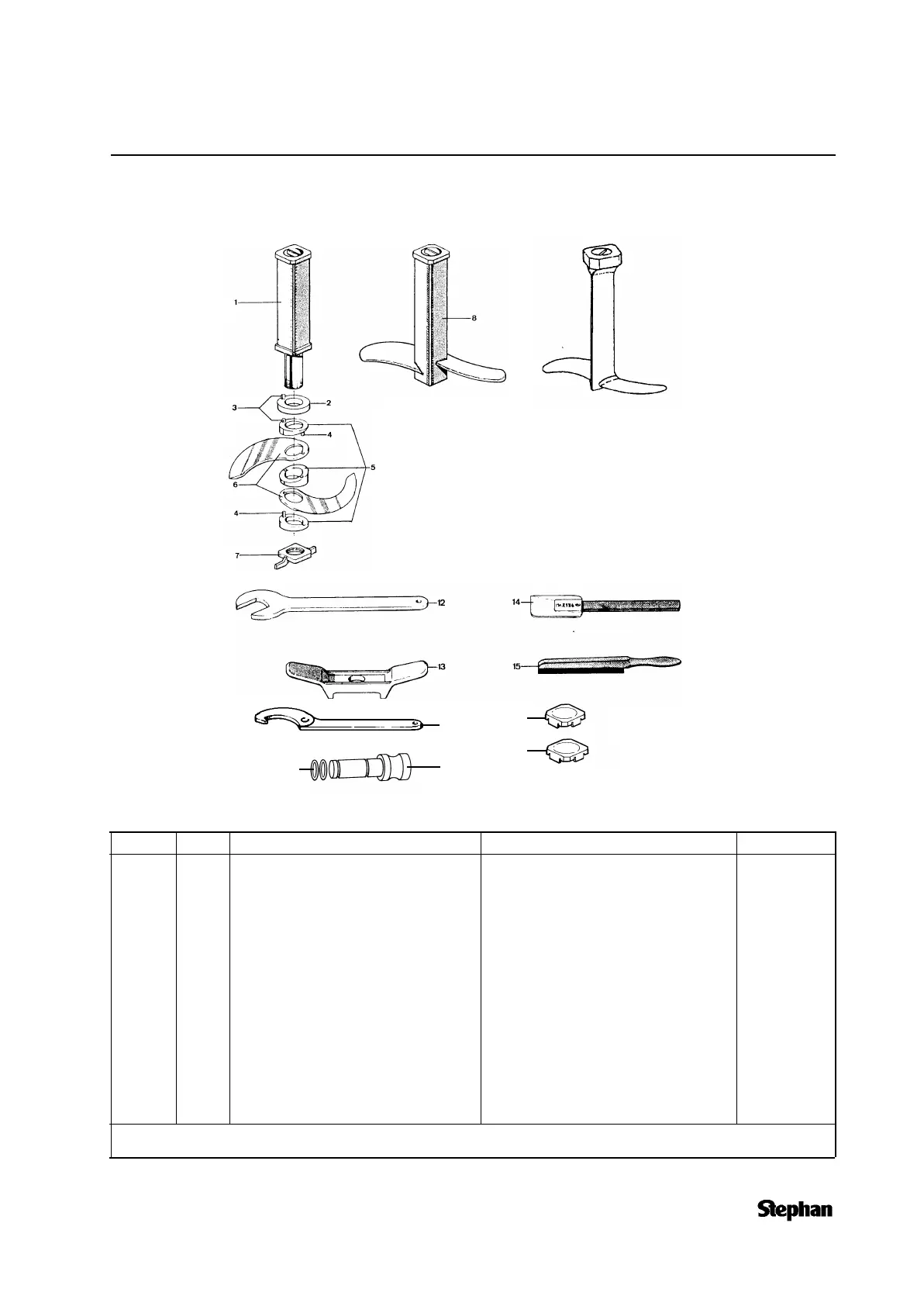

Assembly group
11.4 Working inserts
Pos. No. Qty. Description Dimensions Part No.
1 1 Knife shaft, complete, without knives ceramic-blasted 3D0150-02
1 1 Knife shaft, complete, without knives electropolished 3D0150-11
2 1 Pressure ring UM 44.05-10 217, 1.4571 V4A 3K0310-02
3 2 Pin 6 x 14,5 SKU 40.05-18 3K2035-03
4 2 Pin 6 x 25,0 SKU 40.05-17 3K2035-05
5 1 Slant ring set complete. with pins SKU 40.05-16, 1.4571 V4A 3K0315-01
6 1 Set = 2 pc. small knives SKU 40.05-13 3D0006-07
1 Set = 2 pc. wide knives SKU 40.05-14 3D0007-05
1 Set = 2 pc. small wave cut knives SKU 40.05-40 3D0006-08
1 Set = 2 pc. wide wave cut knives SKU 40.05-39 3D0007-05
1 Set = 1 wide knife and 1 angle bent knife 3D007-05
+3D0115-01
1 Set = 1 wide wave cut knife and 1 angle bent
wave cut knife
3D007-05
+3D0115-06
7 1 Wing nut for knife shaft electropolished 3K0008-25
8 1 Mixing insert, aluminium UM 44.05-10 207 3D4037-03
Tools:
16
20
19
17
18
8
