Stephan VCM 44 - 11.2 Bowl, standard

Bowl, standard
31.10.2002 \\Docuserver\ba\UM\Ersatzteile\engl\044_60\UM_A+S\Schüssstd.fm 32
Assembly group

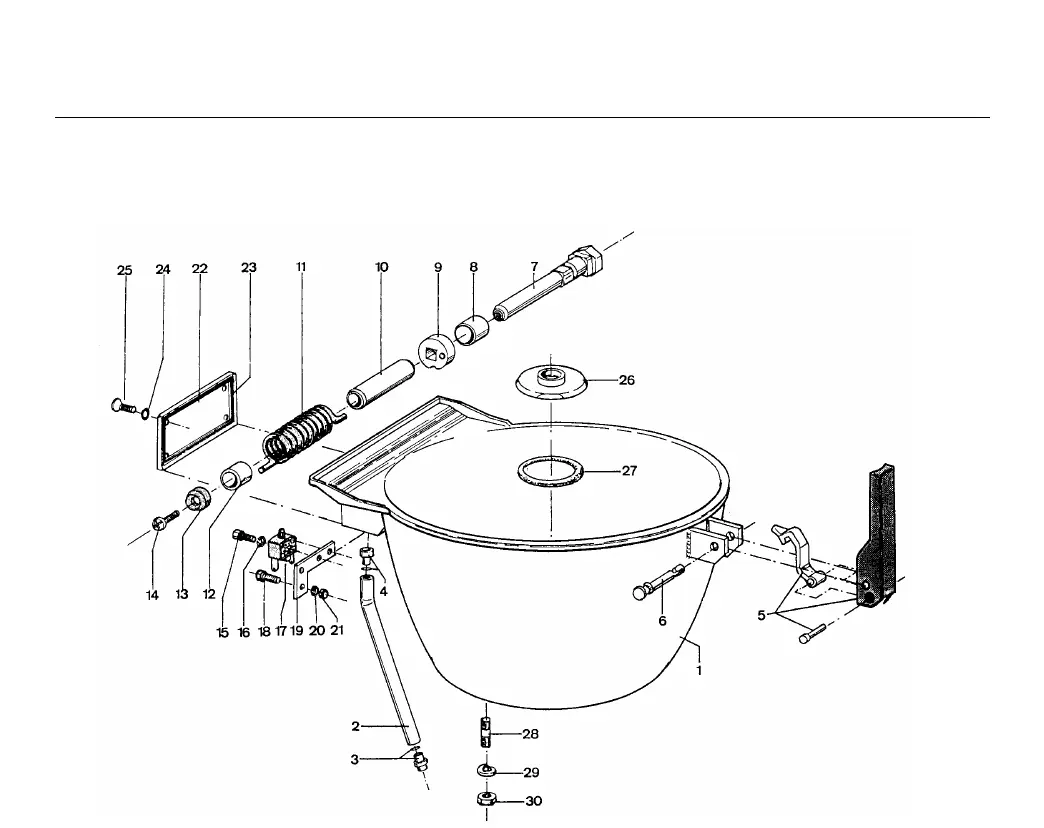

11.2 Bowl, standard
Pos. No. Qty. Description Dimensions Part No.
1 1 Bowl, electro-polished 3B0222-01
2 1 Cable tube 3M0020-01
3 1 Guide bush 3K0530-50
3 O-ring für Pos. 3 2-015 3I0001-07
4 1 Bush 3K0530-51
5 1 Locking lever , compl. 3G0025-01
6 1 Bolt for locking lever 3K2556-01
7 1 Lid bolt 3K2426-01
8 1 Bearing bush für Pos. 7 3K0401-04
9 1 Curved disc 3K0712-01
10 1 Bush for lid bolt 3K0531-02
11 1 Torsion spring 3M6003-04
12 1 Bearing bush for lid bolt 3K0401-03
13 1 Cap for lid bolt 3K0307-02
14 1 raised countersunk screw M 8 x 12, DIN 966 3S0102-01
15 2 Socket head cap screw M 4 x 20, DIN 84 3S0041-05
16 2 Spring washer B 4, DIN 127 3S0246-01
17 1 Position switch TI2-U12 W 3Q6021-02
18 2 Hex.nut M 5 x 16, DIN 933 3S0001-03
19 1 Holding plate for limit switch 3L0806-02
20 2 Spring washer B 5, DIN 127 3S0246-02
21 2 Hex. nut M 5, DIN 934 3S0200-03
22 1 lid for terminal box 3M2282-02
24 4 O-ring 2-009 3I0001-02
25 4 Countersunk screw M 6 x 16, DIN 966 3S0102-05
