StepperOnline DM422T - Sequence Chart of Control Signals; Protection Functions

DM422T Digital Stepper Drive User Manual
6
7. Sequence Chart of Control Signals
In order to avoid some fault operations and deviations, PUL, DIR and ENA should abide by some rules,
shown as following diagram:

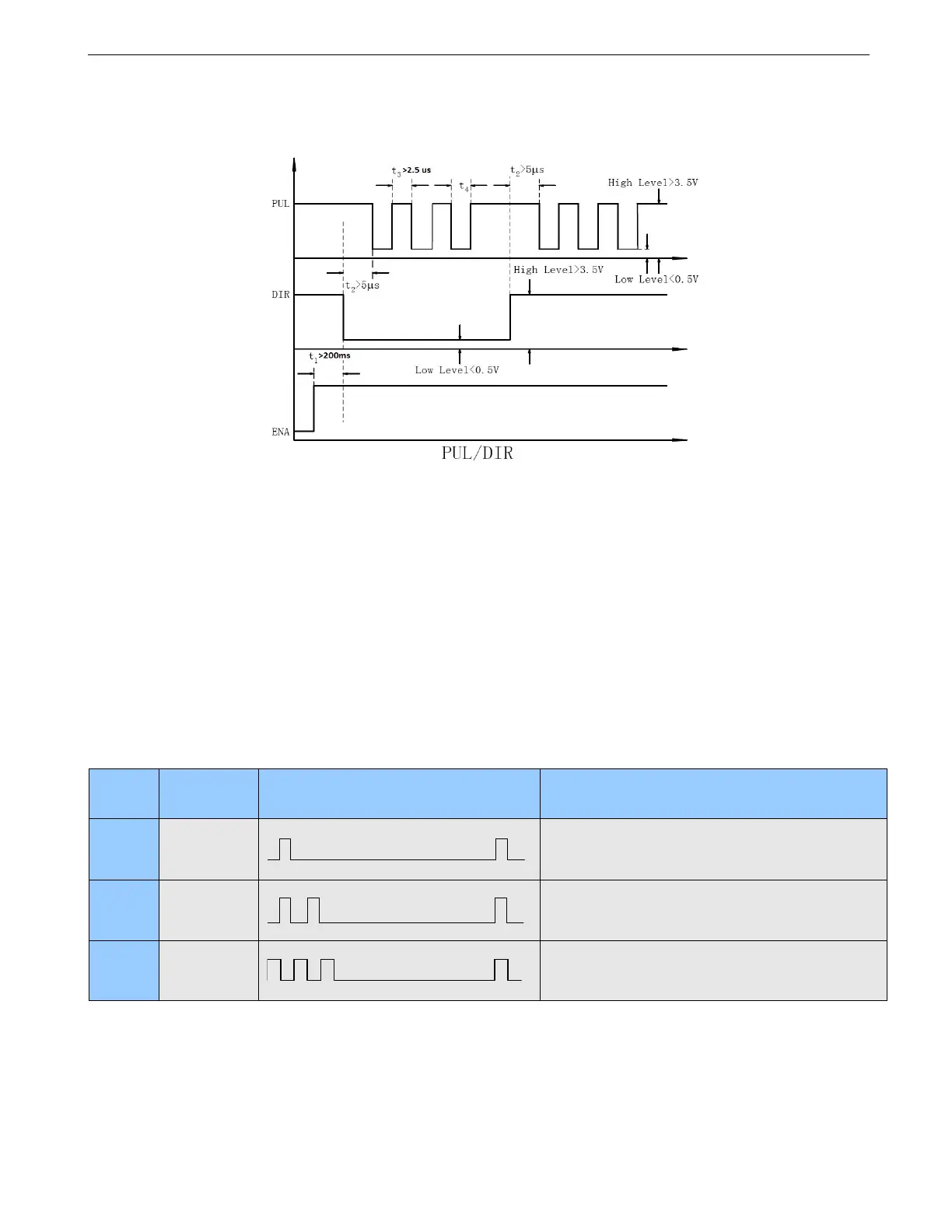

Figure 9 Sequence charts of control signals
Remark:
a) t1: ENA must be ahead of DIR by at least 200ms. Usually, ENA+ and ENA- are NC (not connected).
See “Connector P1 Configurations” for more information.
b) t2: DIR must be ahead of PUL effective edge by 5 s to ensure correct direction;
c) t3: Pulse width not less than 2.5s;
d) t4: Low level width not less than 2.5s;
e) Duty cycle of Pulse signal is recommending 50%.
8. Protection Functions
To improve reliability, the drive incorporates some built-in protections features.
Priority
Time(s) of
Blink
Sequence wave of red LED
Description
1st
1
Over-current protection activated when peak
current exceeds the limit.
2nd
2
Over-voltage protection activated when drive
working voltage is greater than 60VDC
3nd
3
Reserved.
When above protections are active, the motor shaft will be free or the red LED blinks. Reset the drive by
repowering it to make it function properly after removing above problems.
