Full Digital Stepper Drive DM860T
6. Power Supply Selection
The DM860T can match medium and small size stepping motors (frame size from NEMA24 to 34). To achieve good
driving performances, it is important to select supply voltage and output current properly. Generally speaking, supply
voltage determines the high speed performance of the motor, while output current determines the output torque of the
driven motor (particularly at lower speed). Higher supply voltage will allow higher motor speed to be achieved, at
the price of more noise and heating. If the motion speed requirement is low, it’s better to use lower supply voltage to
decrease noise, heating and improve reliability.
AC or DC Power Supply
Both AC (18~80VAC)and DC (30~110VDC)power supplies can be used to supply the drive. However, AC power are
preferred due to it can provide more power and higher torque to the motor under the same cost. But if the AC mains
supply fluctuates greatly, it’s better to connect an AC voltage stabilizer between AC power and transformer. It’s also
can use DC power supplies include regulated power supplies (such as most switching supplies.) and unregulated power
supplies. When using regulated power supplies, it is important to have large current output rating to avoid problems
like current clamp, for example using 4A supply for 3A motor-drive operation. On the other hand, if unregulated
supply is used, one may use a power supply of lower current rating than that of motor (typically 50%～70% of motor
current). The reason is that the drive draws current from the power supply capacitor of the unregulated supply only
during the ON duration of the PWM cycle, but not during the OFF duration. Therefore, the average current withdrawn
from power supply is considerably less than motor current. For example, two 3A motors can be well supplied by one
power supply of 4A rating.
Multiple Drives
It is recommended to have multiple drives to share one power supply to reduce cost, if the supply has enough capacity.
To avoid cross interference, DO NOT daisy-chain the power supply input pins of the drives. (Instead, please connect
them to power supply separately.)
Selecting Supply Voltage
The power MOSFETS inside the DM860T can actually operate within +30 ~ 160VDC, including power input
fluctuation and back EMF voltage generated by motor coils during motor shaft deceleration. Higher supply voltage can
increase motor torque at higher speeds, thus helpful for avoiding losing steps. However, higher voltage may cause
bigger motor vibration at lower speed, and it may also cause over-voltage protection or even drive damage. Therefore,
it is suggested to choose only sufficiently high supply voltage for intended applications, and it is suggested to use
power supplies with theoretical output voltage of 36~70VAC, leaving room for power fluctuation and back-EMF.
7. Selecting Microstep Resolution and Drive Output Current

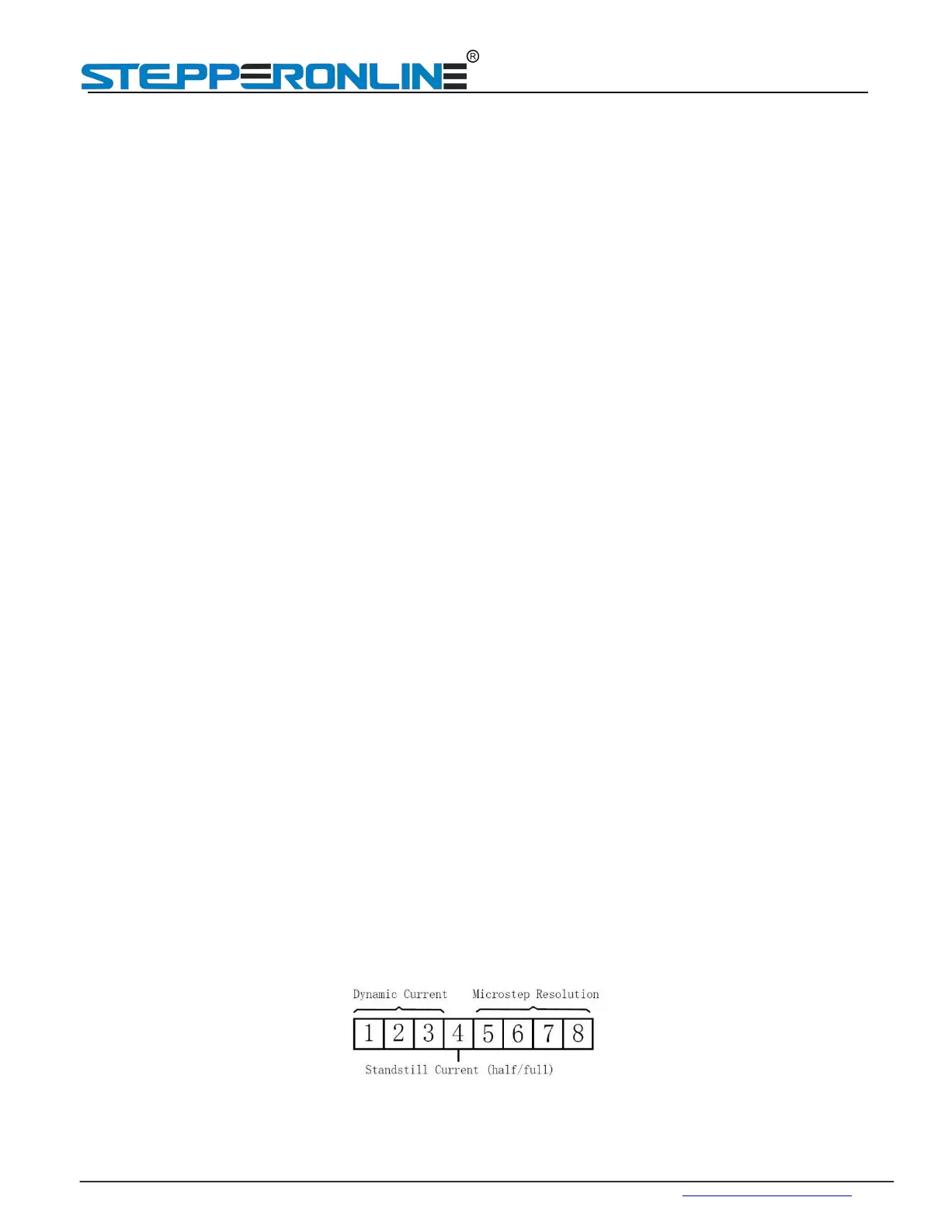

This drive uses an 8-bit DIP switch to set microstep resolution, and motor operating current, as shown below:
Microstep Resolution Selection
Microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:
