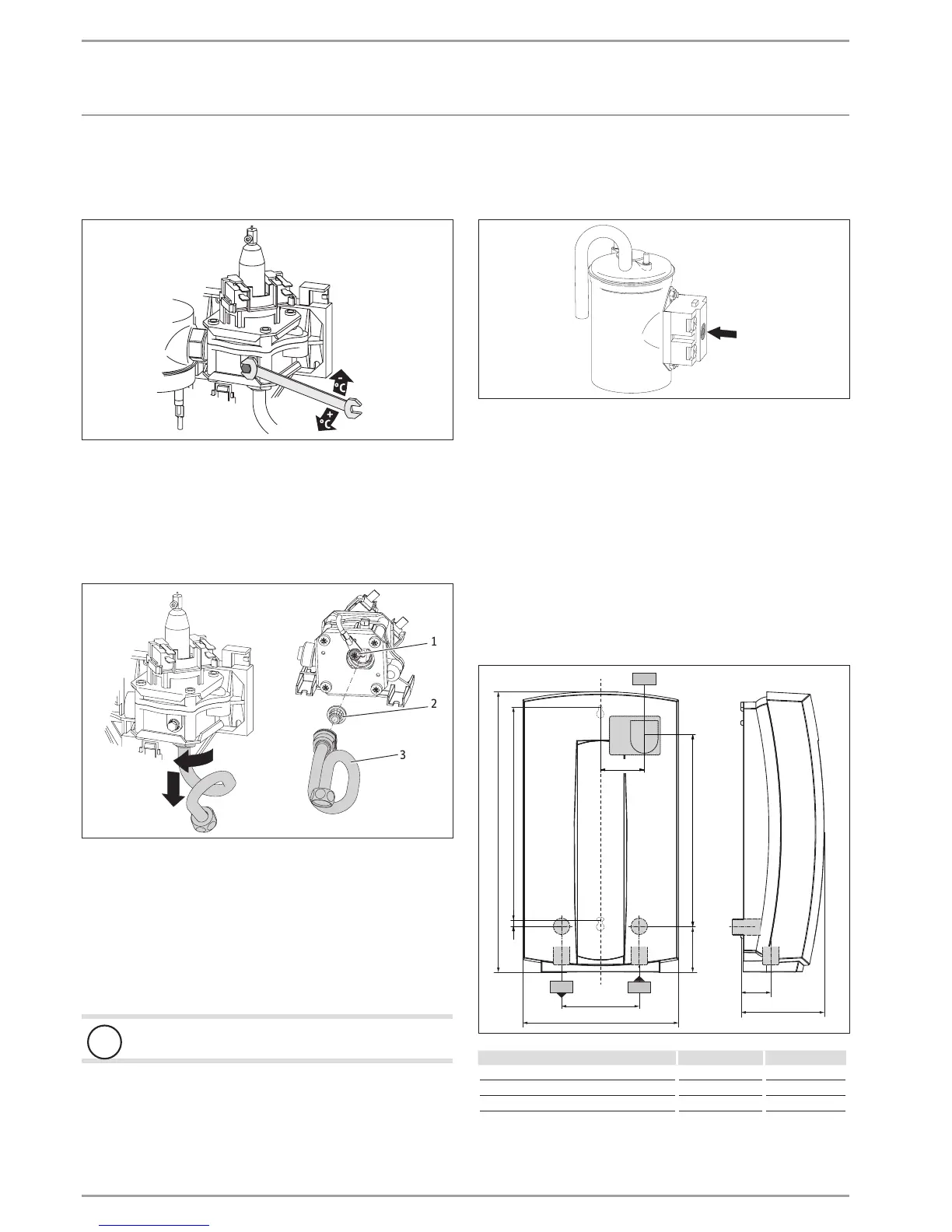

24 | DHC www.stiebel-eltron.com
INSTALLATION
Specication
Adjusting the flow rate
If the required temperature is not achieved, you can limit the flow
rate. This will give you a higher temperature.
26�02�02�0255
Set the flow rate with the adjusting screw in such a way that
the outlet temperature complies with the details in chapter
"Specification / Data table".
Clean sieve
You can clean the fitted sieve after removing the cold water con-
nection pipe.
1.
2.
90°
26�02�02�0258�
1
2
3
1 Earth screw
2 Strainer
3 Cold water connection pipe
Undo the earth screw by approx. two turns.
Loosen the cold water connection pipe by turning the pipe
in the differential pressure switch through 90° and pulling it
down.
Clean the strainer and replace if required.
Reinstall the parts in reverse order.
!
Material damage
Always secure the earth screw.
Activating the high limit safety cut-out
Once faults have been remedied, you can reactivate the high limit
safety cut-out.
26�02�02�0261
Isolate the appliance from the power supply and depressur-
ise the water line. Push in the high limit safety cut-out reset
button.
Appliance storage
Store the dismantled appliance in a room free from the risk
of frost, as water residues remaining inside the appliance can
freeze and cause damage.
15. Specification
15.1 Dimensions and connections
DHC 3, DHC 4, DHC 6, DHC 8
360
200
c06 c01
100
104
35
273
59
54
242
c01
c06
9
b02
D0000018085
b02 Entry electrical cables 1
c01 Cold water inlet Male thread G 1/2 A
c06 DHW outlet Male thread G 1/2 A
