20 | DHC www.stiebel-eltron.com
INSTALLATION
Installation

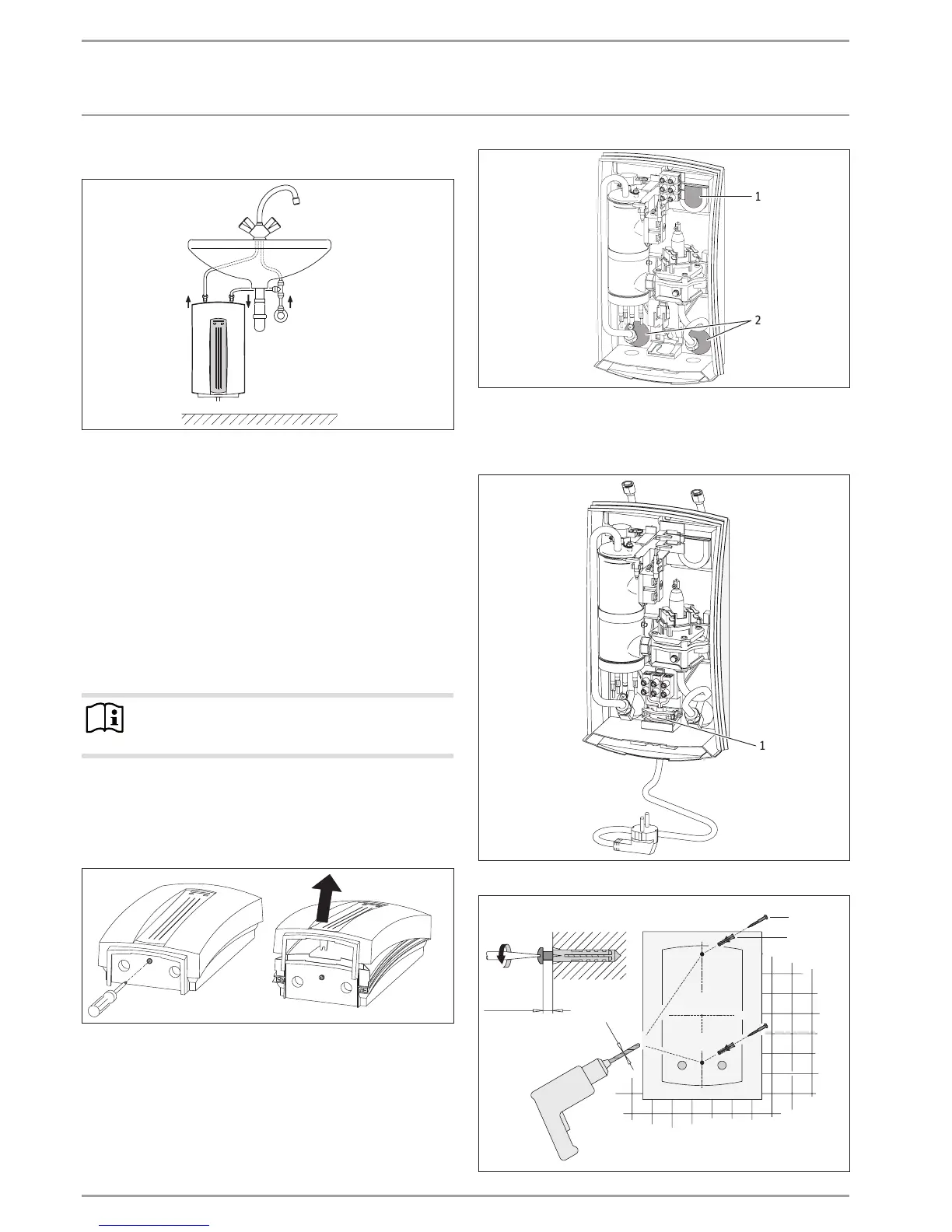

Undersink installation DHC 6 U
26�02�02�0239
9.2 Factory settings
The appliances are prepared in the delivered condition:
DHC 3, DHC 4, DHC 6, DHC 8
- Power supply from above; installation on unfinished walls
- Water connection, installation on unfinished walls
DHC 6 U
- Power supply from below, installation on finished walls
- Water connection, installation on finished walls
10. Installation
Note
Mount the appliance on the wall. The wall must pro-
vide sufficient load-bearing capacity.
This chapter describes installations in accordance with the factory
settings.
For further installation options for the DHC 3, DHC 4, DHC6 and
DHC 8 appliances, see chapter "Alternative installation options".
26�02�02�1105�
Undo the cover fixing screw by two turns.
Remove the appliance front cover towards the front.
26�02�02�1113�
1
2
DHC 3, DHC 4,
DHC 6, DHC 8
1 Power supply from above
2 Water connection on unfinished walls
Cut or break out the required entries in the appliance back
panel cleanly. If necessary, use a file.
D0000033915
DHC 6 U
1
1 Power supply from below
4,5 - 5,5
