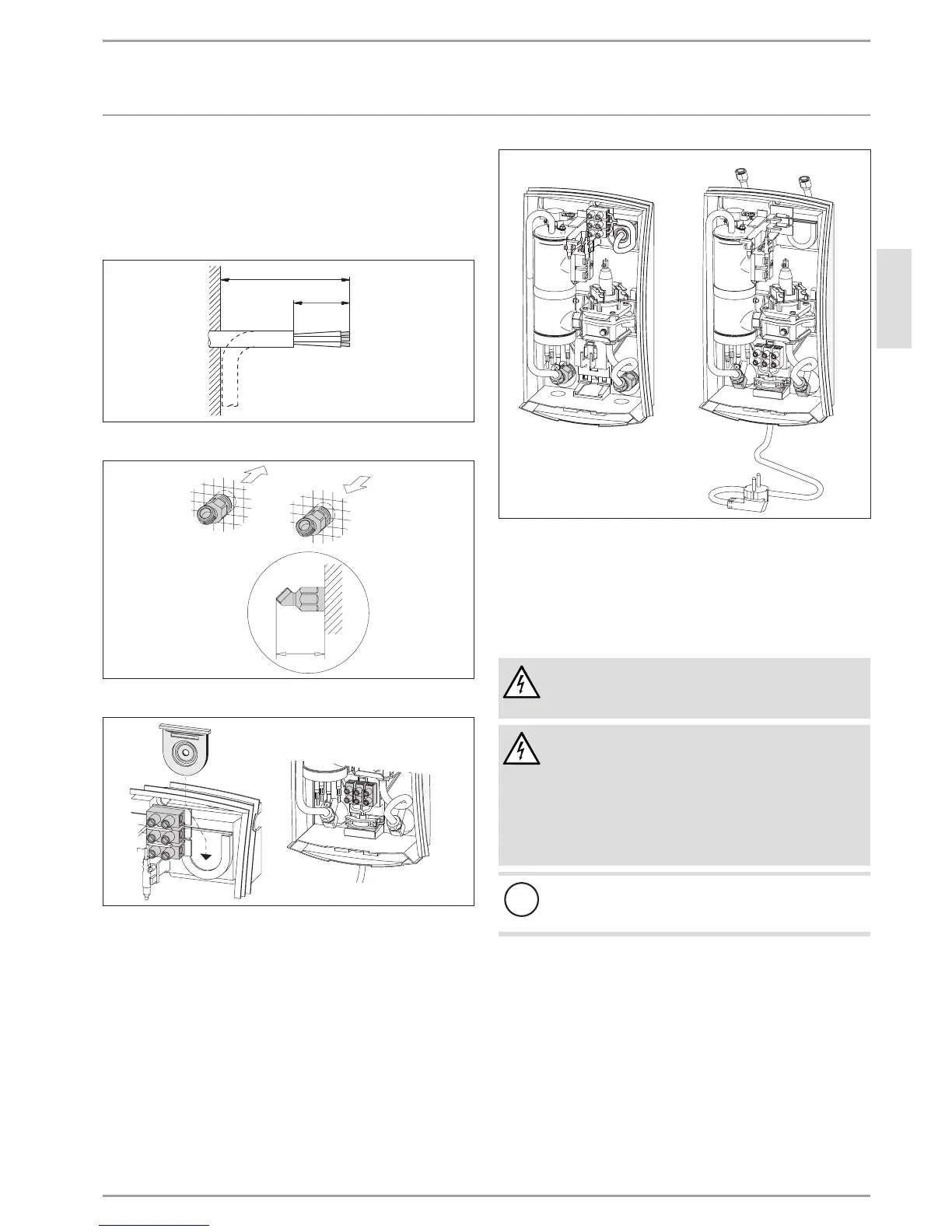

WWW.stiebel-eltron.com DHC | 21
ENGLISH
INSTALLATION
Installation
Mark out the holes for drilling with the installation template.
Drill the holes and insert suitable rawl plugs.
Note: The drill holes can be used when replacing a DHC appli-
ance. Use the supplied large washer for the upper hole.
Tighten the two fixing screws to the correct insertion depth.
DHC 3, DHC 4,
DHC 6, DHC 8
50
115
26�02�02�0252
Prepare the power cable.
46 - 50
26�02�02�0242
DHC 3, DHC 4,
DHC 6, DHC 8
Insert both connectors. Observe the insertion depth.
D0000033916
DHC 3,
DHC 4,
DHC 6,
DHC 8
Cut an opening in the cable grommet suitable for the select-
ed power cable.
Install the cable grommet in the back panel.
Route the power cable through the appliance back panel.
D0000033917
DHC 3, DHC 4,
DHC 6, DHC 8
DHC 6 U
Mount the appliance back panel over the screws and slide the
appliance back panel downwards.
DHC 3, DHC 4, DHC 6, DHC 8: Secure the connection pipes
with the supplied flat gaskets onto the connectors.
Align the appliance and tighten the fixing screws securely.
Connecting the power supply
Warning Risk of electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
Warning Risk of electrocution
Ensure that the appliance is earthed.
Connection to the power supply is only permissible in
the form of a permanent connection in conjunction with
the removable cable grommet. The appliance must be
able to be separated from the power supply by an isola-
tor that disconnects all poles with at least 3 mm contact
separation.
!
Material damage
Observe the type plate. The specified voltage must match
the mains voltage.
Connect the power cable to the mains terminal (see chapter
"Specification / Wiring diagram").
10.1 Alternative installation options only for DHC 3,
DHC 4, DHC6, DHC 8
- Power supply from above on finished walls
- Power supply from below on finished walls
- Water installation for finished walls
Cut or break out the required entries in the appliance back
panel cleanly (for positions, see chapter "Specification / Di-
mensions and connections"). If necessary, use a file.
