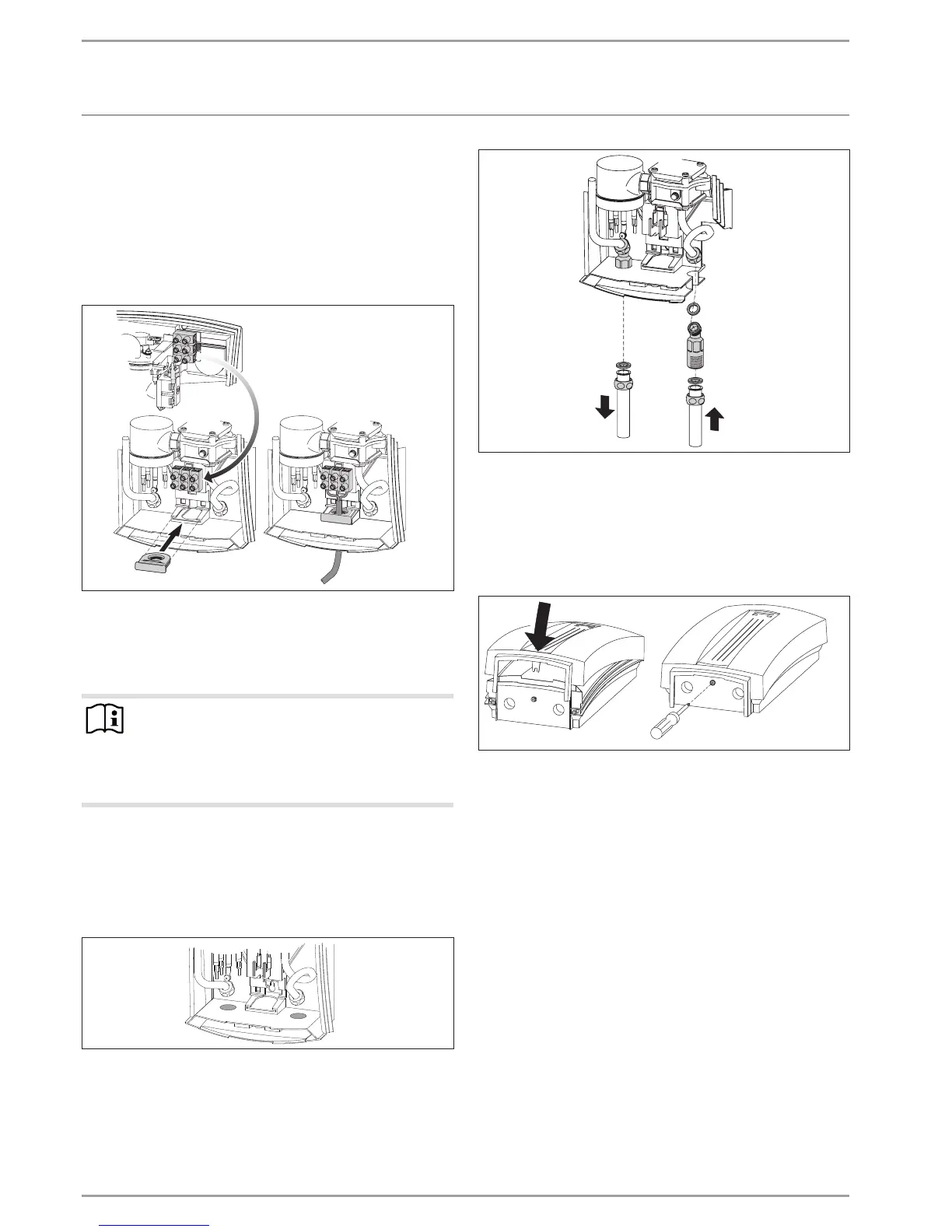

22 | DHC www.stiebel-eltron.com
INSTALLATION
Installation
Power supply from above on finished walls
Cut an opening in the cable grommet suitable for the select-
ed power cable (for positions of the connections, see chapter
"Specification").
Install the cable grommet in the back panel.
Route the power cable through the appliance back panel.
Power supply from below on finished walls
26�02�02�1110�
DHC 3, DHC 4,
DHC 6, DHC 8
Push down the locking hook that secures the mains terminal,
then remove the mains terminal.
Reposition the mains terminal in the appliance from the top
to the bottom and secure the mains terminal by sliding it
under the locking hook.
Note
The control wires must not impair the differential pres-
sure switch.
Route the control wires on the side between the
differential pressure switch and the appliance back
panel.
Cut an opening in the cable grommet suitable for the select-
ed power cable.
Install the cable grommet in the back panel.
Route the power cable through the appliance back panel.
Water installation for finished walls
26�02�02�1341
DHC 3, DHC 4,
DHC 6, DHC 8
Cut or break out the required entries in the appliance back
panel cleanly. If necessary, use a file.
DHC 3, DHC 4,
DHC 6, DHC 8
26�02�02�1108
Guide the connectors through the openings in the appliance
back panel and fit them with flat gaskets onto the appliance
connection pipes.
Fit the tap connection pipes with flat gaskets onto the
connectors.
10.2 Completing the installation
26�02�02�1106
Fit the appliance cover.
Secure the appliance cover with the screw.
