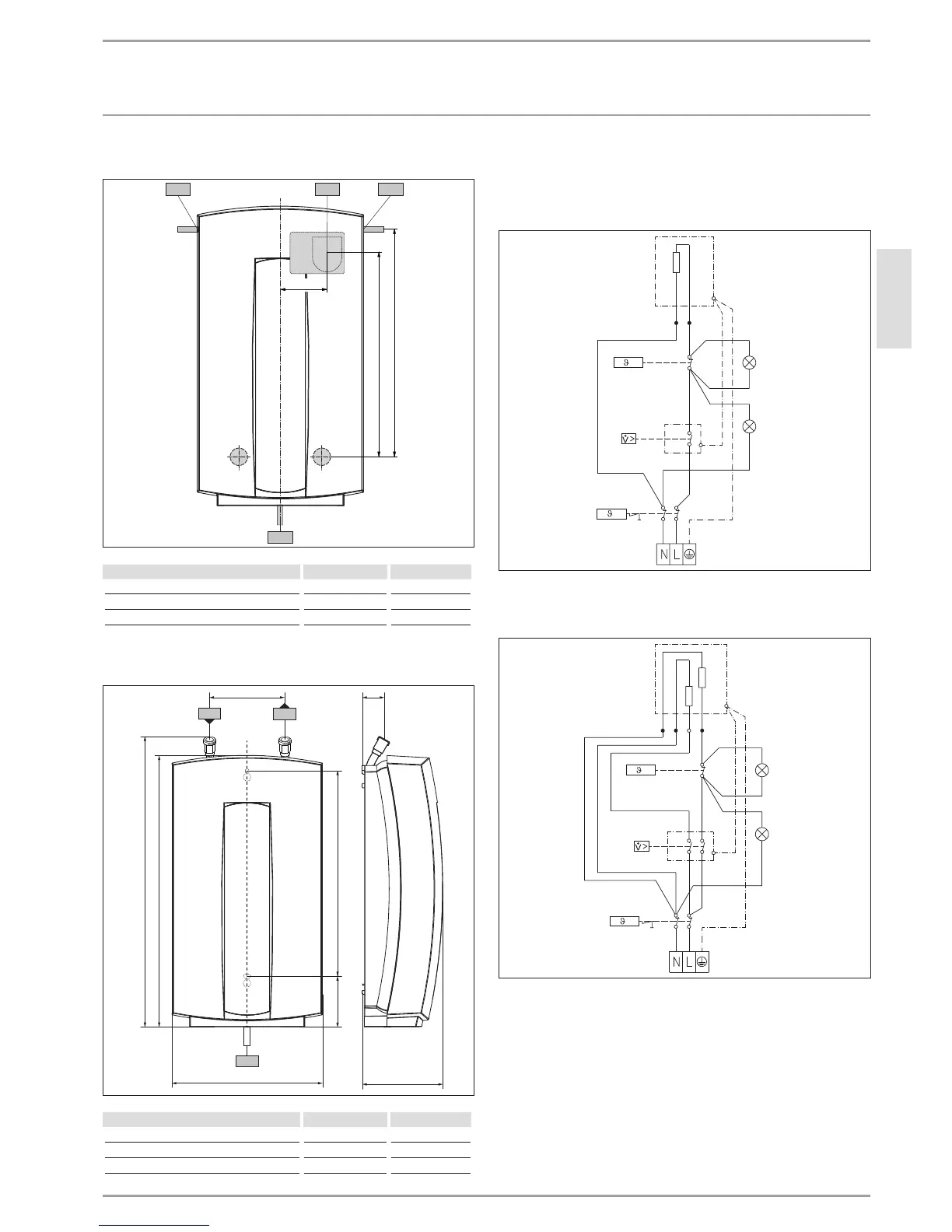

INSTALLATION
Specication
Alternative connection options DHC 3, DHC 4, DHC 6, DHC8
b03b02b03
270
b04
54
242
D0000019209
b02 Entry electrical cables 1
c01 Cold water inlet Male thread G 1/2 A
c06 DHW outlet Male thread G 1/2 A
DHC 6 U
360
385
200
104
c06 c01
100 26
c01
c06
b01
273
65
D0000033947
b01 Entry electrical cables
c01 Cold water inlet Male thread G 3/8 A
c06 DHW outlet Male thread G 3/8 A
15.2 Wiring diagram
DHC 3, DHC 4
1/N/PE ~ 220 ... 240 V
85�02�03�0006
DHC 6, DHC 8, DHC 6 U
1/N/PE ~ 220 ... 240 V
85�02�03�0007
15.3 Increasing the temperature
The following appliance temperature increases are yielded at a
mains voltage of 230V:
