pag. 18
Engine TRE 0701-TRE 0702-TRE 0801
Service manual
General information
The starting system consists of the starting motor mounted on the engine casing which transmits movement
to the ywheel and therefore, to the enging shaft.
See the relevant section [
14] for advice on resolving problems due to the malfunctioning of the star-
ting system.
The starting motor is located on the right-hand side of the engine. For maintenance operations, it is neces-
sary to dismantle the motor from the machine, observing the instructions provided in section [ 11.1].
Then proceed with the operations described below.
6. STARTING SYSTEM
1
2
2
3
5
4
6
7

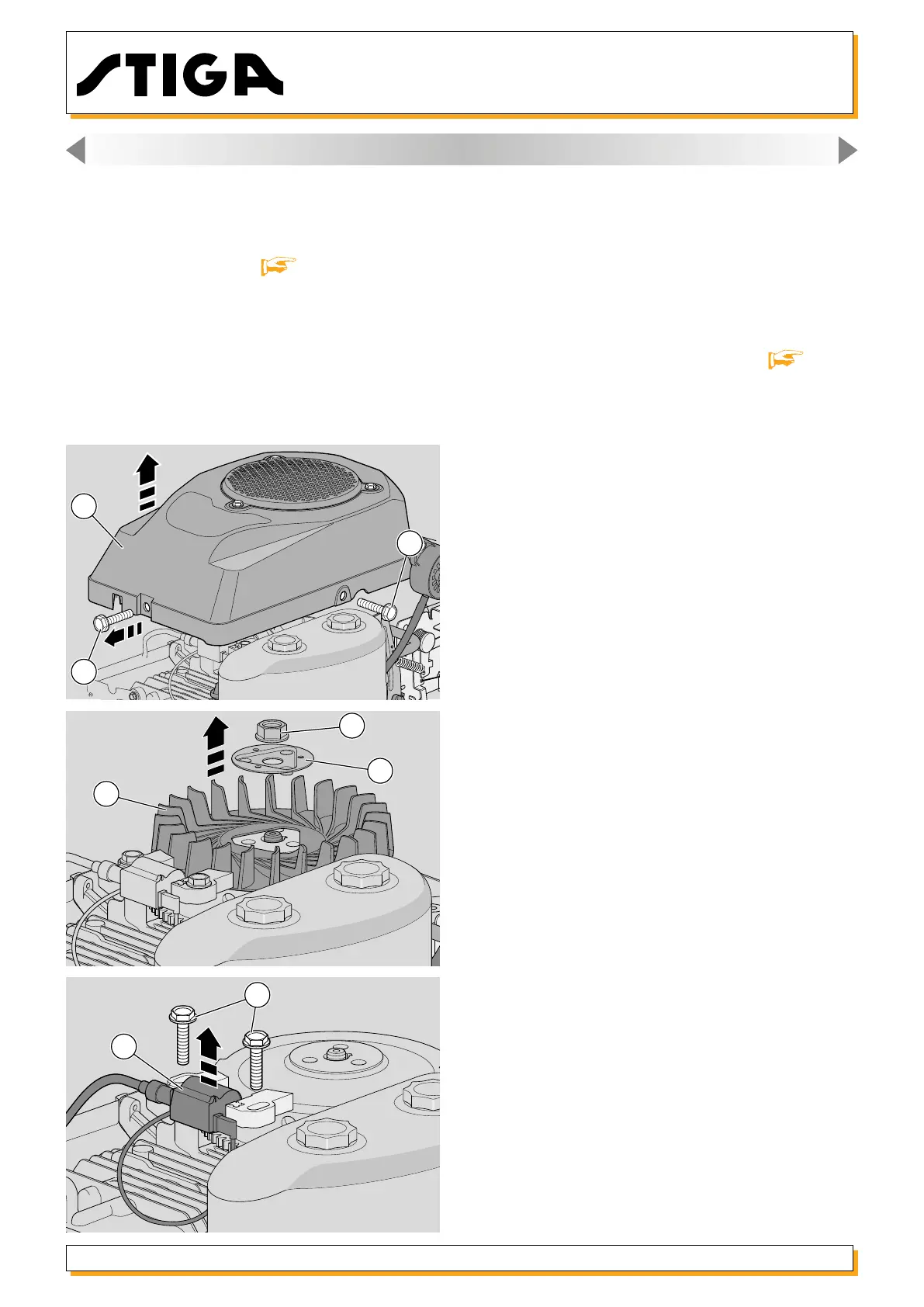

6.1. Replacement of brushes
1 - Remove the cowl (1) of the engine by removing
the three screwsi (2).
2 - By means of a pneumatic wrench, loosen the nut
(3) and remove the fan (4), retaining the ywheel
lock (5).
3 - Remove the electronic coil (6) by removing the
screws (7).
