Set Blade Pitch
Pitch is the difference in blade height from
front to back.
IMPORTANT: Level the mower deck before
setting blade pitch.
1. Set deck to highest cutting height.
2. Position mower blades so blade ends
point front to back.

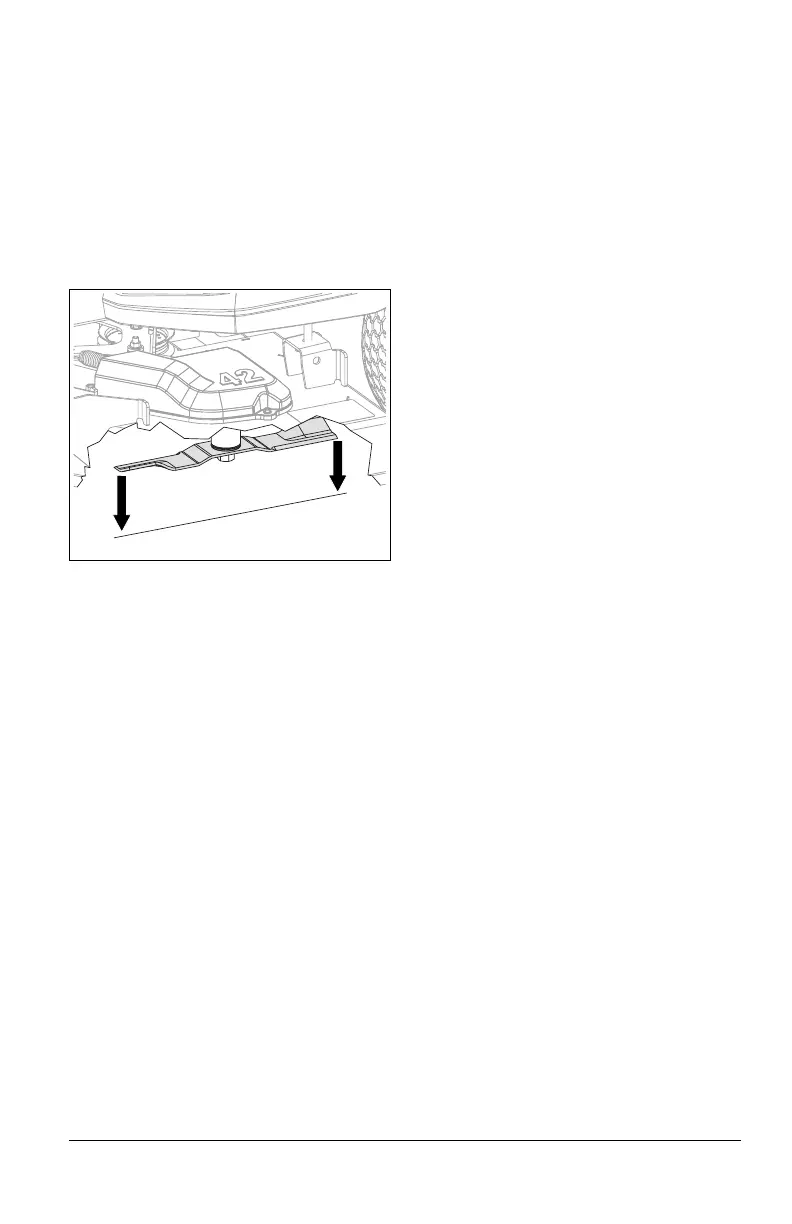

3. On both sides of the unit, measure the
distance to the ground at the front and
rear tip of the blade. See Figure 46.
• If the front tip of the blade is ± 0.635 cm
(1/4") lower than the rear, no
adjustment is needed.
• If adjustments are needed, adjust the
nylon locking flange nut on the deck
link. Tighten the nut to raise the deck;
loosen the nut to lower the deck. See
Figure 45.
