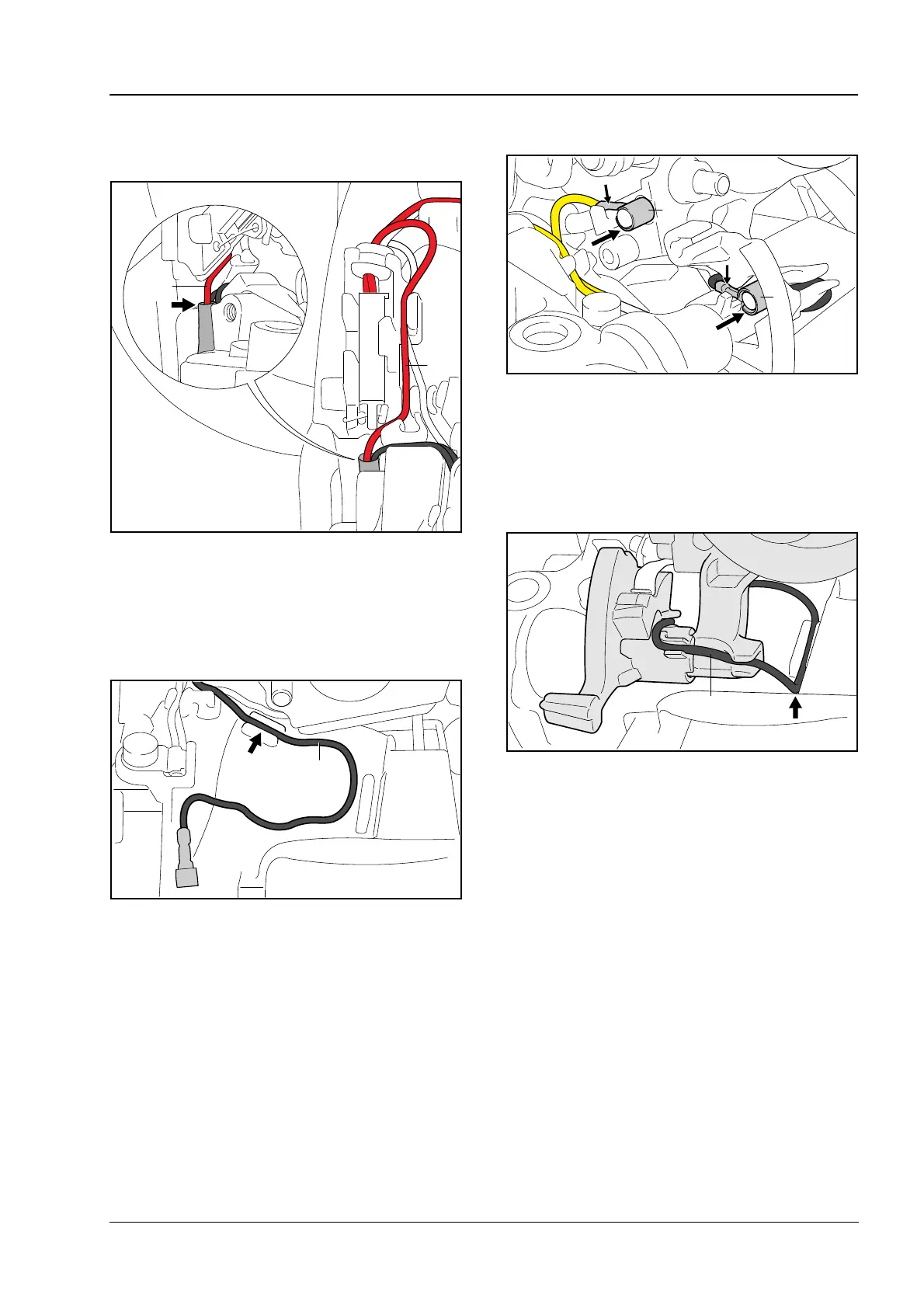

Installation at fanwheel side
. Fit insulating tape in line with mark (arrow).
. Push red wire (13) into guides.
. Install the control unit – see b 6.2.2
Installation at carburetor side
. Push black short circuit wire (14) into guides
(arrow).
. Install the filter base.
. Connect yellow ground wire terminal (1) to the
filter base – crimped side must face down.
. Connect black short circuit wire terminal (2) to
the switch shaft – crimped side must face up.
. Engage the terminals in their seats (arrows).
. Fit the contact spring and throttle rod.
. Push black short circuit wire (14) into guides on
switch shaft.
. Fit the black short circuit wire (14) in place on
the crankcase (arrow) and push it into the guide.
. Assemble all other parts.
