38 Series 4180 Powerhead

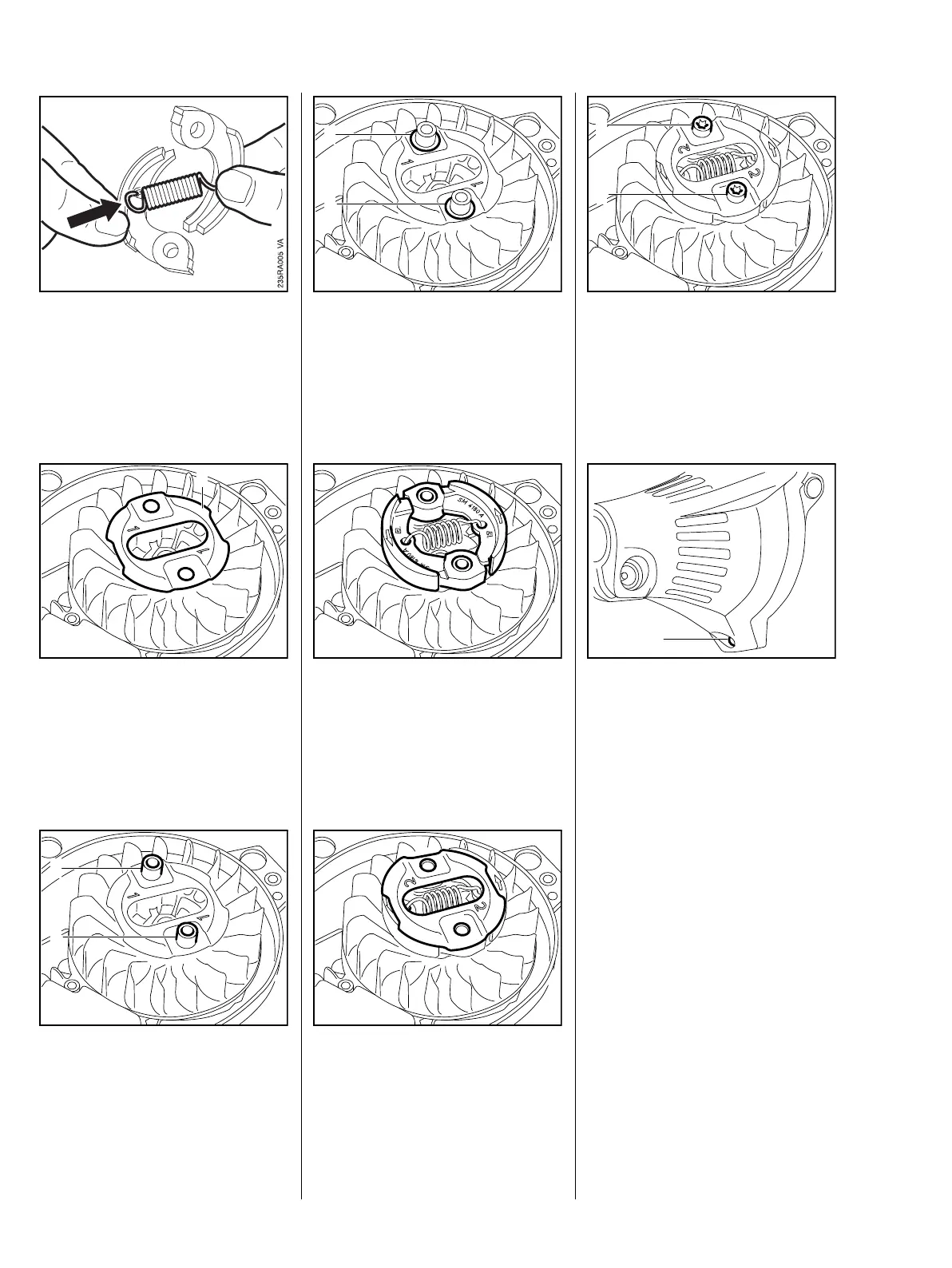

: Attach spring to clutch shoes.
: Place cover plate (1), with "1"
facing up, on the flywheel.
VA
249RA065
1
: Fit sleeves (1 and 2) on cover
plate and press into the flywheel
VA
249RA066
1
2
: Fit corrugated washers (1 and 2).
VA
249RA067
1
2
: Fit clutch shoes with lettering
facing up.
VA
249RA068
: Fit the cover plate with "2" facing
up.
VA
249RA069
: Fit screws (1 and 2) and tighten
them down firmly,
b 3.4
VA
249RA070
2
1
– Fit the fan housing on the engine.
: Tighten down the screw (1)
firmly, b 3.4
VA
249RA060
1
