English 6 Assembling the Trimmer

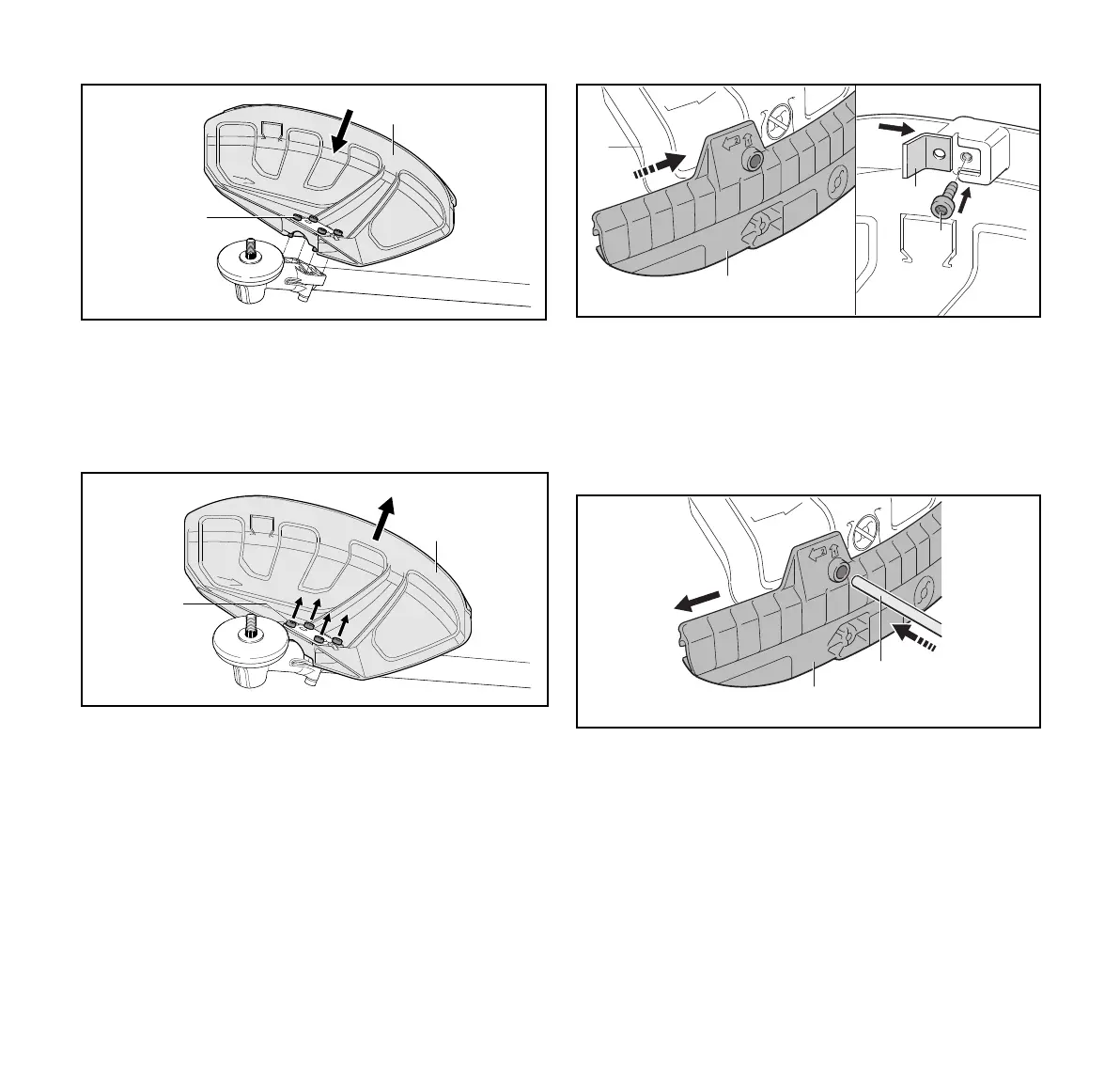

► Push the deflector (1) into the guides on the gear housing
as far as stop.
► Insert and tighten down the screws (2) firmly.
6.3.2 Removing the Deflector
► Shut off the engine.
► Take out the screws (2).
► Pull off the deflector (1).
6.4 Fitting and Removing the Skirt
6.4.1 Fitting the Skirt
► Shut off the engine.
► Slide the guide slot in the skirt (2) onto the deflector (1) –
it must snap into position.
► Push the line limiting blade (3) into the slot in the skirt (2).
► Insert and tighten down the screw (4) firmly.
6.4.2 Removing the Skirt
► Shut off the engine.
► Insert stop pin (2) into the hole in the skirt (1).
► Use the stop pin (2) to slide the skirt (1) off the deflector.
The line limiting blade (1) can be left on the skirt.
6.5 Mounting and Removing the Mowing Head
6.5.1 Mounting the Mowing Head
► Shut off the engine.
1
2
0000-GXX-3027-A0
0000-GXX-3029-A0
1
2
3
2
4
0000-GXX-3028-A1
1
1
0000-GXX-3030-A2
2
