0458-507-0121-A
5
English
3 Overview
4 Line Limiting Blade
Trims mowing line to correct length.
5Skirt
Extends universal deflector for use with a mowing head.
6 Mowing Head
The mowing head contains the mowing line.
7 Limit Stop
Protects user from flying debris and contact with the
circular saw blade and helps support the trimmer against
the wood during cutting work.
8 Circular Saw Blade
Cuts shrubs and trees.
9 Transport Guard
Helps protect user from contact with metal cutting
attachments.

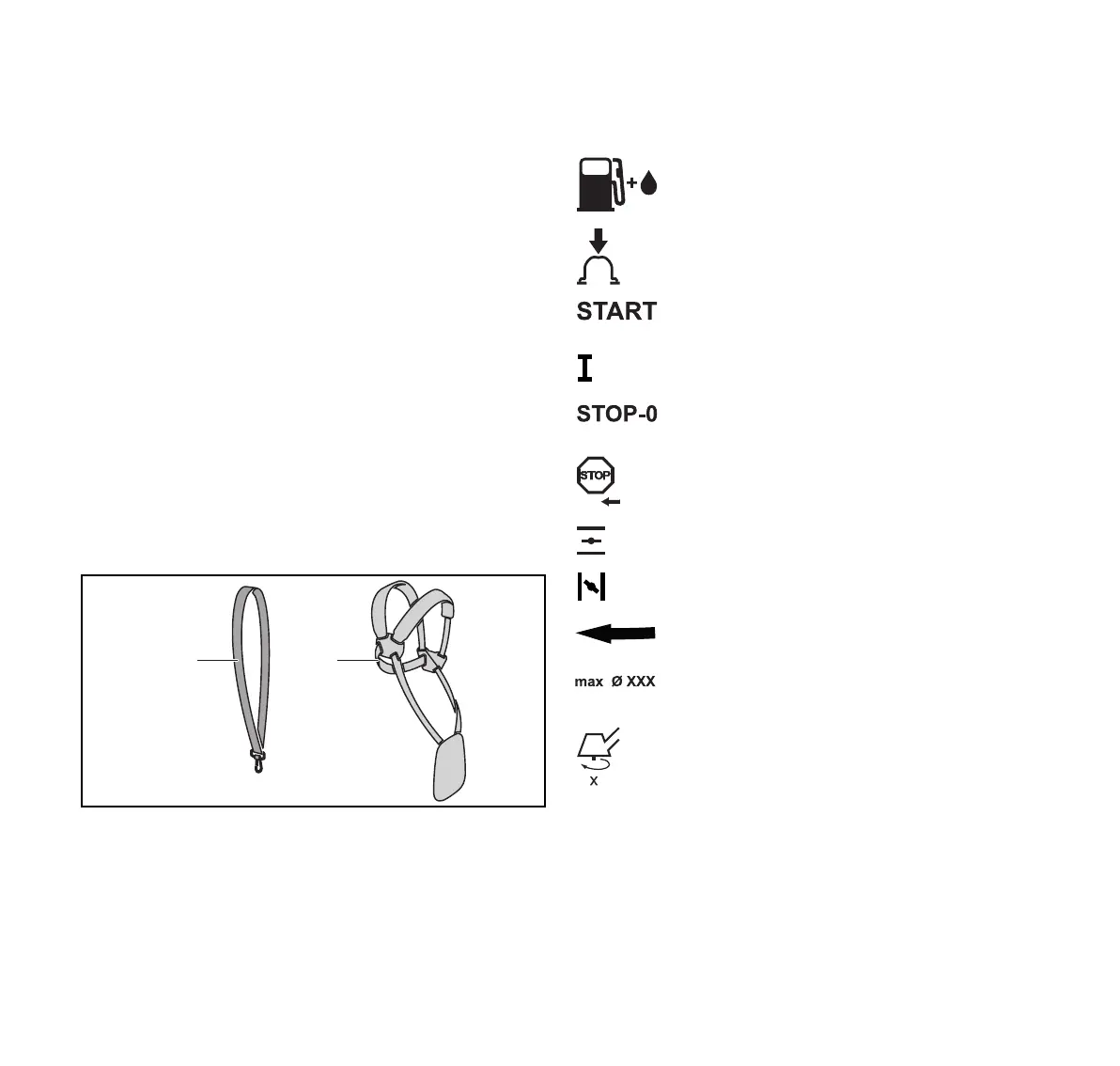

3.3 Carrying Systems
The illustrations show typical examples of carrying systems.
Approved combinations are listed in this instruction manual,
@ 20.
1 Shoulder Strap
Serves to carry the trimmer.
2 Full Harness
Serves to carry the trimmer.
3.4 Symbols
Meanings of symbols that may be on the trimmer and the
deflector:
This symbol marks the fuel tank.
This symbol denotes the manual fuel pump.
Engine is started with the slide control lever in
this position.
Engine is operated with the slide control in this
position.
Engine is stopped when the slide control is in
this position.
Slide control is moved in this direction to stop the
engine.
Engine is started with the choke lever in this position.
Engine is made ready for start with the choke lever in
this position.
This symbol shows the direction of rotation of the
cutting attachment.
This symbol shows the maximum diameter of the
cutting attachment in millimeters.
This symbol shows the rated speed of the cutting
attachment.
