English 6 Assembling the Trimmer

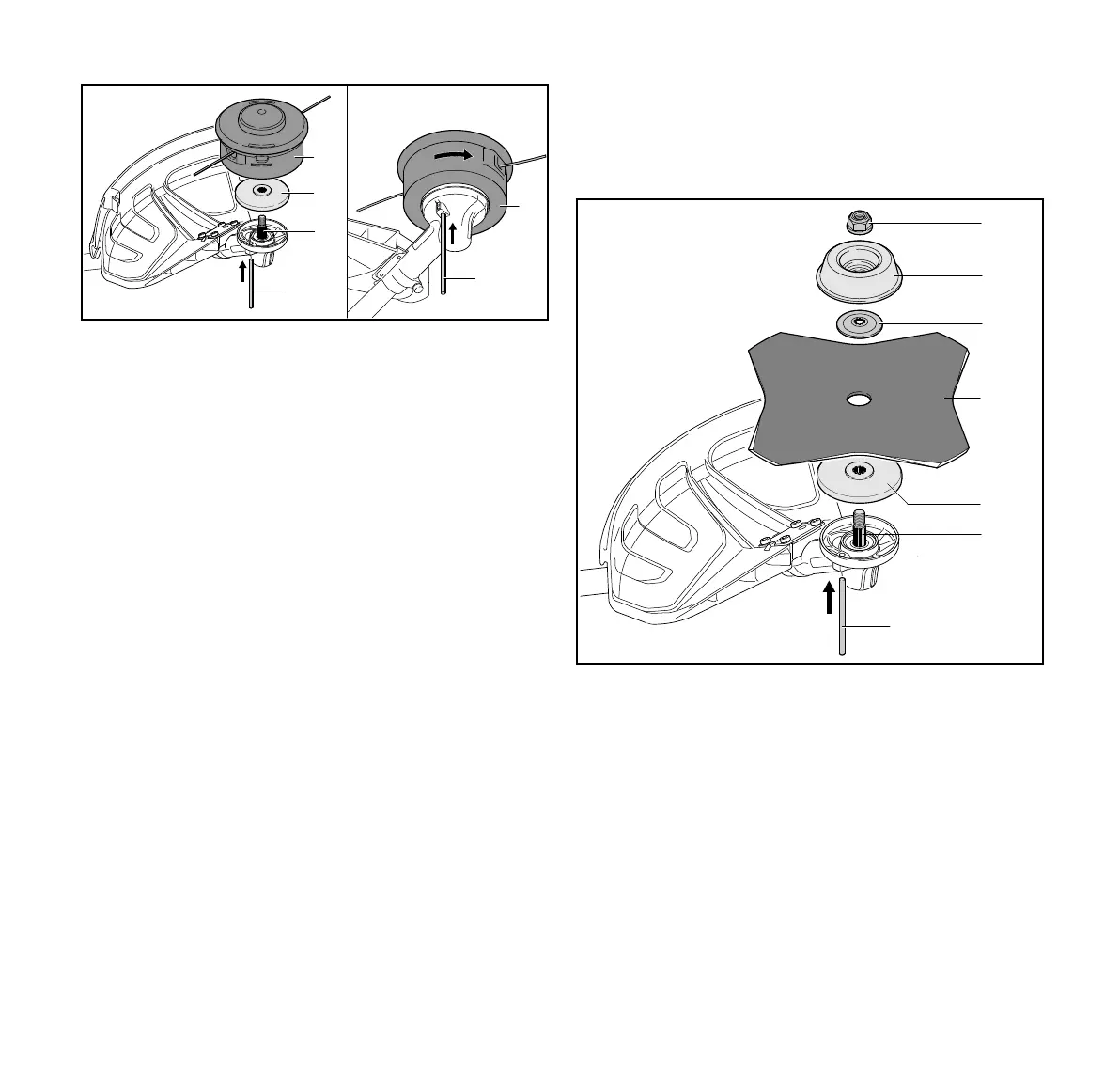

► Place the thrust plate (2) on the shaft (3) so that its smaller
diameter faces up.
► Fit the mowing head (1) on the shaft (3) and turn it
counterclockwise.
► Insert the stop pin (4) in the bore as far as stop and hold
it depressed.
► Rotate the mowing head (1) counterclockwise until the
stop pin (4) engages in position.
The shaft is now blocked.
► Tighten down the mowing head (1) firmly by hand.
► Remove the stop pin (4).
6.5.2 Removing the Mowing Head
► Shut off the engine.
► Insert the stop pin in the bore as far as stop and hold it
depressed.
► Rotate the mowing head until the stop pin engages in
position.
The shaft is now blocked.
► Unscrew the mowing head clockwise.
► Remove the thrust plate.
► Remove stop pin.
6.6 Removing and Installing Metal Cutting
Attachment
6.6.1 Mounting the Metal Cutting Attachment
► Shut off the engine.
► Place the thrust plate (5) on the shaft (6) so that its smaller
diameter faces up.
► Place the metal cutting attachment (4) on the thrust
plate (5). If you are fitting a circular saw blade or a grass
cutting blade with more than 4 cutting edges: Its cutting
edges must face in the same direction as the arrow on the
deflector.
► Place the thrust washer (3) on the metal cutting
attachment (4) so that its raised side faces up.
► Place the rider plate (2) on the thrust washer (3) so that its
closed side faces up.
► Insert the stop pin (7) in the bore as far as stop and hold
it depressed.
2
3
4
0000-GXX-3031-A0
1
4
1
1
0000-GXX-3032-A1
2
3
4
5
6
7
