3 Overview
3.1 Brushcutter
1
14
2
54
3
19
13
17
11
18
24
21
22
16
15
20
12
6
8
9
7
10
23
#

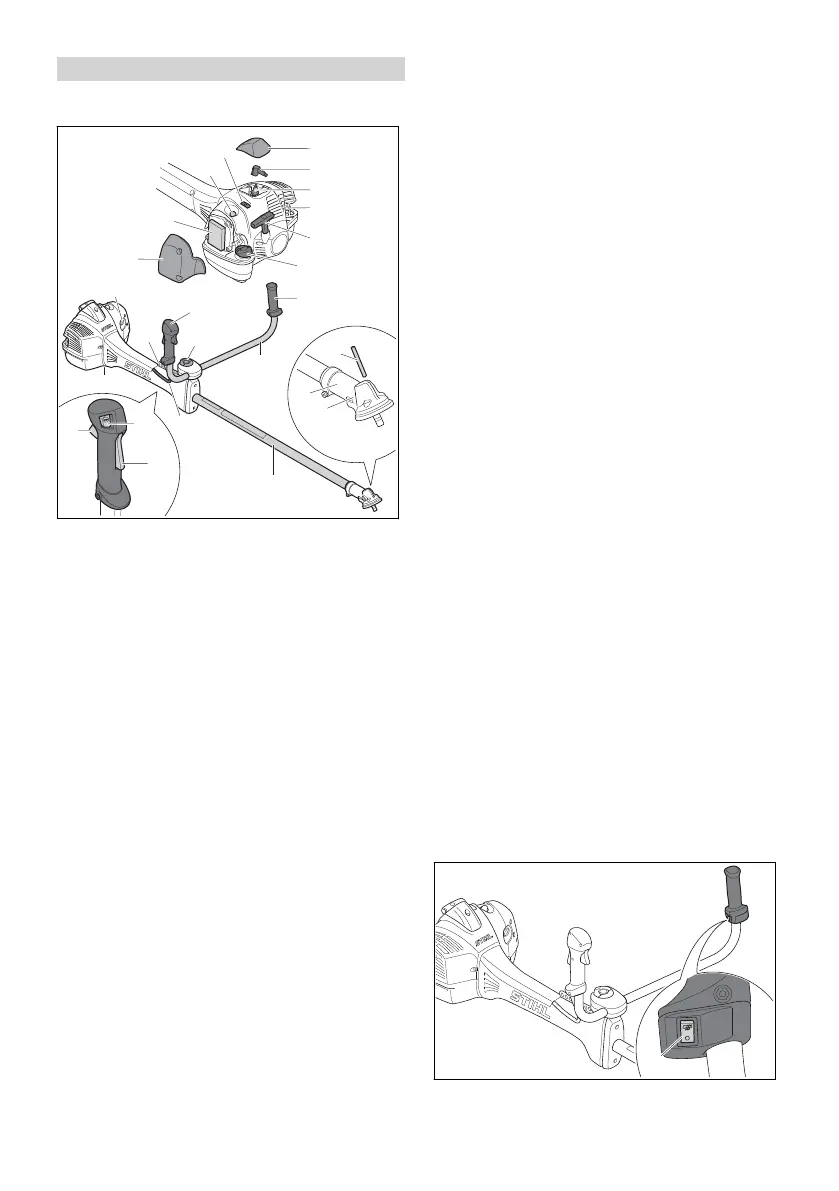

0000099852_001
1 Filter cover
Covers the air filter.
2 Air filter
The air filter filters the air entering the engine.
3 Manual fuel pump
The manual fuel pump makes it easier to start
the engine.
4 Shutter
The shutter is used to select summer or win‐
ter operating mode.
5 Cover
Covers the spark plug.
6 Spark plug boot
Connects the ignition lead to the spark plug.
7 Spark plug
Ignites the fuel-air mixture in the engine.
8 Muffler
Reduces brushcutter noise emissions.
9 Starter grip
The starter grip is used for starting the
engine.
10 Fuel tank cap
The fuel tank cap closes the fuel tank.
11 Choke lever
The choke lever helps start the engine.
12 Carrying strip
Perforated strip for suspending the carrying
system.
13 Control handle
The control handle is used for operating,
holding and controlling the brushcutter.
14 Throttle trigger
The throttle trigger is used to control the
engine speed.
15 Throttle trigger lockout
The throttle trigger lockout unlocks the throttle
trigger.
16 Stop switch
The stop switch shuts off the engine.
17 Wing screw
The wing screw secures the handlebar to the
handle support.
18 Handlebar
The handlebar connects control handle and
handle with the shaft.
19 Handle
The handle is for holding and controlling the
brushcutter.
20 Throttle cable
Connects the throttle trigger to the engine.
21 Shaft
The shaft connects all components.
22 Gear housing
The gear housing encloses the gearbox.
23 Opening for stop pin
The opening for the stop pin accommodates
the stop pin.
24 Stop pin
The stop pin blocks the shaft while a cutting
attachment is being mounted.
# Rating plate with the machine number
3.2 Equipment features
Depending on the respective market, the brush‐
cutter may have the following features:
