36
English
FS 45, FS 46

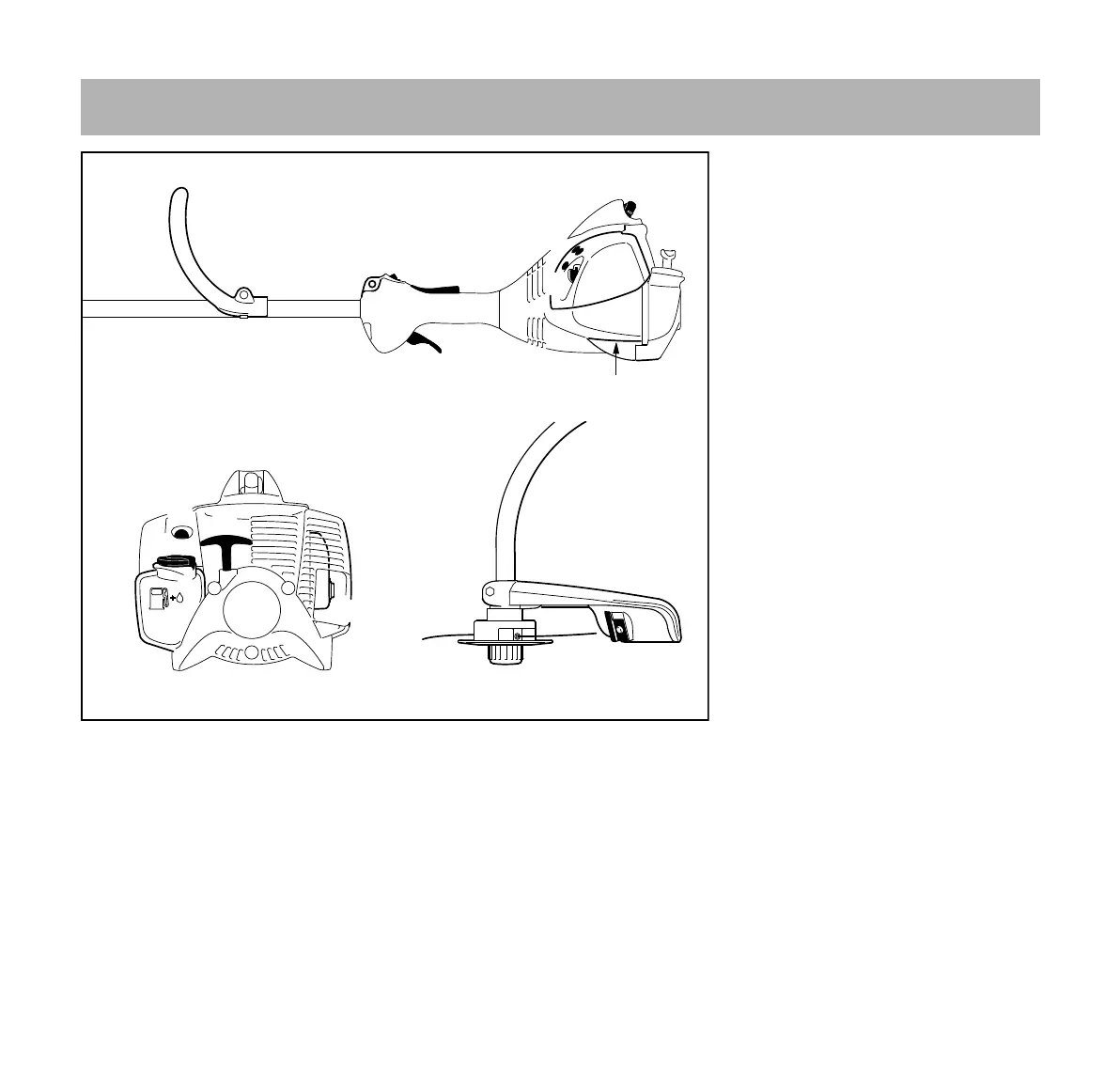

Definitions
1. Loop handle.
For easy control of machine during
cutting work.
2. Spacer.
Maintains minimum clearance
between loop handle and control
handle
3. Stop switch.
Switches the engine's ignition
system off and stops the running
engine.
4. Throttle trigger interlock.
Must be depressed before the
throttle trigger can be activated.
5. Throttle trigger.
Controls the speed of the engine.
6. Choke lever.
Eases engine starting by enriching
mixture.
7. Air filter cover.
Covers the air filter element.
8. Fuel filler cap.
For closing the fuel tank.
9. Fuel tank.
For fuel and oil mixture.
10. Machine support.
For resting machine on the ground.
11. Fuel pump.
Provides additional fuel feed for a
cold start.
12. Carburetor adjusting screw.
For tuning carburetor.
13. Starter grip.
The grip of the pull starter, which is
the device to start the engine.
14. Spark plug boot.
Connects the spark plug to the
ignition wire.
15. Muffler
(with spark arresting screen).
Attenuates exhaust noises and
diverts exhaust gases away from
operator.
16. Line limiting blade.
Metal blade on the skirt which keeps
the line of the mowing head at the
proper length.
17. Deflector.
The deflector is designed to reduce
the risk of injury from foreign
objects flung backwards toward the
operator by the cutting tool and from
contact with the cutting tool. It is not
designed to contain fragmented
metal blades.
18. Mowing head.
The nylon line mowing head for a
variety of applications.
19. Drive tube.
Device to connect the engine with
the gearbox.
Metal cutting blades may not be
used with a bent-shaft drive tube.
