FS 510 C-M, FS 560 C-M
English
22

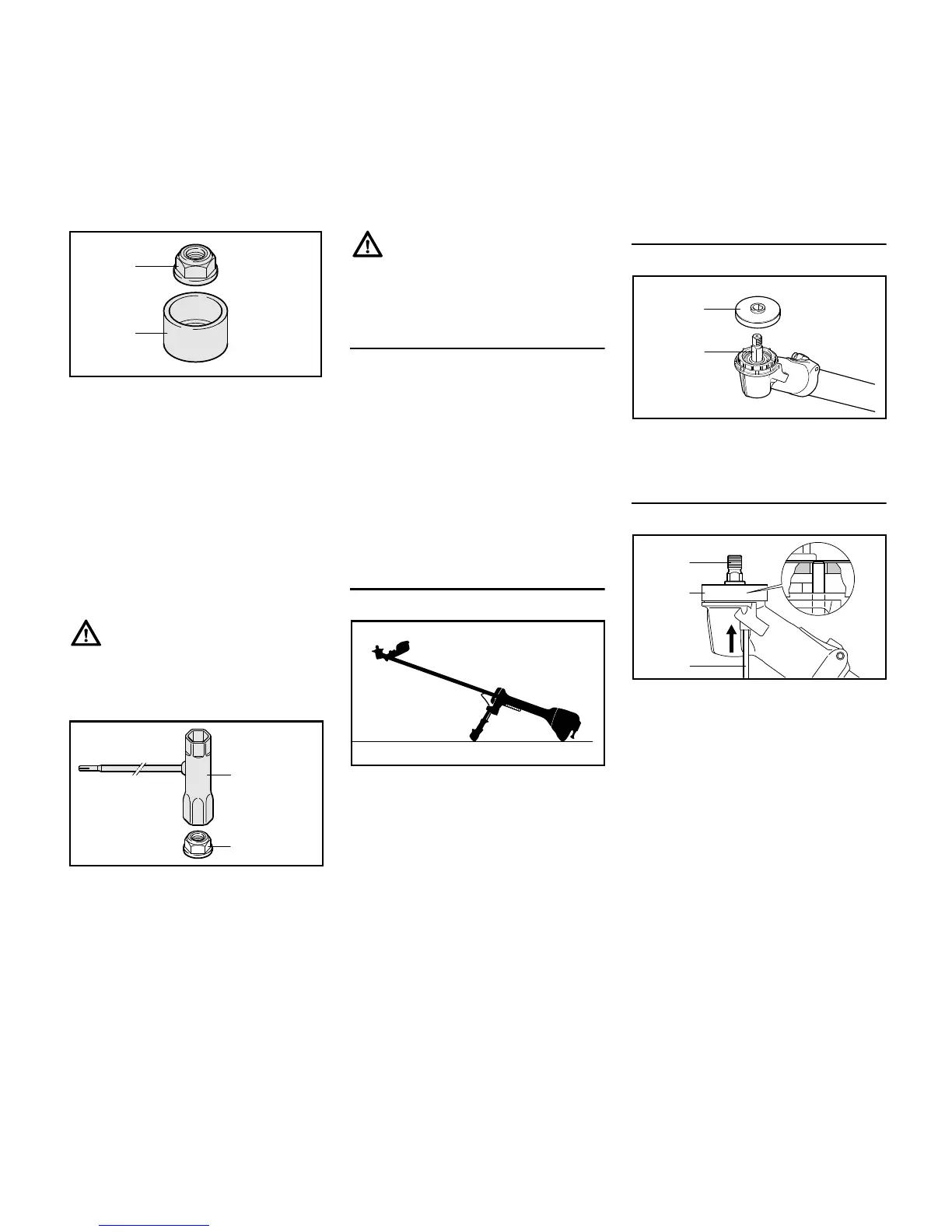

– Guard ring (3) for brush knives and
shredder blades.
Both these parts have the same
function:
– Nut (4) and thread on shaft are
protected against wear.
– Ground contact with metal cutting
attachment is minimized.
– Rider plate allows cutting
attachment to glide along close to
ground.
Always replace a worn rider plate and
guard ring in good time.
Nut and combination wrench
Metal cutting attachments are mounted
to the gearbox with the nut (4).
N Loosen and tighten the nut (4) with
the combination wrench (5).
If the mounting nut turns too freely, fit a
new one.
Cleaning the Gearbox and Cutting
Attachment Mounting Hardware
Clean the gearbox, the area surrounding
it, inside the grass shield and the cutting
attachment mounting hardware at
regular intervals. Also check for
contamination when changing the
cutting attachment and clean thoroughly
if necessary.
N Remove all cutting attachment
mounting hardware from the
gearbox for this purpose.
Preparations
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Fitting the Thrust Plate
N Slip the thrust plate (1) over the
shaft (2).
Block the drive shaft.
The shaft (2) must be blocked to install
and remove cutting attachments.
The shaft (2) can be blocked only if the
thrust plate (1) is properly fitted – the
stop pin (3) has to engage the thrust
plate.
N Insert the stop pin (3) in the bore in
the gearbox – apply slight pressure.
N Rotate shaft or cutting attachment
until the stop pin slips into position
and blocks the shaft.
The stop pin is held in position in the
gearbox by a rubber element.
