Stihl FS 510 C-M User Manual

FS 510 C-M, FS 560 C-M
English
23
N Fit or remove the cutting attachment
– see chapter on "Mounting the
Cutting Attachment".
N Remove the stop pin.
Always remove the stop pin used to
block the shaft since the drive train will
otherwise be damaged when the engine
runs.
Mounting the Cutting Attachment
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
N Depending on the cutting
attachment you are using, refer to
the appropriate chapter below:
– Mounting Mowing Heads
– Mounting Grass Cutting Blades
– Mounting Brush Knives
– Mounting Shredder Blade
or
– Mounting Circular Saw Blades
Mounting Mowing Heads
All approved mowing heads are
mounted to the gearbox in the same
way.
N Check that the deflector on the
machine is approved for mowing
heads – if not, perform the next two
steps.
N Remove grass shield with thrust
plate – if fitted.
N Remove the non-approved
deflector.
N Mount deflector for mowing heads.
N Fit grass shield together with 60-mm
diameter thrust plate.
N Block the drive shaft.

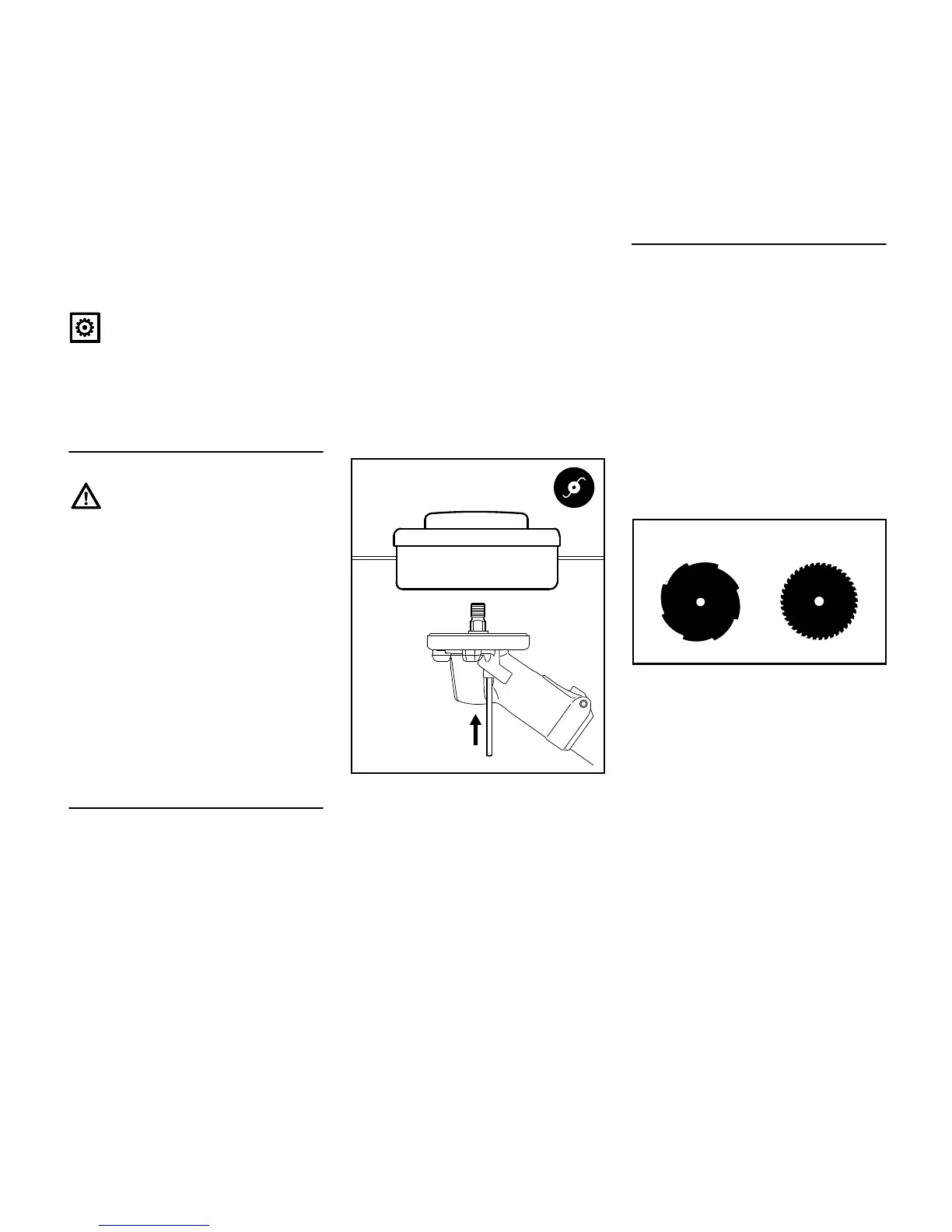

N Screw the mowing head
counterclockwise onto the shaft (1)
and tighten it down firmly.
Removing the mowing head
N Block the drive shaft.
N Unscrew the mowing head
clockwise.
Mounting Grass Cutting Blades
N Check that the deflector on the
machine is approved for grass
cutting blades – if not, perform the
next two steps.
N Remove grass shield with thrust
plate – if fitted.
N Remove the non-approved
deflector.
N Mount deflector for grass cutting
blades and brush knives.
N Fit grass shield together with 60-mm
diameter thrust plate.
The cutting edges of the grass cutting
blades 255-8 (1) and 250-40 Spezial (2)
must point clockwise.
1
002BA468 KN
1
2
681BA186 KN
