FS 510 C-M, FS 560 C-M
English
25

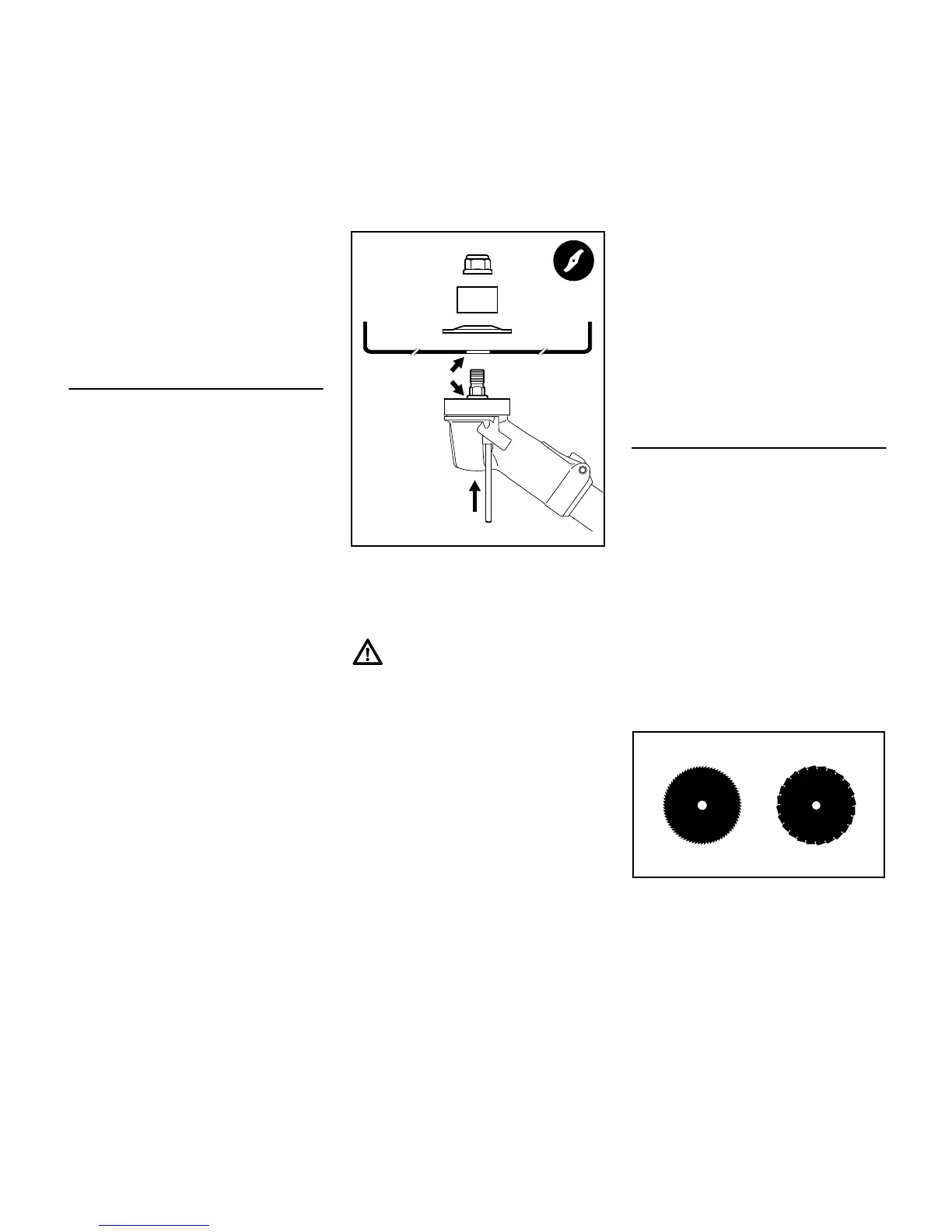

Removing the cutting attachment
N Block the drive shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the gearbox.
Mounting shredder blade 320-2
N Check that the deflector on the
machine is approved for shredder
blades if not, perform the next two
steps.
N Remove grass shield with thrust
plate – if fitted.
N Remove the non-approved
deflector.
N Mount deflector for shredder blade.
N Use the 65-mm diameter thrust
plate.
N Seal the unused tapped holes with
plugs.
N Place the shredder blade (1) in
position – cutting edges must point
clockwise and the vertical ends of
the blade must face up.
Collar (a) must locate in the cutting
attachment's mounting hole (b).
The cutting edges of the shredder blade
(1) must point upwards.
N Fit the 70-mm diameter thrust
washer (2) convex side must face
up.
N Fit the shredder blade guard ring (3)
– opening must face up.
N Block the drive shaft.
N Screw on the nut (4)
counterclockwise and tighten it
down firmly.
Removing the cutting attachment
N Block the drive shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the gearbox.
N If you intend to use a different
cutting attachment – remove the
shredder deflector.
Mounting circular saw blades 225
N Check that the stop for circular saw
blades is already mounted to the
machine – if not, perform the next
two steps.
N Remove grass shield – if fitted.
N Remove deflector – if fitted.
N Mount limit stop for circular saw
blades.
N Use the 65-mm diameter thrust
plate.
N Seal the unused tapped holes with
plugs.
The cutting edges of circular saw blades
must point clockwise.
002BA470 KN
3
4
2
1
b
a
681BA165 KN
