Stihl FS 510 C-M User Manual

FS 510 C-M, FS 560 C-M
English
38

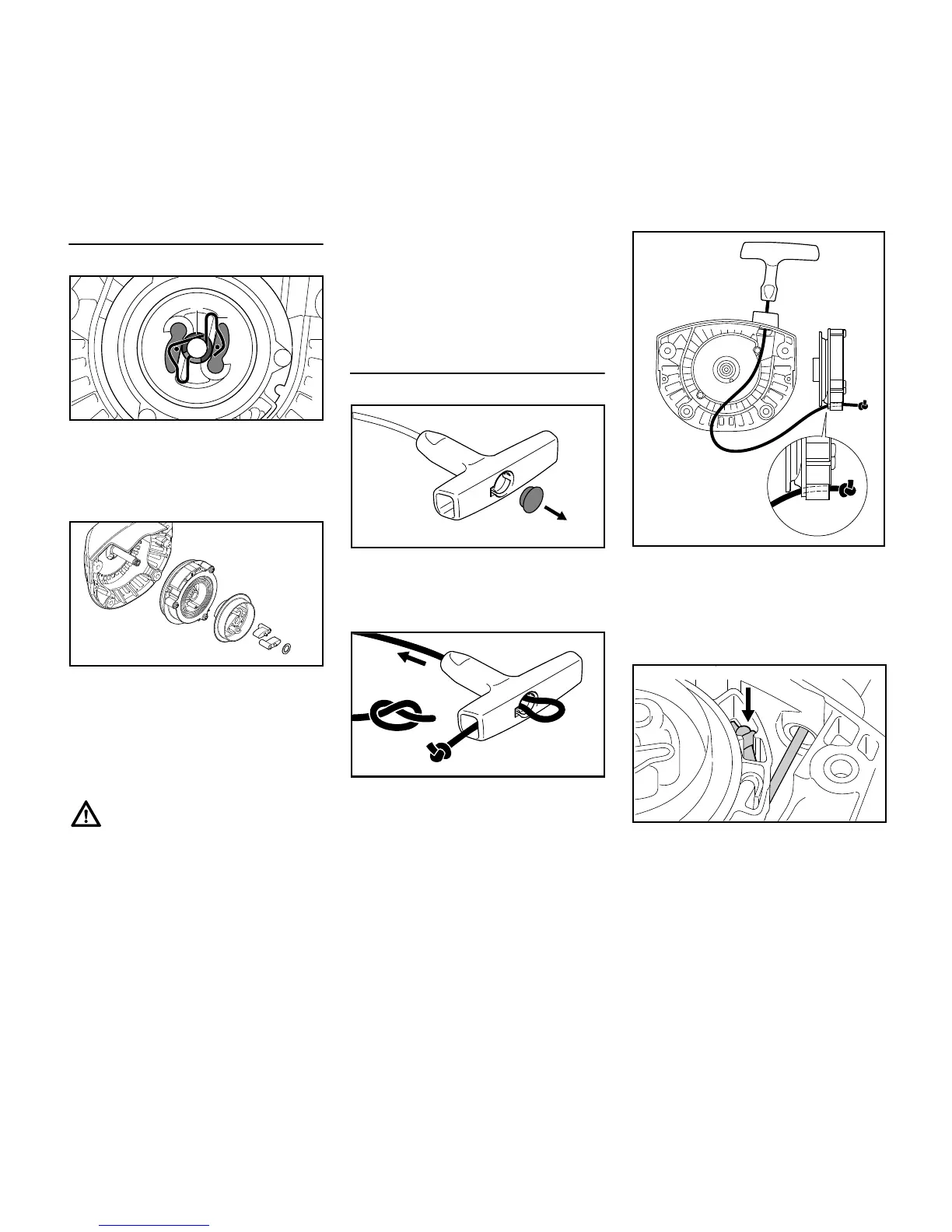

Removing the Rope Rotor
N Use a screwdriver or suitable pliers
to remove the spring clip (3) from
the starter post.
N Carefully remove the E-clip (7).
N Carefully remove the carrier (5) with
pawls (2) and washer (8) and put
them to one side so that the pawls
and washer cannot fall out.
N Pull the rope rotor (9) off the starter
post.
The rewind spring may pop out and
uncoil during this operation – take care
to avoid the risk of injury.
N If the rewind spring needs to be
replaced, continue with "Replacing
the Rewind Spring".
N If the starter rope needs to be
replaced, continue with the
following chapter-
Replacing the Starter Rope
N Pry the cap out of the starter grip.
N Remove worn rope or remaining
rope from the rotor and starter grip.
N Thread the new rope through the
starter grip and tie a simple
overhand knot in its end as shown.
N Pull the knot back into the grip.
N Refit the cap in the grip.
N Thread the rope through the top of
the guide bushing (10) and rope
rotor (9).
N Tie a simple overhand knot in the
end of the rope.
N Pull the knot into the rope rotor – if
necessary, push the knot into the
rotor's recess.
N Go to "Installing the Rope Rotor".
7
3
9926BA041 KN
5
2
9926BA042 KN
9
8
3BA020 KN
3BA038 KN
10
9926BA043 KN
9
3BA022 KN
