12 Assembling the Trimmer
For more information, @ 23.

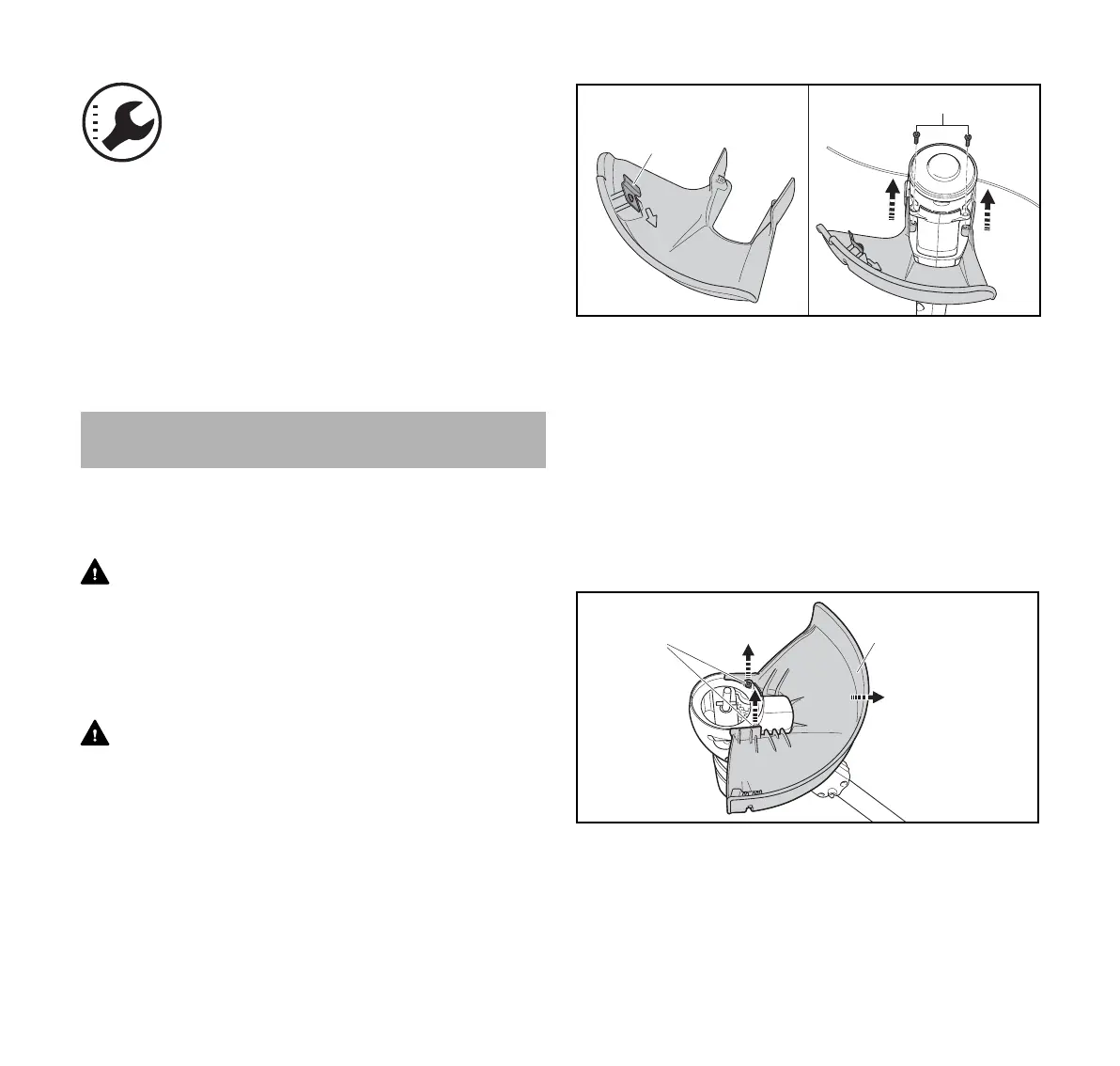

12.1 Mounting and Removing a Deflector
12.1.1 Mounting the Deflector
WARNING
To reduce the risk of injury from thrown objects or contact
with the cutting attachment, never operate the trimmer
without a properly mounted deflector. Keep bystanders at
least 50 ft. (15 m) away. When using a deflector designed
for use with a PolyCut moving head, you must change the
deflector before mounting the mowing head.
WARNING
The cutting attachment and deflector must be an approved
combination. Use only an approved combination of cutting
attachment and deflector to maximize cutting performance
and reduce the risk of serious personal injury from thrown
objects or contact with the cutting attachment, @ 25.1.
To mount the deflector:
► Switch off the trimmer, @ 15.2.
► Remove the battery, @ 14.2.
► Push the deflector (2) into the guides on the housing until
it stops.
The deflector must be tight against the housing.
► Insert and tighten the screws (3).
The line limiting blade (1) comes mounted in the deflector
and may not be removed.
12.1.2 Removing a Deflector
To remove a deflector:
► Switch off the power tool, @ 15.2.
► Remove the battery, @ 14.2.
► Remove the screws (2).
► Remove the deflector (1)
If the LED flashes red: there is no electric contact
between the battery and the charger. Remove
and reinsert the battery.
or
The battery has a malfunction and must be
replaced. Check the LEDs on the battery. Do not
use or charge a battery if its LEDs indicate a
malfunction.
or
The charger has a malfunction. Have it checked
by an authorized STIHL servicing dealer before
use.
