Stihl HSE 61

33HSE 61, HSE 71, HSE 81

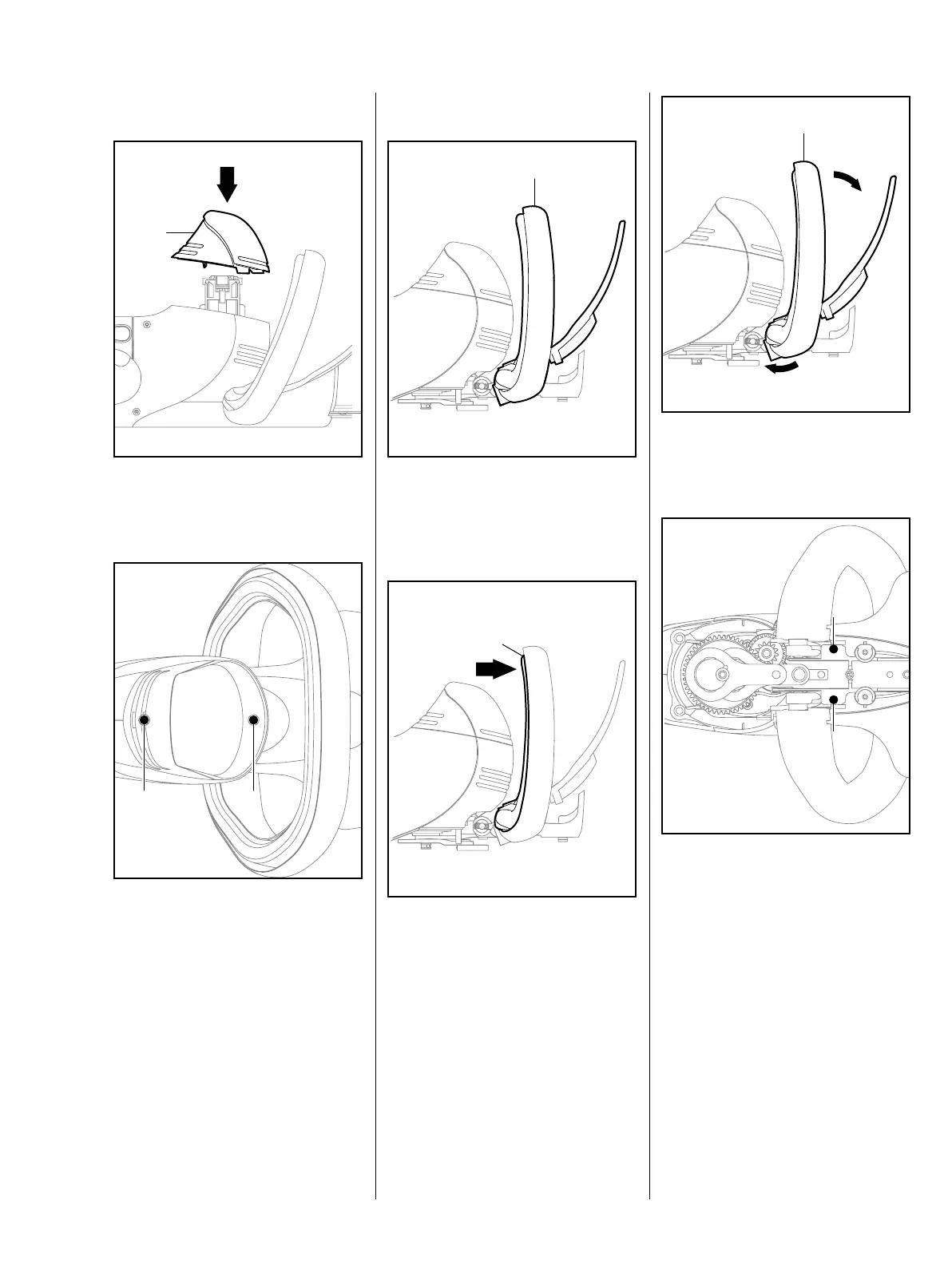

6.2.4 Fitting the top cover
: Place the cover (1) on the
housing.
: Fit the screws (1) (1.2 Nm).
1
11
6.2.5 Mounting the loop handle
: Position the loop handle (1) with
hand guard against the housing
as shown in the illustration.
: Squeeze the loop handle (1) and
hold it in that position.
1
1
: Tilt the loop handle (1) forwards
and fit it in position.
: Fit the screws (1) (1.5 Nm).
– Mount the cutting attachment,
b 4.1.2.
1
1
1
