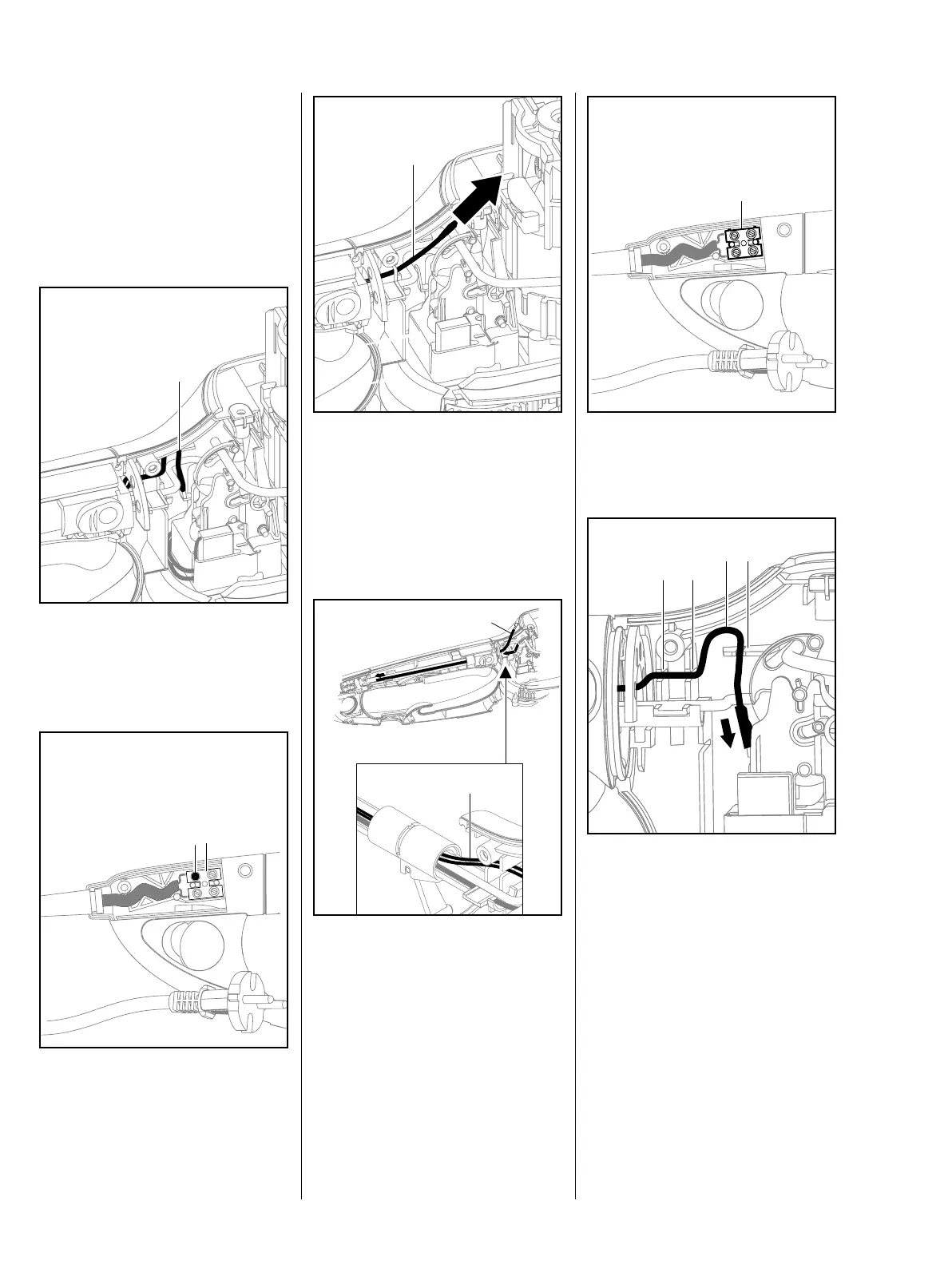

8 HSE 61, HSE 71, HSE 81
3.4 Wiring – Switch –
Capacitor
3.4.1 Removing the blue
connecting wire
Open the housing, b 6.1.
Open the rear handle, b 6.4.1.
: Disconnect the blue wire (1) from
the switch.
: Take the wire out of the slots.
: Loosen the screw (2) and remove
the blue wire from the terminal
block (1).
1
21
: Pull the blue wire (1) out of the
rear handle in the direction of the
arrow.
3.4.2 Installing the blue
connecting wire
: Thread the blue wire (1) through
the rear handle, from front to rear
in the direction of the arrow.
Make sure the blue wire (1) is
positioned as shown in the
illustration.
1
1
1
: Connect the blue wire to the
terminal block (1).
: Pull the blue wire (1) forwards
and push it into the slots (A).
Connect the wire (1) to the
switch.
Close the rear handle, b 6.4.4.
Close the housing, b 6.2.
1
A
A
1
A
