Stihl HTA 135 User Manual

0458-698-8621-A
4
English 3 Main Parts

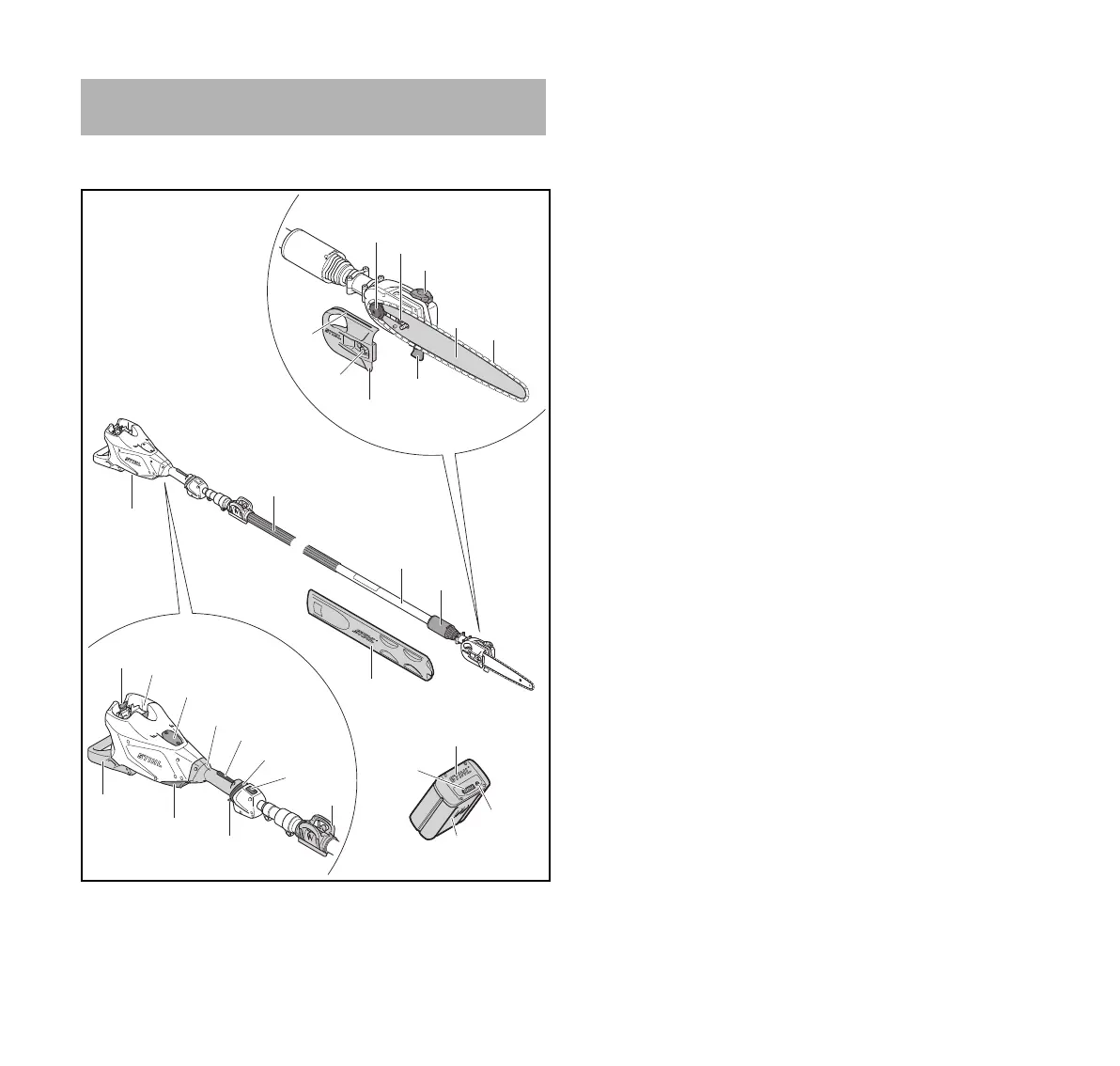

3.1 STIHL HTA 135 Pole Pruner and Battery
1 Front Handle
Handle for the operator's front hand.
2Drive Tube
Pole pruner shaft.
3 Clamping Nut
For adjusting the length of the drive tube.
4 Chain Sprocket
Drives the saw chain.
5 Side Chain Tensioner
Permits precise adjustment of saw chain tension.
6 Oil Filler Cap
For closing the oil tank.
7 Guide Bar
Supports and guides the saw chain.
8Saw Chain
Toothed cutting tool consisting of cutters, tie straps and
drive links.
9Hook
Helps hold the pole pruner steady against the branch
during cutting.
10 Chain Sprocket Cover
Covers the chain sprocket.
11 Nut
Tightens the chain sprocket cover.
12 Limbing Sight
Helps the operator position the bar and chain for the cut.
13 Chain Scabbard
Covers the guide bar and saw chain to reduce the risk of
injury from inadvertent contact during transportation and
storage.
14 Battery LEDs
Indicate the battery's state of charge and display error
messages regarding potential malfunctions in the battery
or power tool.
15 Battery
Supplies electrical power to the motor.
3Main Parts
13
27
26
25
#
1
17
24
18
20
19
21
22
23
4
5
6
2
3
10
9
7
8
11
12
15
16
#
14
0000097168_003

Stihl HTA 135 Specifications

General

Battery Type	Lithium-Ion
Bar Length	12 in.
Rated Voltage	36 V
Power Source	Battery
Maximum Cutting Diameter	10 in.
Chain Pitch	1/4"
Recommended Battery	AP 300 S
Run Time	Up to 45 minutes
Shaft Length	1.8 m
STIHL OILOMATIC® saw chain type	Picco Micro 3 (PM3)
Chain Oil Tank Capacity	100 ml
