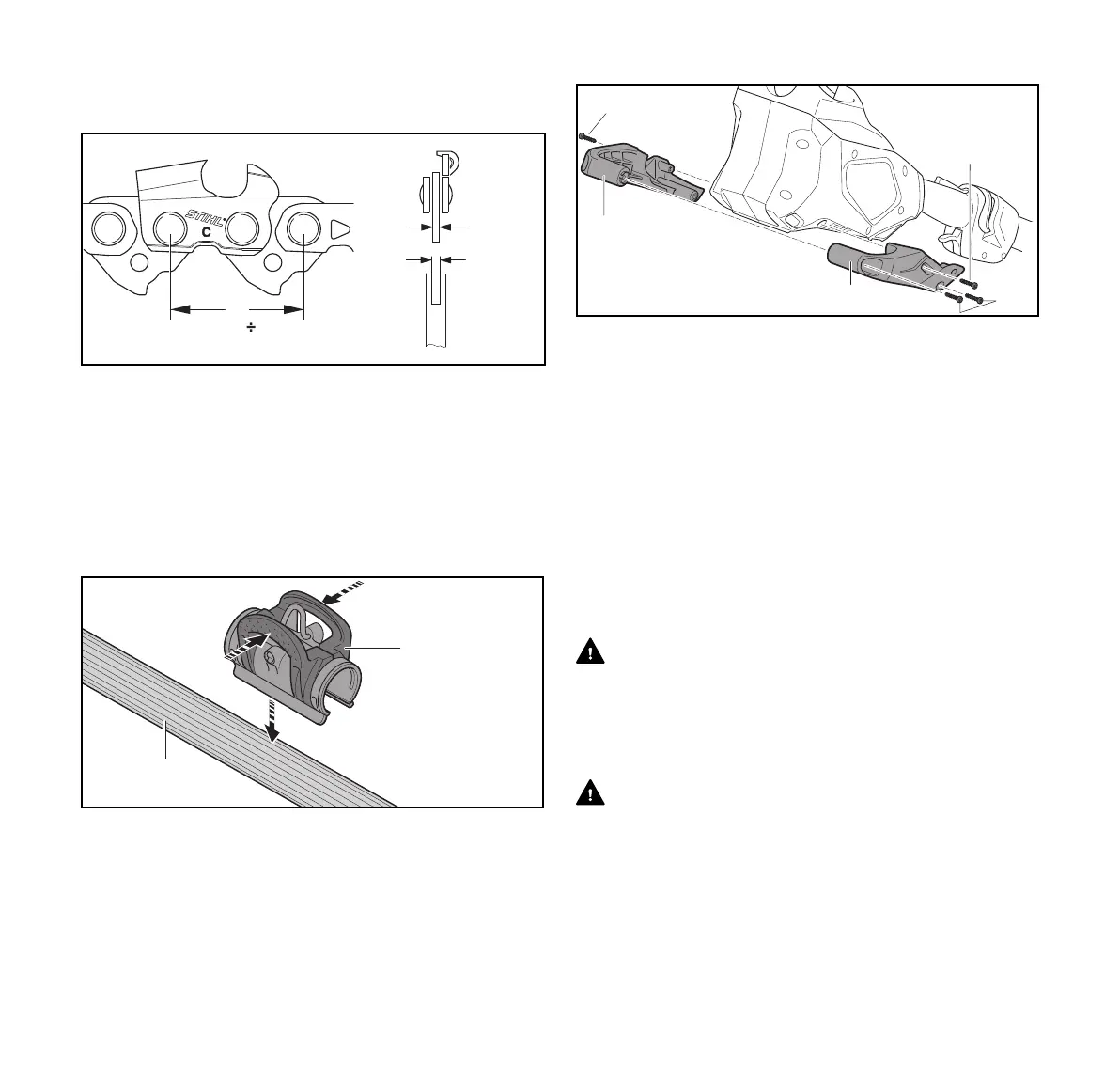

English 14 Assembling the Pole Pruner
A cutting attachment consists of the chain, guide bar and
chain sprocket.
– The pitch (t) of the chain (1), must match the pitch of the
chain sprocket.
– The drive link gauge (2) of the chain must match the
groove width of the guide bar (3).
14.4 Mounting the Harness Clip
► Switch off the pole pruner, @ 16.2.
► Remove the battery, @ 15.2.
► Press the harness clip (1) together and place it on the
front handle (2).
14.5 Mounting the Machine Support
► Switch off the pole pruner, @ 16.2.
► Remove the battery, @ 15.2.
► Position the left half of the machine support (1) against the
side of the motor housing.
► Insert screw (2).
► Position the right half of the machine support (3) against
the side of the motor housing.
► Insert screw (5).
► Insert and tighten screws (4).
► Tighten screws (2) and (5).
14.6 Mounting and Removing the Guide Bar and
Chain
14.6.1 Mounting the Guide Bar and Chain
WARNING
Make sure the battery is removed before starting assembly.
Never operate your pole pruner without a properly mounted
guide bar and chain, @ 6.5. Use only guide bar and chain
combinations expressly recommended or approved by
STIHL, @ 6.4.
WARNING
The chain has many sharp cutters. If they contact your flesh,
they will cut you, even if the chain is not moving, @ 6.4.
Always wear heavy-duty work gloves when mounting or
otherwise handling the chain, @ 6.3.
1
2
3
a
t = a 2
0000-GXX-1445-A0
1
2
0000097169_001
5
2
1
4
3
0000097173_001

Stihl HTA 135 Specifications

General

Battery Type	Lithium-Ion
Bar Length	12 in.
Rated Voltage	36 V
Power Source	Battery
Maximum Cutting Diameter	10 in.
Chain Pitch	1/4"
Recommended Battery	AP 300 S
Run Time	Up to 45 minutes
Shaft Length	1.8 m
STIHL OILOMATIC® saw chain type	Picco Micro 3 (PM3)
Chain Oil Tank Capacity	100 ml
