0458-698-8621-A
5
English
4 Safety Symbols on the Products
16 Push Button
Activates the battery's LEDs.
17 Locking Levers
Secure the battery in the battery compartment.
18 Battery Compartment
Holds the battery.
19 Mounting Recess Cover
1
Covers the mounting area for a Smart Connector 2 A.
20 Control Handle
Handle for the operator's rear hand.
21 Trigger Switch Lockout
Must be depressed to allow activation of the trigger
switch.
22 Retaining Latch
For switching the pole pruner on.
23 LED
Indicate the unit's power level.
24 Harness Clip
For connecting a harness to the pole pruner.
25 Trigger Switch
Activates the saw chain when depressed.
26 Air Filter
Filters the air drawn into the motor.
27 Machine Support
For resting the pole pruner on the ground.
# Rating Plate
Contains electrical information and the product's serial
number.
4.1 Pole Pruner

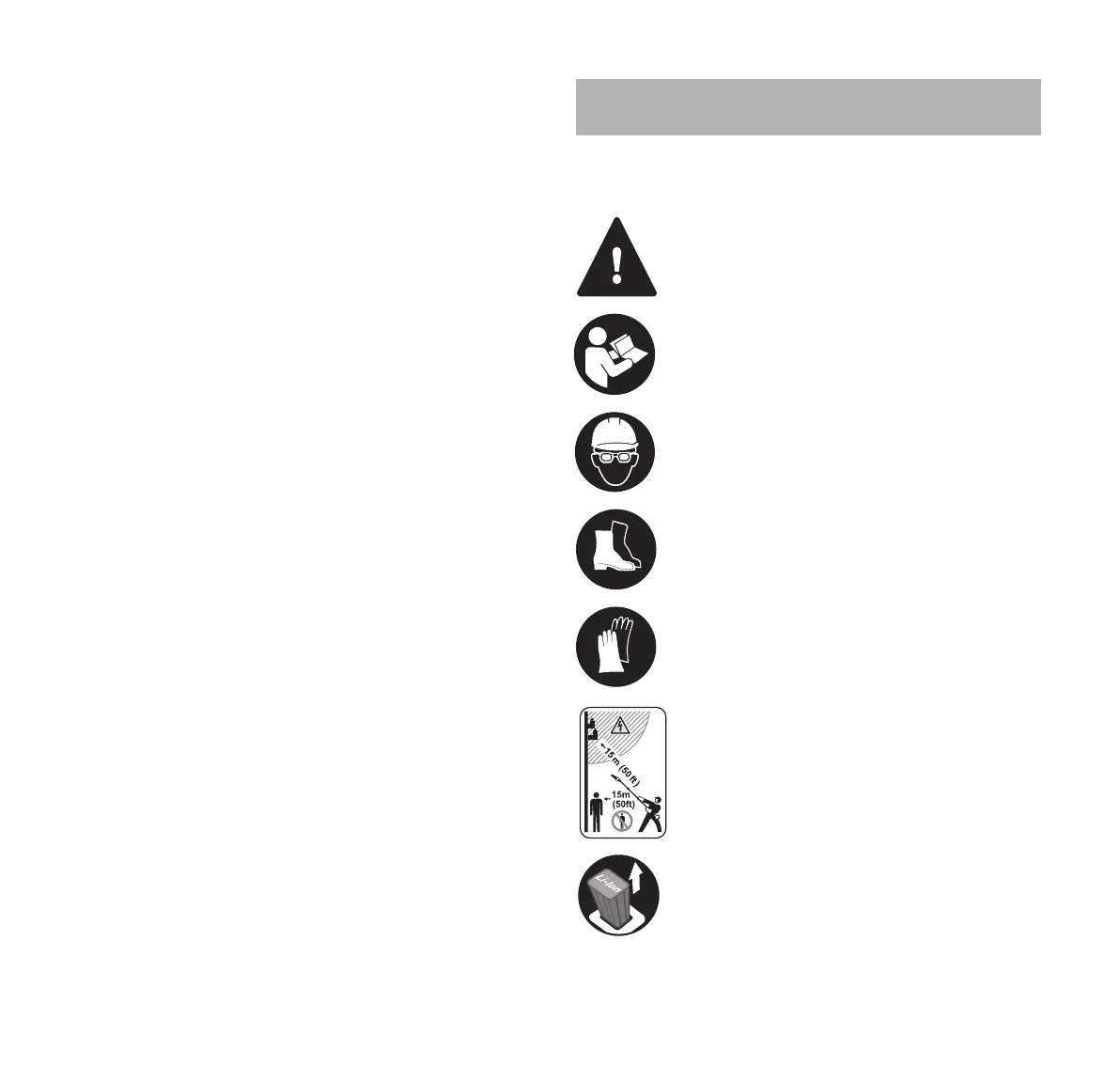

The following safety symbols are found on the pole pruner.
1
Remove the mounting recess cover only to install a Smart
Connector 2 A. Store it safely for later reinstallation. Always use the
power tool with the mounting recess cover in place or with the Smart
Connector 2 A mounted.
4 Safety Symbols on the Products
To reduce the risk of injury, follow the specified
safety precautions.
Read and follow all safety precautions in the
instruction manual. Improper use can lead to
serious or fatal personal injury or property
damage.
To reduce the risk of eye and head injury, always
wear proper eye protection and an approved
protective helmet, @ 6.3.
Wear sturdy boots with non-slip soles. Steel-
toed safety boots are recommended, @ 6.3.
Always wear non-slip, heavy-duty work gloves
(e.g. made of leather or other wear resistant
material) when handling the machine or saw
chain, @ 6.3.
To reduce the risk of personal injury, keep
bystanders at least 50 ft. (15 m) away and
maintain a clearance of at least 50 ft. (15 m)
between the pole pruner (including any
branches it is contacting) and any electrical line
carrying live current, @ 6.5.4.
To reduce the risk of injury or property damage
from unintended activation, remove the battery
any time the pole pruner is not in use, @ 6.4.
