Stihl MS 194 C User Manual

MS 194 C
English
36
Check operation of chain brake
Before starting work: Run engine at idle
speed, engage the chain brake (push
hand guard toward bar nose).
Accelerate up to full throttle for no more
than 3 seconds – the chain must not
rotate. The hand guard must be free
from dirt and move freely.
Chain brake maintenance
The chain brake is subject to normal
wear. It is necessary to have it serviced
and maintained regularly by trained
personnel, such as your STIHL servicing
dealer, at the following intervals:

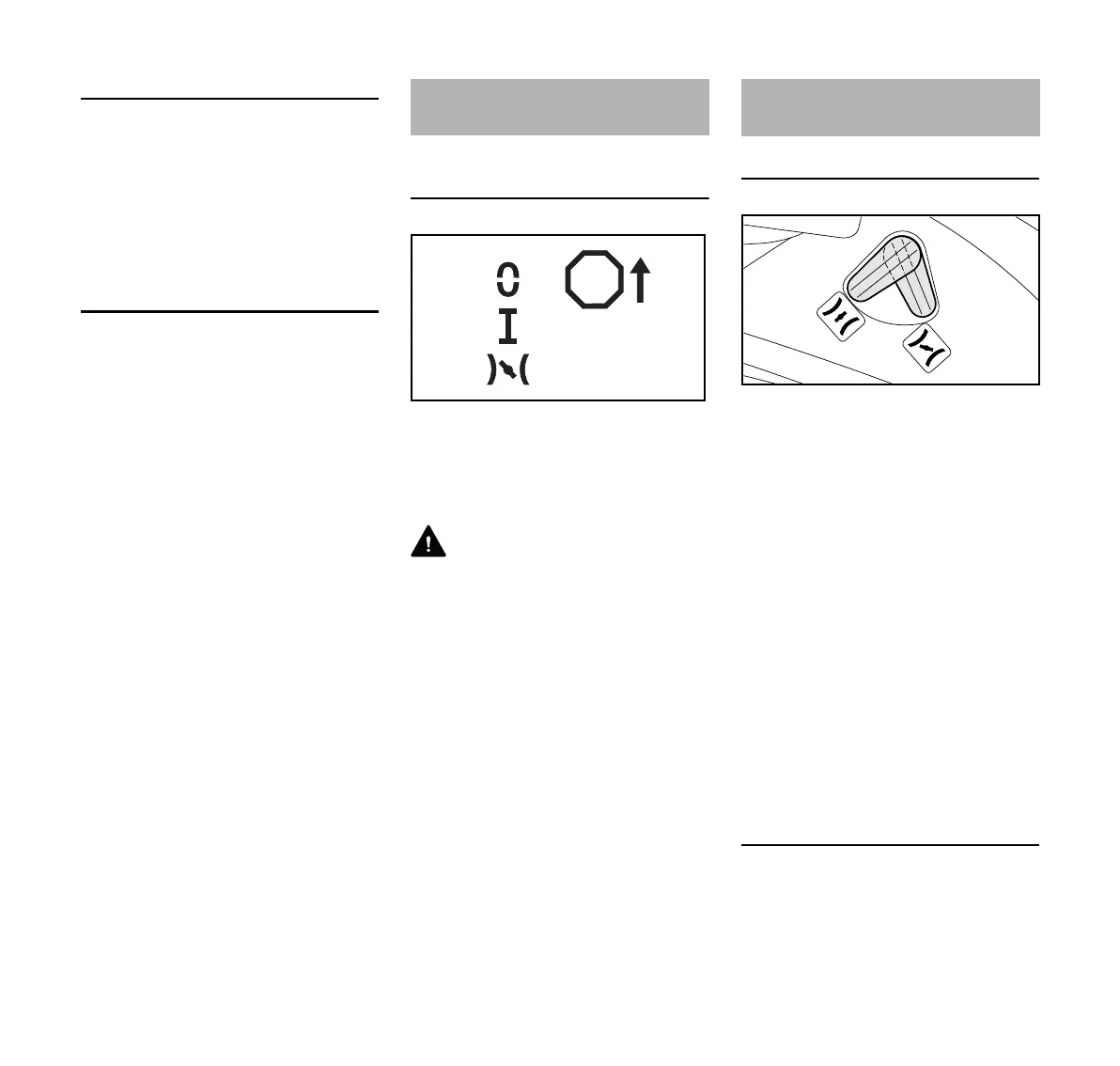

The three positions of the Master
Control lever:
STOP or † – Master Control lever must
be pushed in direction of STOP or † to
switch off ignition. The Master Control
lever springs back to the run position F
when it is released.
WARNING
The ignition is switched on again
automatically after the engine stops.
Engine can be started by operating the
rewind starter.
Normal run position F – engine runs or
can fire.
To move the Master Control lever from F
to n, press down the throttle trigger
lockout and squeeze the throttle trigger
at the same time.
Starting throttle position n – this
position is used to start a warm engine.
The Master Control lever moves to the
normal run position as soon as the
throttle trigger is squeezed.
Positions of Choke Shutter
Choke shutter closed l – for starting
the engine
Select this position:
– if the engine is cold
– if the engine stalls when you open
the throttle after starting.
– if the fuel tank was run until empty
(engine stopped).
Choke shutter open j – for starting the
engine
Select this position:
– if the engine is warm, i.e. if it has
been running for about one minute.
– When the engine begins to fire
– after clearing a flooded combustion
chamber.
Setting the Master Control Lever
To move the Master Control lever from
the normal run position (F) to starting
throttle (n), press down the throttle
trigger lockout and squeeze the throttle
Full-time usage: every 3
months
Part-time usage: every 6
months
Occasional usage: every 12
months
Information Before You Start
0000-GXX-7847-A0
STOP
Starting / Stopping the
Engine
418BA016 KN

Stihl MS 194 C Specifications

General

Engine Power	1.4 kW
Displacement	30.1 cm³
Weight	3.6 kg
Fuel Capacity	0.27 L
Chain Pitch	3/8" PM3
Guide Bar Length	30 cm (12")
