Stihl MS 194 C User Manual

MS 194 C
English
52
1 Carburetor Box Cover Twist Lock
2 Carburetor Box Cover
3 Carburetor Adjusting Screws
4 Muffler with Spark Arresting Screen
5 Chain Sprocket Cover
6 Chain Sprocket
7 Chain Brake
8 Chain Tensioner
9 Chain Catcher
10 Guide Bar
11 Oilomatic Saw Chain
12 Bumper Spike
13 Oil Filler Cap
14 Fuel Filler Cap
15 Front Hand Guard
16 Front Handle (Handlebar)
17 Starter Grip
18 Choke Lever
19 Fuel Pump
20 Spark Plug Boot
21 Throttle Trigger
22 Master Control Lever
23 Throttle Trigger Lockout
24 Rear Handle
25 Rear Hand Guard

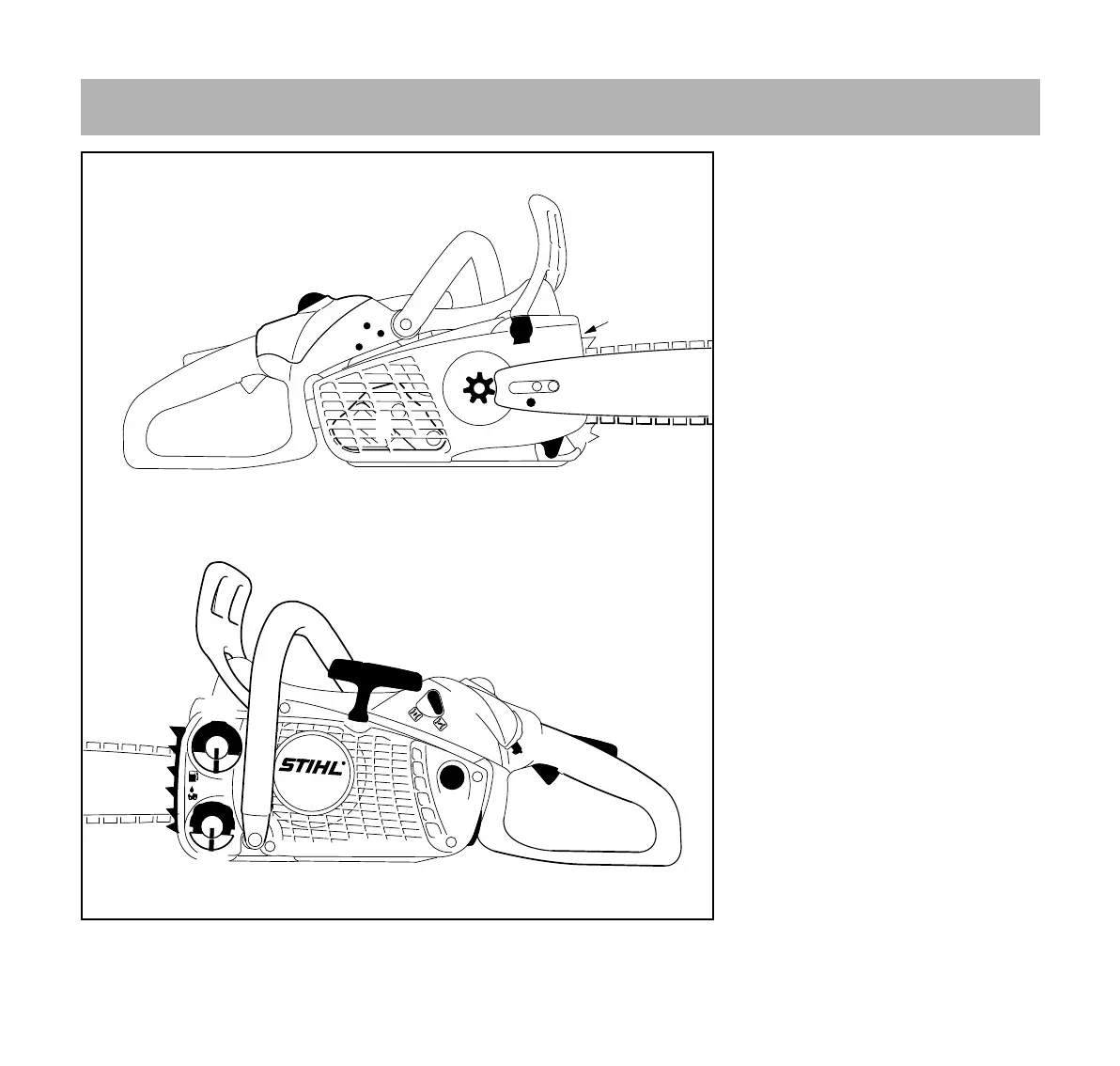

Main Parts
1
2
3
#
7
5
6
8
10
11
9
16
15
14
12
13
21
25
19
20
18
23
24
418BA013 KN
17
22
4

Stihl MS 194 C Specifications

General

Engine Power	1.4 kW
Displacement	30.1 cm³
Weight	3.6 kg
Fuel Capacity	0.27 L
Chain Pitch	3/8" PM3
Guide Bar Length	30 cm (12")
