108 MS 261, MS 261 C

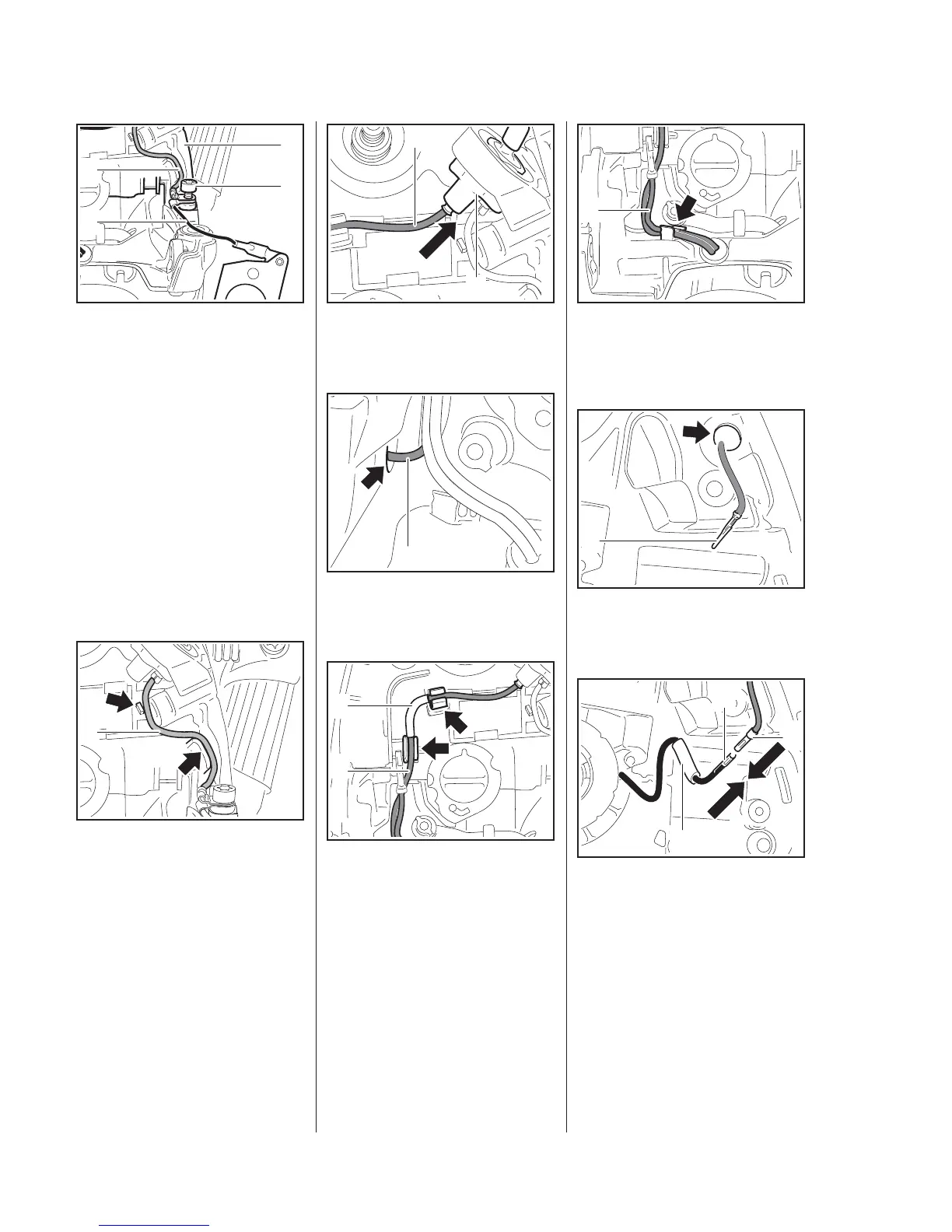

– Place the air guide shroud (1) in
position.
: Position the wire (2) of the
carburetor's heating element so
that the crimped side of the
terminal faces down.
: Position the ground wire (3) so
that the crimped side of the
terminal faces up.
: Insert and tighten down the
screw (4) firmly.
Do not twist the terminals.
: Push the ground wire (1) into the
guides (arrows).
5902RA538 TG
3
4
2
1
5902RA539 TG
1
: Push the connector (1) into the
heater switch (2) as far as stop.
: Fit the generator wire (1) through
the bore (arrow).
: Fit the wiring harness (1) into the
guides so that the protective
tube (2) butts against the
guides (arrows).
5902RA540 TG
1
2
5902RA541 TG
1
5902RA542 TG
1
2
: Fit the wiring harness (1) snugly
and press it into the
guide (arrow).
: Pull the generator wire (1)
through the bore (arrow).
: Connect the pin (1) and
socket (2).
– Push the insulating tube (3) over
the connector.
5902RA543 TG
1
5902RA566 TG
1
5902RA544 TG
1
2
3

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
