101MS 261, MS 261 C

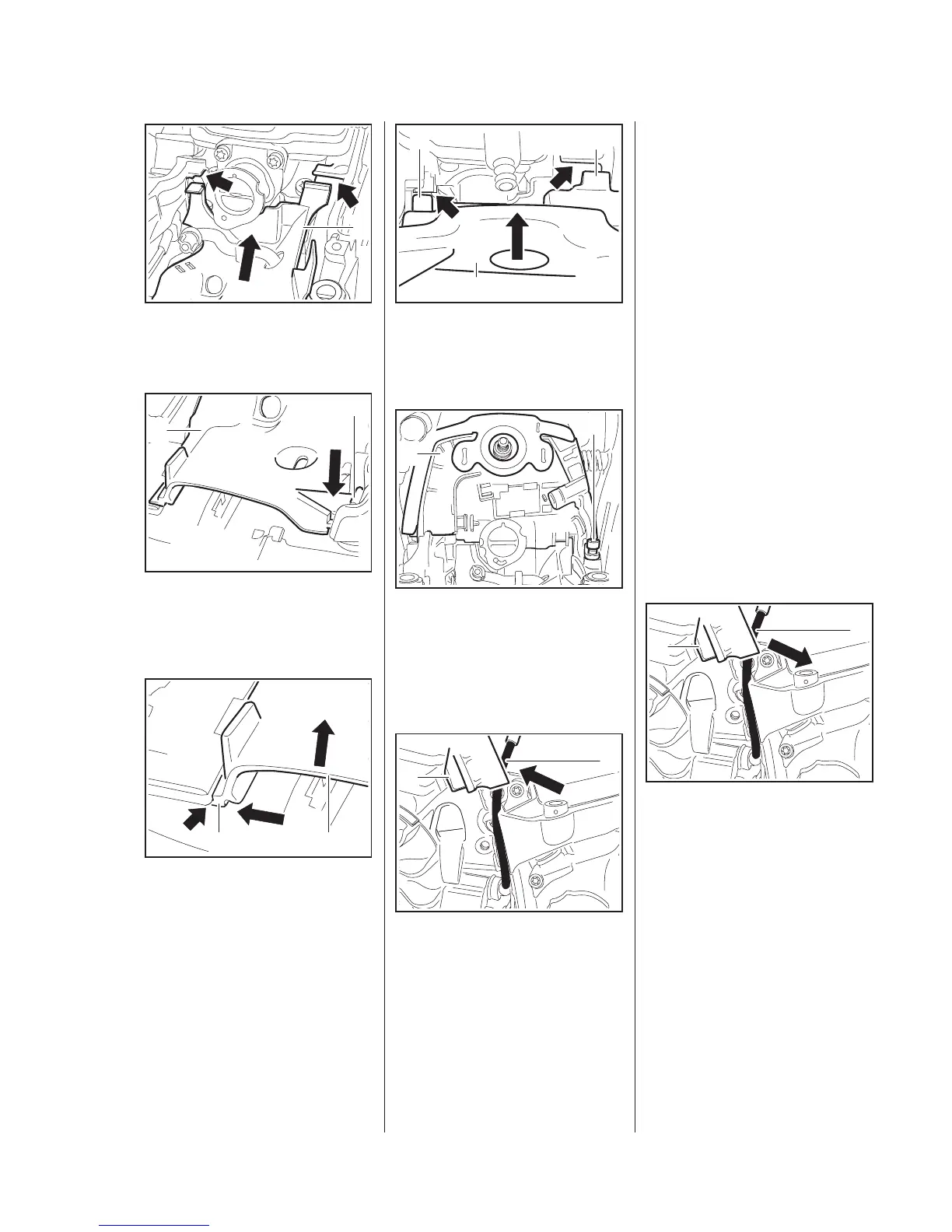

: Push the air guide shroud (1) into
its seats (arrows).
: Press the air guide shroud (1)
into its seat until the tab (2) snaps
into place.
: To simplify assembly, lift the
bottom of the air guide shroud (2)
slightly during the following steps.
: Push the tab (1) towards the
clutch side and under the edge of
the housing (arrow).
5902RA467 TG
1
5902RA468 TG
1
2
5902RA469 TG
1 2
: Push the lugs (2) of the air guide
shroud (1) into their
seats (arrows).
– Place the air guide shroud (1) in
position.
: Insert and tighten down the
screw (2) firmly.
: Lift the air guide shroud (1) a little
and place the ignition lead (2) in
the guide
– take care not to distort the air
guide shroud.
5902RA470 TG
2
2
1
5902RA471 TG
2
1
5902RA472 TG
2
1
– Press the ignition lead (2) fully
into the guide.
– Reassemble all other parts in the
reverse sequence.
12.4.1 Air Guide Shrouds –
Models with Manual Fuel
Pump
– Remove the fan housing, b
b
8.2
– Remove the filter base,
b
12.3
– Remove the throttle rod,
b
10.3.4
– Remove the carburetor,
b
12.5
– Remove the carburetor carrier,
b
12.8
– Pull the boot off the spark plug.
: Lift the air guide shroud (1) a little
and pull out the ignition lead (2)
– take care not to distort the air
guide shroud.
5902RA459 TG
2
1

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
