Stihl MS 261 C

102 MS 261, MS 261 C

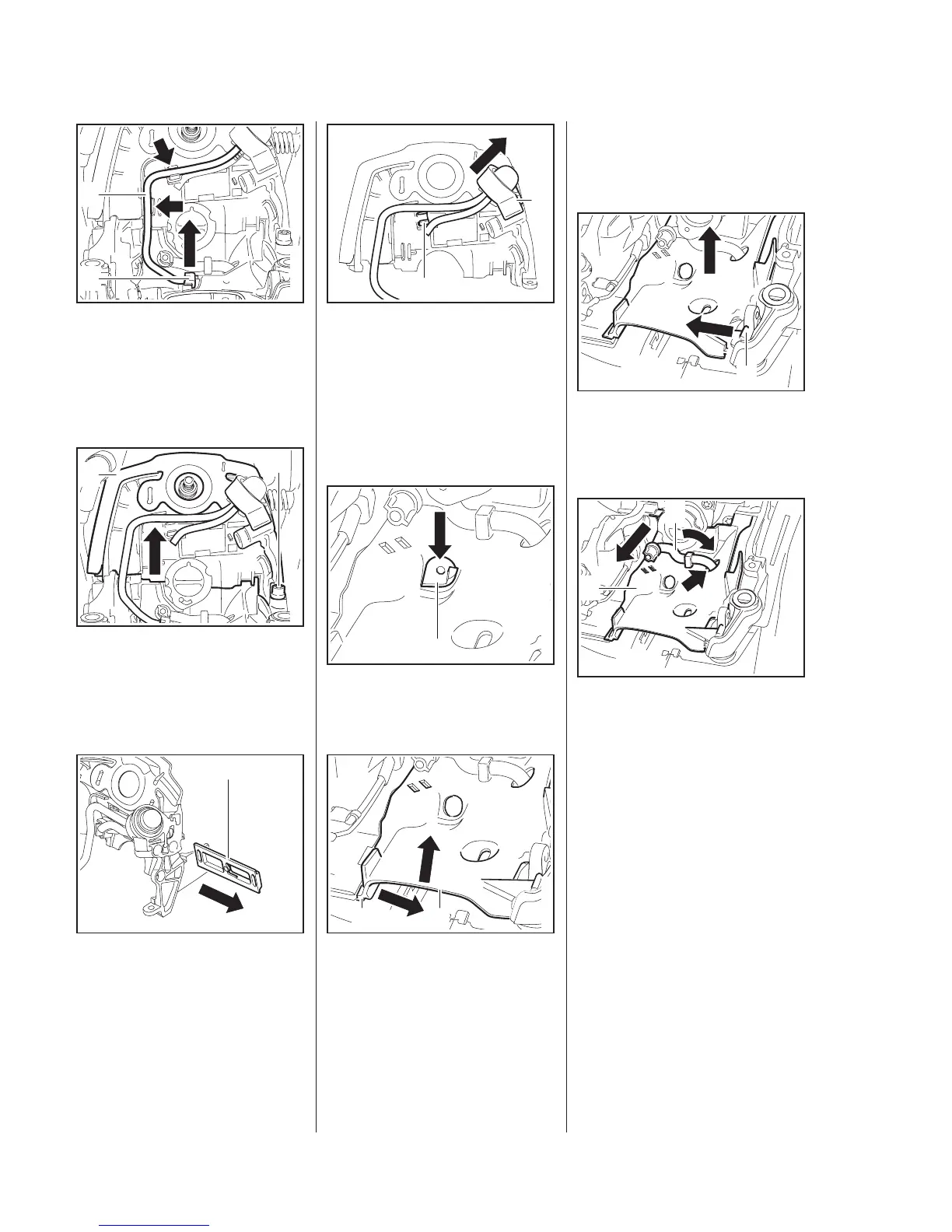

: Pull out the connector (1) with
fuel return hose (2).
: Pull the fuel return hose (2) out of
the guides (arrows).
: Take out the screw (1).
: Lift the air guide shroud (2) a little
and pull it out of its seats.
: Pull out the shutter (1), check it
and replace if necessary.
5902RA473 TG
1
2
5902RA475 TG
1
2
5902RA476 TG
1
: Push the retainer (1) with fuel
pump out of the guide.
: Remove the hose clip (2).
– Check the oil fuel pump and
replace if necessary, b
b
12.11.4
: Press out the fuel return hose (1)
in direction of tank housing.
: To simplify disassembly, lift the
bottom of the air guide shroud (2)
slightly during the following steps.
5902RA477 TG
1
2
5902RA474 TG
1
5902RA478 TG
1 2
: Push the tab (1) towards the
clutch side and lift the air guide
shroud (2) out of its seat.
: Push the tab (1) towards the
ignition side and lift the air guide
shroud.
: Pull the air guide shroud (1) out
of its seats and lift it away,
removing the fuel hose (2)
through the opening (arrow) at
the same time.
5902RA479 TG
1
5902RA480 TG
1
2
