Stihl MS 261 C User Manual

138 MS 261, MS 261 C
Installing

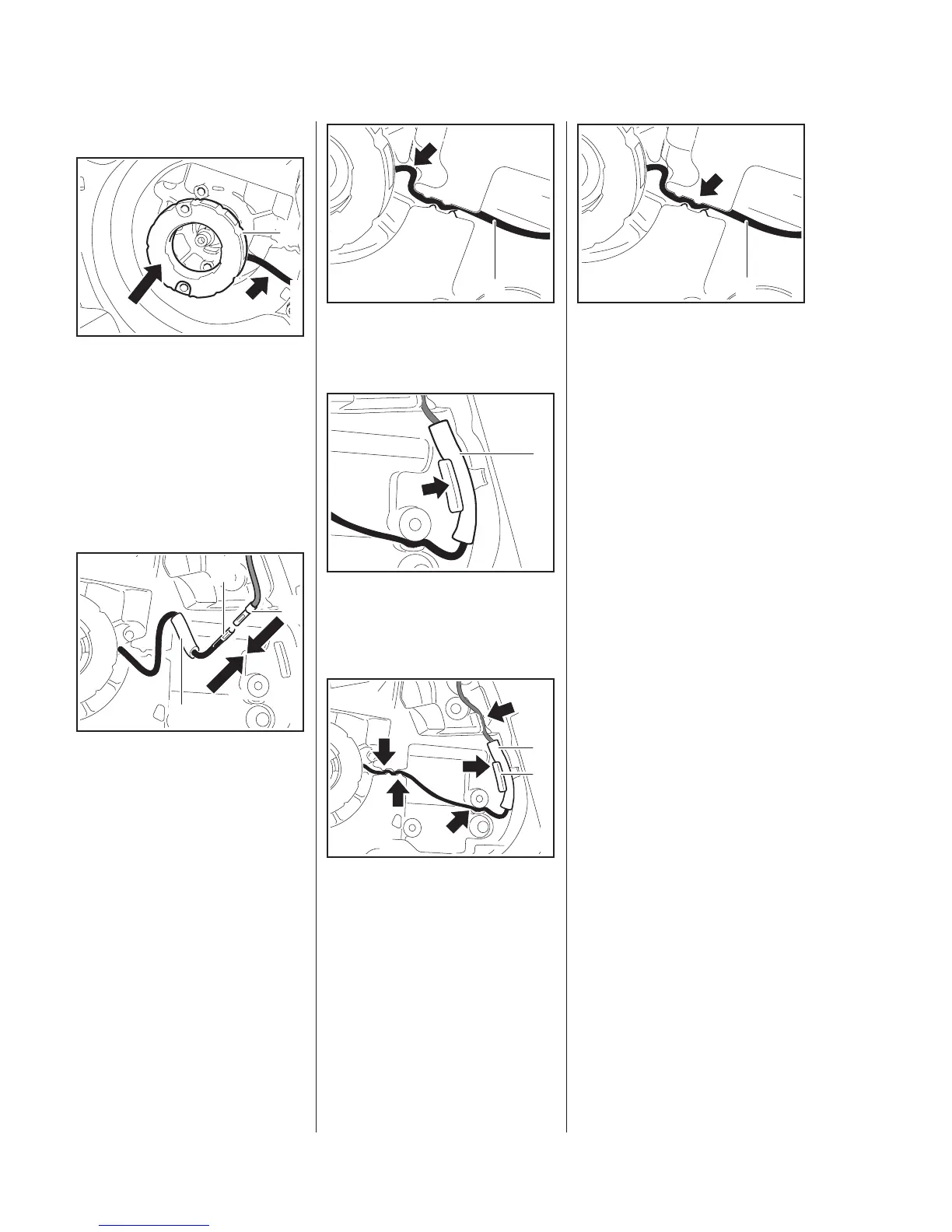

: Position the generator (1) with
the wire (arrow) facing the
crankcase.
– Insert the screws and tighten
them down firmly.
– Check that the generator is
properly seated.
: Connect the pin (1) and
socket (2).
– Push the insulating tube (3) over
the connector.
To reduce the risk of a short circuit,
make sure the insulating tube
completely covers the connector.
5902RA600 TG
1
5902RA544 TG
1
2
3
: Push the generator wire (1) to the
bottom of the recess (arrow).
: Center the connector and
insulating tube (1) in the
guide (arrow).
: Press the generator wire and
wiring harness into the
guides (arrows).
: Push the pin and socket
connector with insulating tube (1)
into the guide (2).
5902RA546 TG
1
5902RA568 TG
1
2
1
5902RA545 TG
The wire (1) must be properly
seated in the guide (arrow) and not
project.
The flywheel must not touch the
generator wire
– this could cause a break in power
supply.
– Reassemble all other parts in the
reverse sequence.
5902RA569 TG
1

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
