146 MS 261, MS 261 C

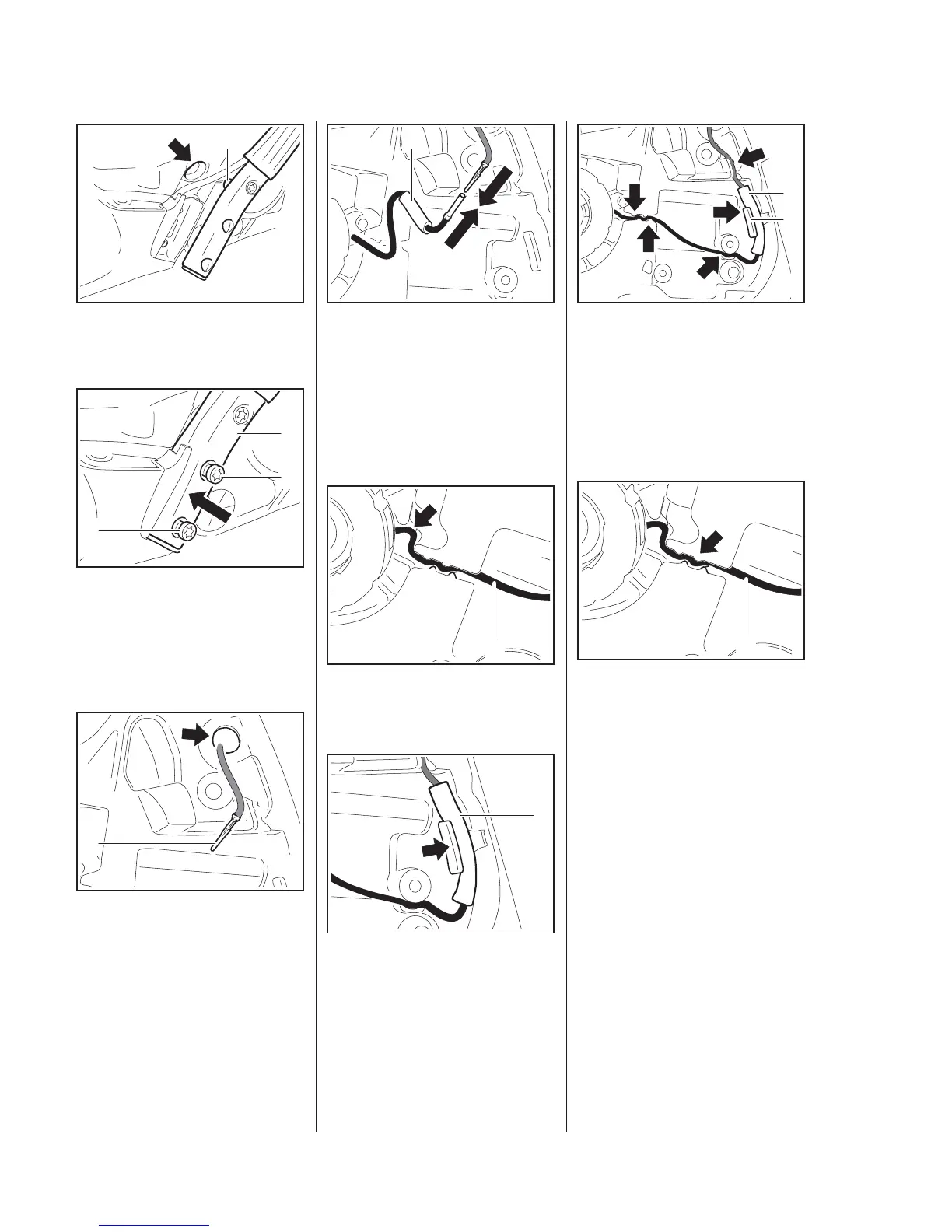

The peg (1) must engage the seat
(arrow).
: Place the handlebar (1) in the
support.
: Insert and tighten down the
screws (2) firmly.
: Fit the terminal (1) through the
bore (arrow).
5902RA297 TG
1
5902RA565 TG
1
2
2
5902RA566 TG
1
: Fit the insulating tube (1).
: Push the pin and socket together
until they lock.
– Push the insulating tube (1) over
the connector.
: Position the generator wire at the
bottom of the recess (arrow).
: Center the connector and
insulating tube (1) in the
guide (arrow).
5902RA567 TG
1
5902RA546 TG
1
5902RA568 TG
1
: Press the generator wire and
wiring harness into the
guides (arrows).
: Push the pin and socket
connector with insulating tube (1)
into the guide (2).
The wire (1) must be properly
seated in the guide (arrow) and not
project.
The flywheel must not touch the
generator wire
– this could cause a break in power
supply.
– Reassemble all other parts in the
reverse sequence.
– Install the air guide shroud,
b
b
12.4
– Reassemble all other parts in the
reverse sequence.
2
1
5902RA545 TG
5902RA569 TG
1
