22 MS 261, MS 261 C

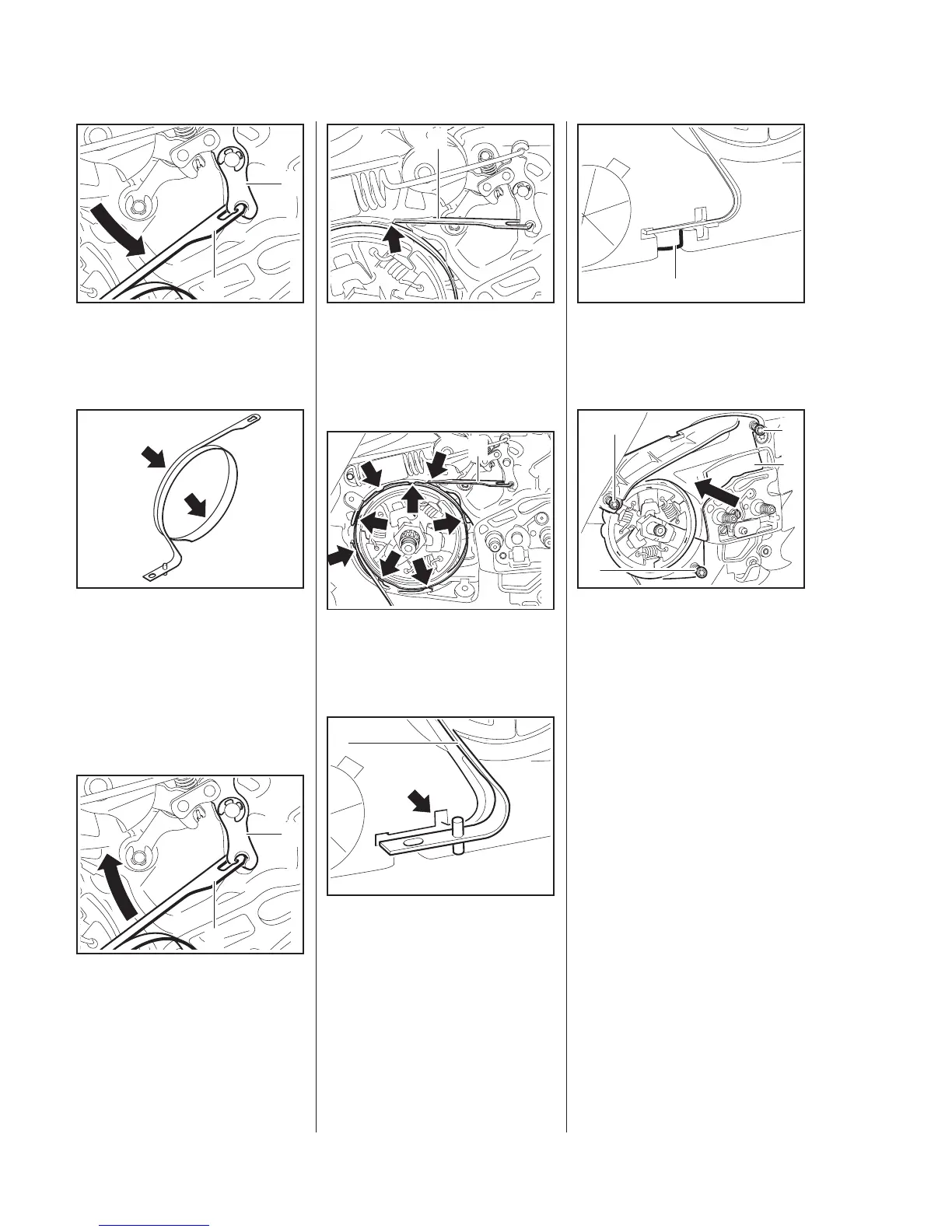

: Turn the brake band (1) to one
side and disconnect it from the
brake lever (2).
Install a new brake band if there are
noticeable signs of wear (large
areas on inside diameter and/or
parts of outside diameter – arrows)
and its remaining thickness is less
than 0.6 mm.
Installing
– Disengage the chain brake
: Hold the brake band (1)
sideways, attach it to the brake
lever (2) and then swing it in the
direction of its seat.
5902RA024 TG
1
2
219RA049 TG
5902RA025 TG
1
2
: Position the brake band (1) in the
guide (arrow).
– Engage the chain brake.
: Push the brake band (1) over the
guide lugs (arrows) and into its
seat.
: Push the brake band (1) into its
seat (arrow) as far as stop.
5902RA026 TG
1
5902RA027 TG
1
5902RA028 TG
1
: Fit the screw (1) on the underside
of the machine and tighten it
down firmly.
: Place the cover (1) in position.
: Insert and tighten down the
screws (2) firmly.
– Install the clutch drum, b
b
4.1
– Check operation,
b
5.1
– Reassemble all other parts in the
reverse sequence.
5902RA022 TG
1
off
off
off
5902RA029 TG
1
2
2
2

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
