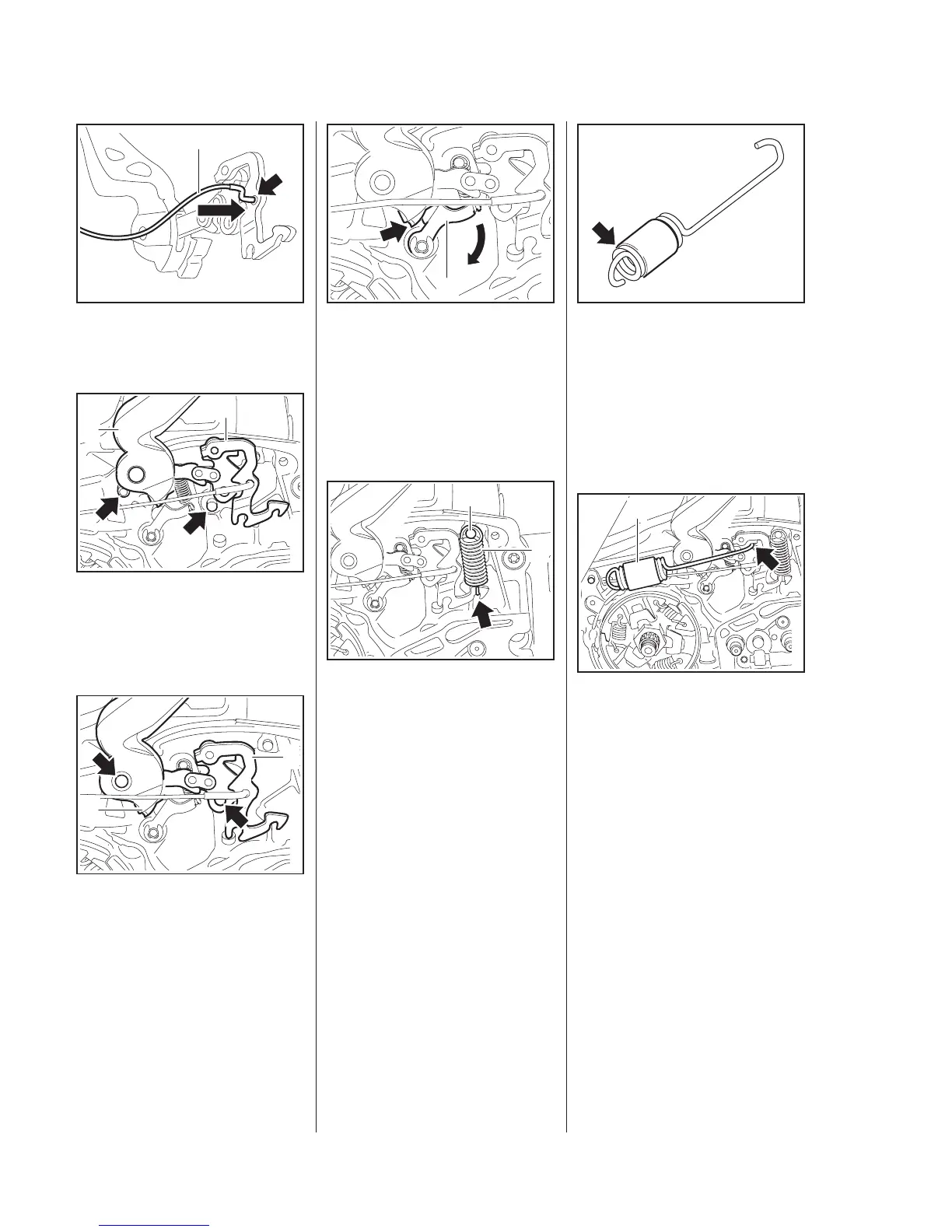

26 MS 261, MS 261 C
: Fit the brake cable (1) in the hole
(arrow).
: Push the hand guard (1) with
brake lever (2) over the machine
until they are positioned against
the pivot pins (arrows).
: Lift the bearing boss of the hand
guard (1) and the brake lever (2)
a little and position them over the
pivot pins (arrows).
5902RA049 TG
1
5902RA050 TG
1
2
5902RA051 TG
1
2
: Turn the cam lever (1) to one side
until the cam of the hand
guard (arrow) slips passed it.
– Push the hand guard bearing
boss and the brake lever on to
the pivot pins.
: Attach the spring (1) to the brake
lever (arrow) so that the open
side of the spring hook (arrow) is
visible.
: Attach the spring (1) to the
anchor pin (2).
5902RA052 TG
1
5902RA053 TG
1
2
The turns of brake spring must be
tightly against one another in the
relaxed condition. If this is not the
case, replace the brake spring.
– Position the protective tube so
that it leaves the first turn (arrow)
free.
: Attach the spring (1) to the brake
lever (arrow).
5902RA040 TG5902RA054 TG
1

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
