Stihl MS 261 C User Manual

44 MS 261, MS 261 C

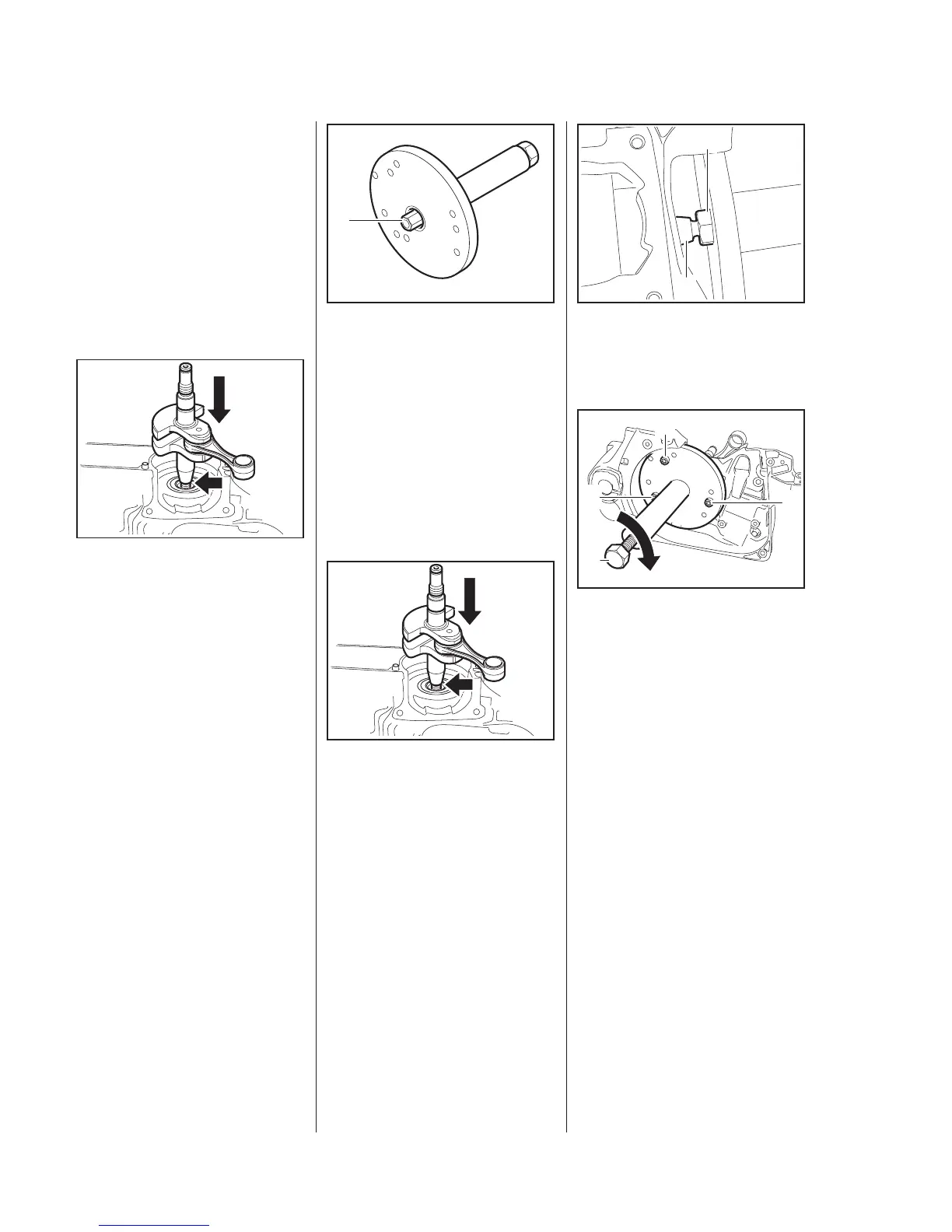

Installing
Ignition side of crankcase
Take care not to damage the
crankshaft stub.
Inspect and clean the sealing faces
on the ignition side of the
crankcase (including the cylinder
sealing face) – the sealing faces
must not be damaged in any way.
: Position the tapered stub of the
crankshaft (arrow) above the ball
bearing at the ignition side.
– Wear protective gloves
to reduce risk of burn injury.
– Heat the bearing inner race to
about 160°C (320°F).
: Push the crankshaft home as far
as stop.
This operation must be carried out
very quickly because heat is
absorbed by the crankshaft, and the
inner bearing race shrinks.
5902RA134 TG
If it is not possible to heat the inner
bearing race, use service tool
5910 007 2101 to install the
crankshaft.
– Use drilled plate 5910 893 2103.
: Screw the threaded sleeve (1)
5910 893 2420 onto the spindle
as far as stop.
Coat tapered stub of crankshaft with
oil.
.
: Position the tapered stub of the
crankshaft (arrow) above the ball
bearing at the ignition side and
push it home.
5902RA135 TG
1
5902RA134 TG
: Position the screw sleeve (2) on
the crankshaft thread (1) and
screw it into place.
: Turn the spindle bolt (1) to
position the drilled plate
5910 893 2103 against the
ignition side of the crankcase and
line it up so that the number "23"
is at the bottom.
: Fit the M5x72 screws (2) through
the holes marked "23"
and tighten them down.
: Turn the spindle bolt (1)
clockwise.
– Install the ignition side of the
crankcase as far as stop.
5902RA136 TG
2
1
24
24
24
23
23
22
22
22
23
24
23
5902RA137 TG
1
2
2
2

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
