Stihl MS 261 C User Manual

59MS 261, MS 261 C

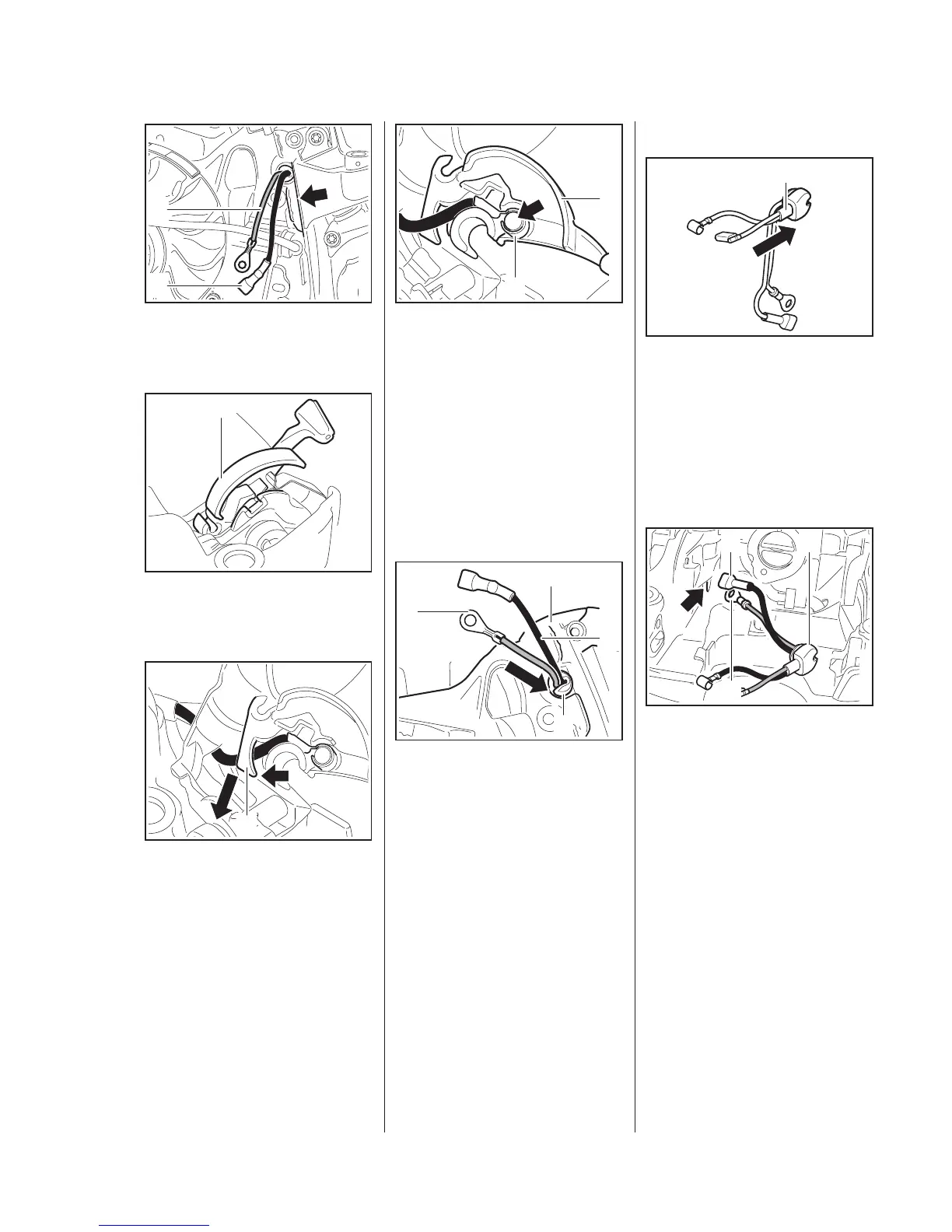

: Pull the wiring harness (1) out of
the guide (arrow).
– Remove the switch shaft (1),
b
10.1
: Pull the short circuit wire (1) out
from behind the tab (arrow).
5902RA184 TG
1
1
5902RA603 TG
1
5902RA186 TG
1
: Pull the ring terminal (1) off the
peg (arrow).
: Remove the switch shaft (2).
– Remove the filter base, b
b
12.3
– Remove the carburetor,
b
12.5
– Remove the carburetor carrier,
b
12.8
: Push the rubber grommet (1) out
of the crankcase (2).
: Pull out the wiring harness (3).
5902RA187 TG
1
2
5902RA188 TG
1
2
3
3
Installing
The protective tube (1) must butt
against the rubber grommet.
: If necessary, push the wiring
harness in the direction of the
grommet until the protective
tube (1) butts against the
grommet (2).
: Push the wiring harness (1),
cable lug (2) and ring terminal (3)
first, through the hole (arrow).
5902RA189 TG
1
5902RA190 TG
3
2 1

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
