Stihl MS 261 C User Manual

61MS 261, MS 261 C

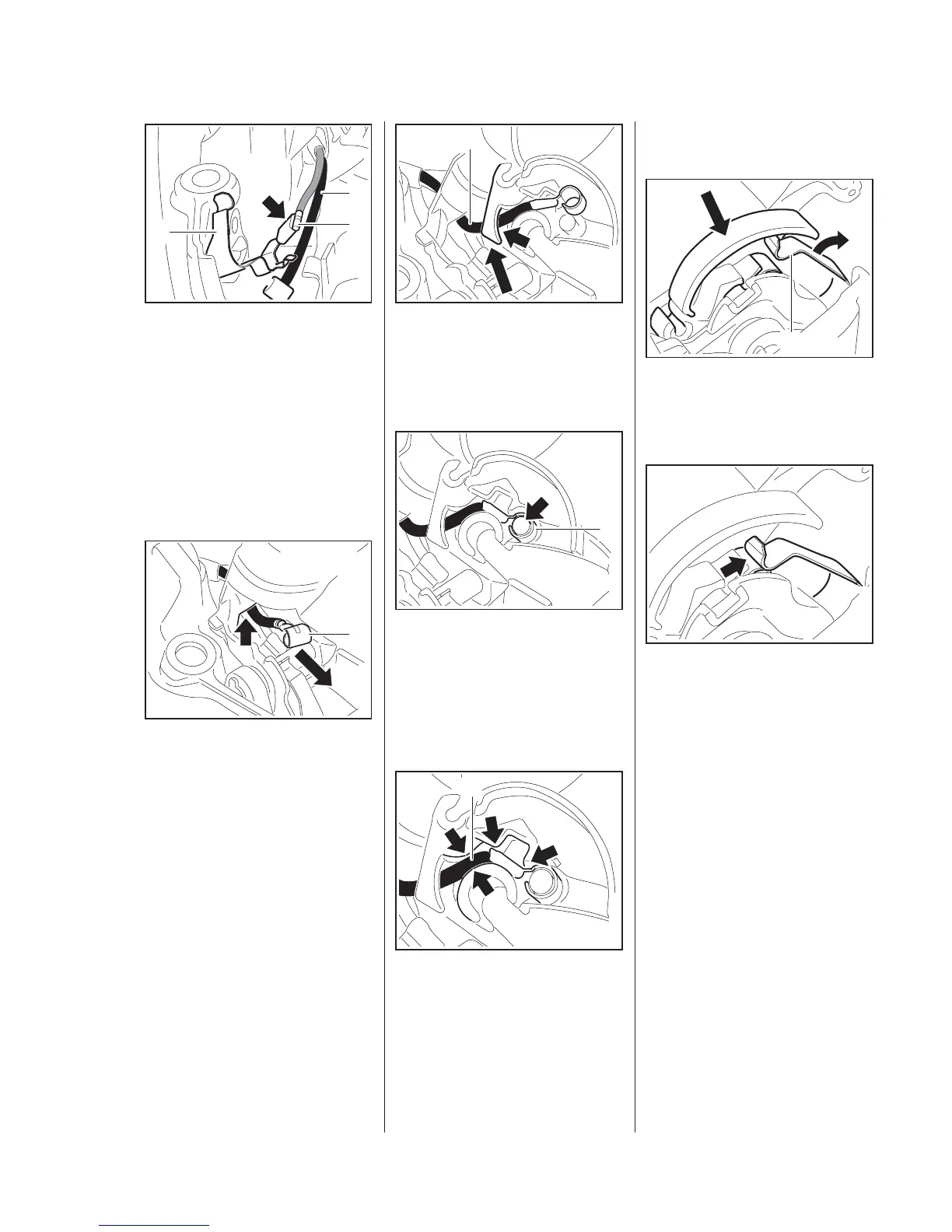

: Push the contact spring (1) onto
the ground wire (2).
: Position the short circuit wire (3)
so that it is above the ground
wire's flag terminal (arrow).
– Fit the contact spring,
b
7.7.4
– Install the filter base,
b
12.3
: Pass the ring terminal (1) through
the opening (arrow) in the filter
base.
5902RA195 TG
3
1
2
5902RA196 TG
1
– Place the switch shaft in position.
: Position the short circuit wire (1)
behind the tab (arrow).
: Position the ring terminal (1) so
that the gap in the ring faces
down.
: Push the ring terminal (1) onto
the peg (arrow) as far as stop.
: Push the short circuit wire (1) into
the guides (arrows).
5902RA197 TG
1
5902RA198 TG
1
5902RA199 TG
1
– Install the switch shaft, b
b
10.1
: When installing the switch shaft,
lift the contact spring (1) a little
– no more than 2 mm.
: Check operation.
– Short circuit wire's ring terminal
must touch the contact
spring (arrow) in position "
0".
– Reassemble all other parts in the
reverse sequence.
5902RA284 TG
1
5902RA264 TG

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
