Stihl MS 261 C User Manual

63MS 261, MS 261 C

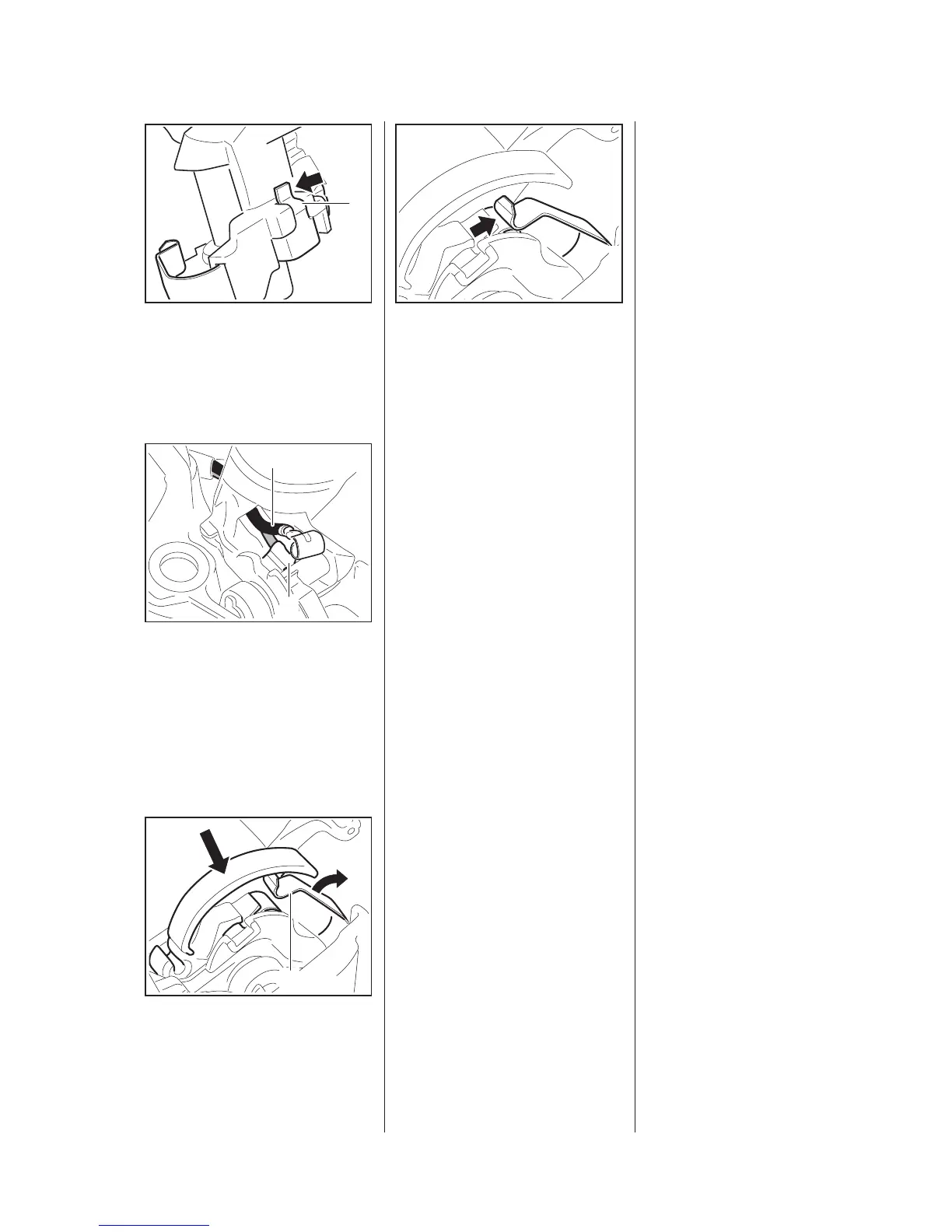

The tab (arrow) on the contact
spring (1) must locate securely on
the edge of the filter base.
– Install the filter base,
b
12.3
The short circuit wire (1) must be
above the ground wire's insulated
flag terminal (2).
– Fit the short circuit wire in the
switch shaft,
b
7.7.2
– Install the switch shaft,
b
10.1
: When installing the switch shaft,
lift the contact spring (1) a little
– no more than 2 mm.
5902RA282 TG
1
5902RA283 TG
1
2
5902RA284 TG
1
: Check operation.
– Short circuit wire's ring terminal
must touch the contact
spring (arrow) in position "
0".
– Reassemble all other parts in the
reverse sequence.
5902RA264 TG

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
