94 MS 261, MS 261 C

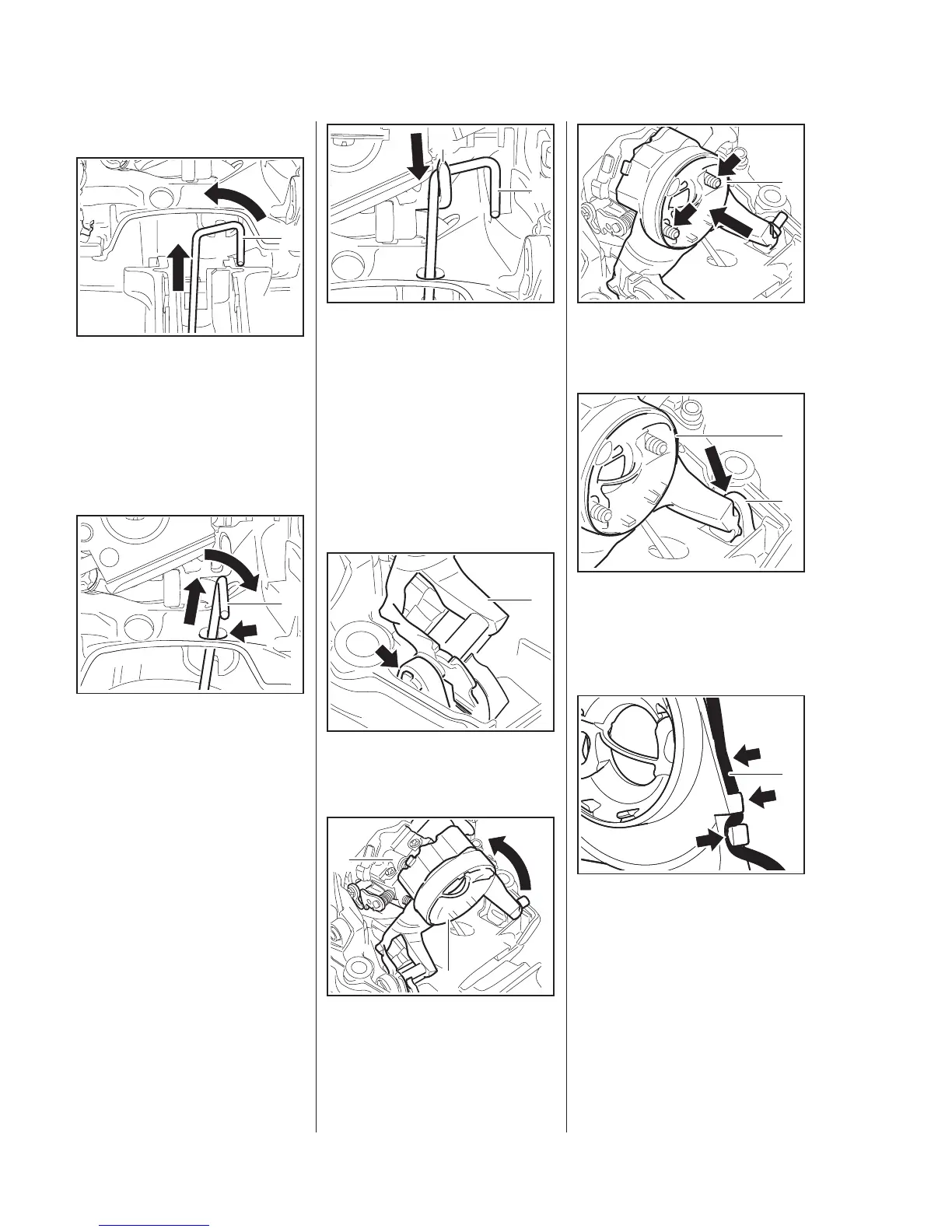

Installing
: Line up the throttle rod (1) (see
illustration).
: Push the throttle rod (1) between
the tank housing and air guide
shroud and rotate it about 90° at
the same time.
: Pass the throttle rod (1) through
the opening (arrow).
: Turn the bent end (1) clockwise
and push it under the throttle
trigger in the direction of the
engine.
5902RA345 TG
1
5902RA346 TG
1
: Push the throttle rod (1) into the
guide (2) in the carburetor carrier
until it snaps into position.
– Install the throttle trigger, b
b
10.2
– Check operation
– the throttle lever on the
carburetor must move upwards
when then throttle trigger is
pulled.
Engage peg of filter base (1) in
buffer (arrow) at ignition side.
: Swing the filter base (1) in
direction of clutch side so that it is
against the carburetor (2) studs.
5902RA347 TG
1
2
5902RA607 TG
1
5902RA458 TG
1
2
: Push the filter (1) onto the studs
and the carburetor.
: Engage the filter base (1) in the
buffer (2).
Models with heating
: Fit the wire (1) in the
guide (arrows).
– Reassemble all other parts in the
reverse sequence.
5902RA348 TG
1
5902RA349 TG
1
2
5902RA453 TG
1

Stihl MS 261 C Specifications

General

Displacement	50.2 cm³
Powerhead Weight	4.9 kg
Sound pressure level	103 dB(A)
Sound power level	116 dB(A)
Vibration level (left/right)	3.5/3.5 m/s²
Bar Length	40 cm (16 in.)
Fuel Capacity	500 cc
Oil Capacity	270 ml (9.1 oz.)
Chain pitch	3/8"
Engine Power	3.0 kW
