Stihl MS 391

64 MS 311, MS 391

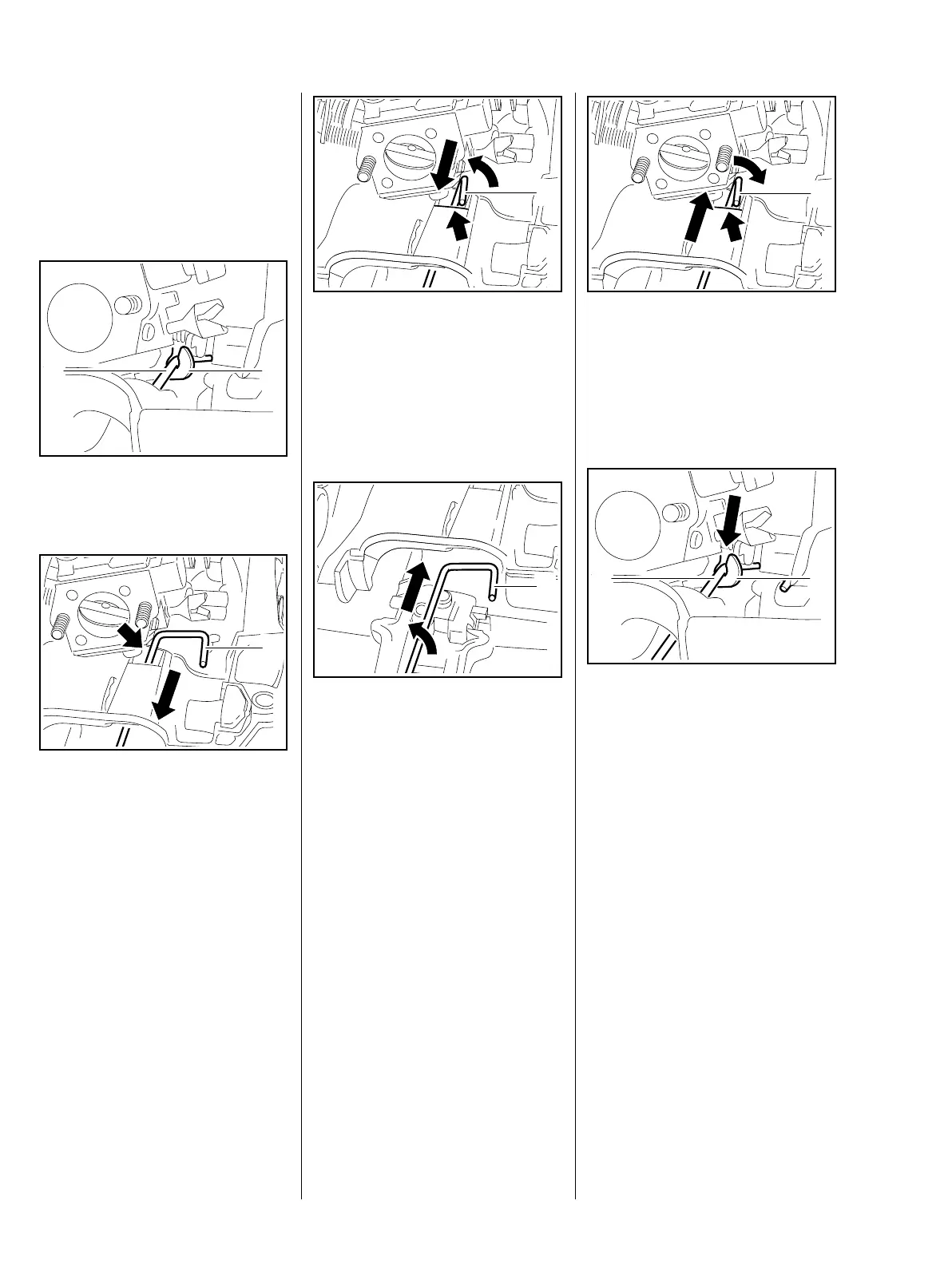

10.2.2 Throttle Rod
– Disconnect the throttle rod from
the trigger, b 10.2
– Remove the filter base, b 12.3
: Pry the throttle rod (1) out of the
carburetor carrier (2).
: Pull the throttle rod in the
direction of the handle until its
bent end (1) is in front of the
opening (arrow).
0001RA303 TG
1
2
4903RA170 Tg
1
: Rotate the throttle rod (1) about
90° counterclockwise. Pass the
throttle rod (1) through the
opening (arrow) in the direction of
the tank housing and remove it.
Installing
: Line up the throttle rod (1) (see
illustration).
: Push the throttle rod (1) between
the tank housing and air guide
shroud and rotate it about 90° at
the same time.
4903RA171 TG
1
4903RA172 TG
1
: Pass the throttle rod (1) through
the opening (arrow).
: Rotate the bent end (1) clockwise
and push it under the throttle
trigger.
: Push the throttle rod (1) into the
guide (2) in the carburetor carrier
until it snaps into position.
– Check operation – the throttle
lever on the carburetor must
move upwards when the throttle
trigger is pulled.
– Reassemble in the reverse
sequence.
4903RA173 TG
1
0001RA310 TG
1
2
