Stihl MS 391

87MS 311, MS 391

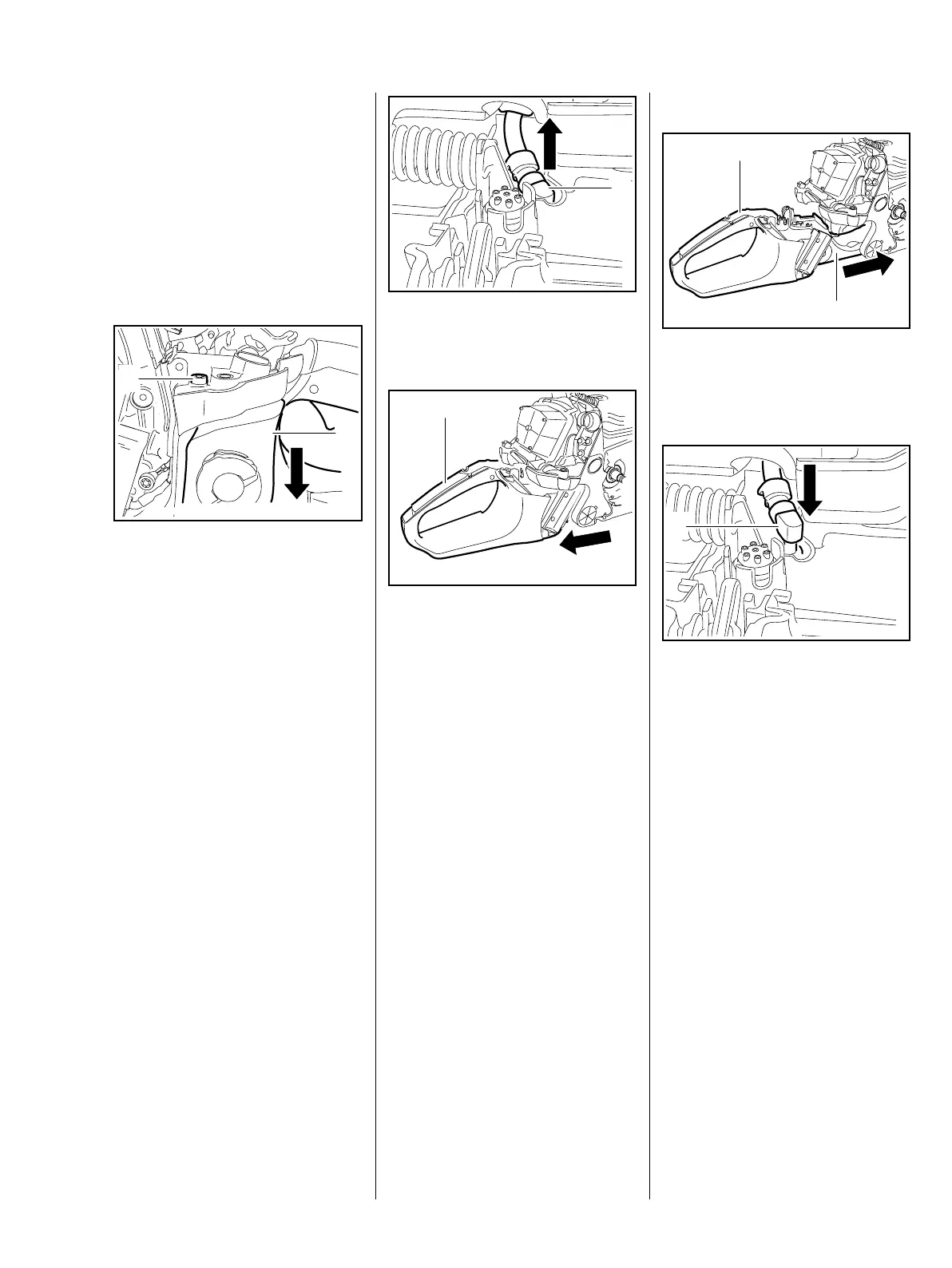

12.11.4 Tank Housing
– Drain the fuel tank, b 1
– Remove the handlebar, b 9.7
– Remove the stop buffer, b 9.5
– Remove the control levers, b 10
: Take out the screw (1).
– Lower the tank housing (2).
4903RA060 TG
1
2
: Pull out the connector (1) with
fuel hose.
: Pull out the tank housing (1).
Only transfer those parts from the
old tank housing that are not
included with the replacement
– see parts list.
4903RA247 TG
1
4903RA248 TG
1
Installing
: Slide the tank housing (1),
narrow part (2) first, into the
engine housing.
– Push the connector (1) with fuel
hose into the fuel suction hose.
– Reassemble all other parts in the
reverse sequence.
4903RA249 TG
2
1
4903RA250 TG
1
