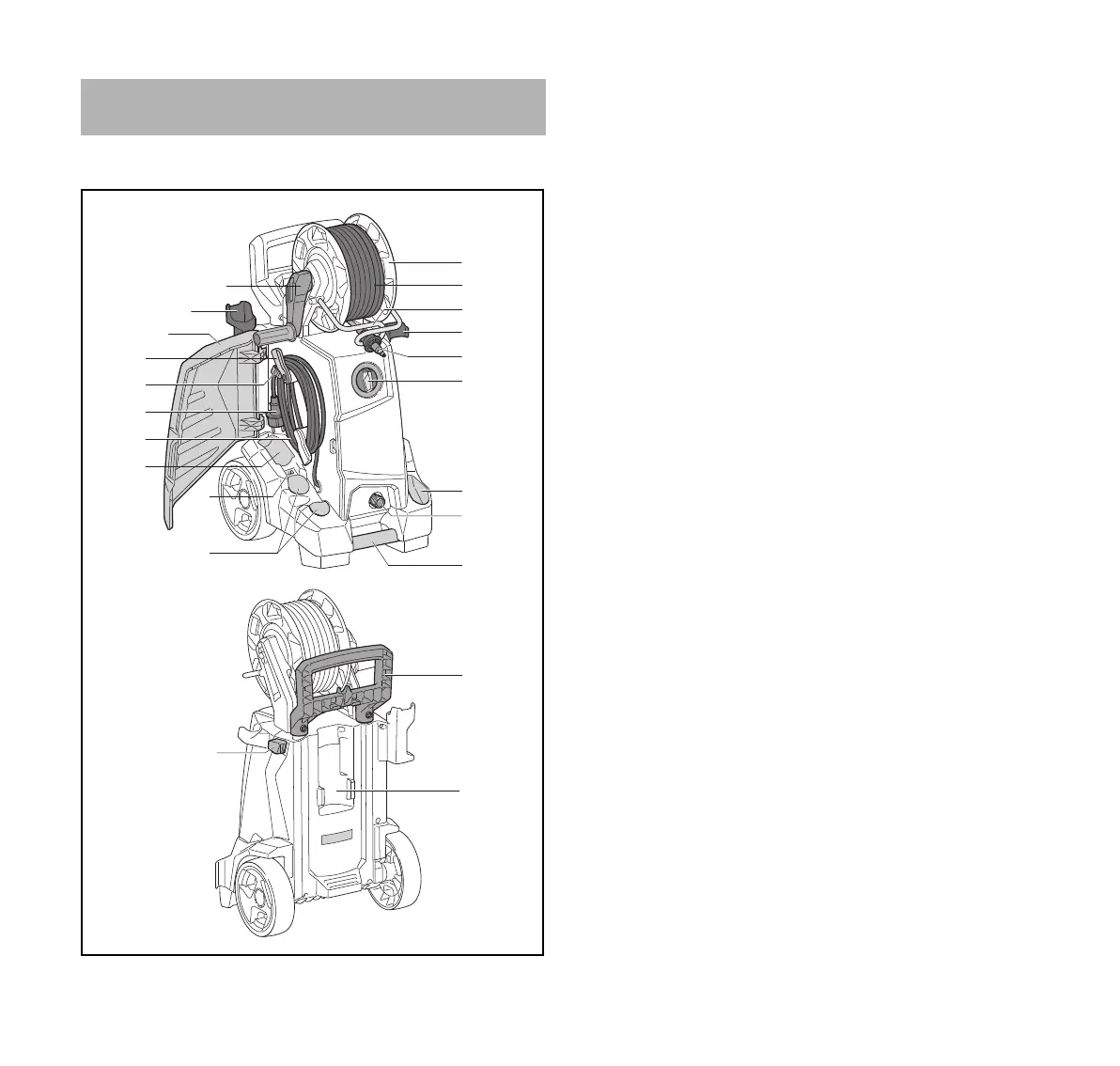

3 Main Parts
3.1 Pressure Washer
1 Storage Compartment
For storing the high-pressure nozzles.
2 Storage Compartment
For storing the cleaning needle.
3 Storage Compartment
For storing additional high-pressure nozzles from
accessories for pressure washers.
4 Power Supply Cord
Supplies the pressure washer with electricity when
connected to an electrical outlet (power supply).
5Plug
Connects the power supply cord to an electrical outlet.
6 Clip
For securing the power supply cord on the brackets.
7 Brackets for Power Supply Cord
For storing the power supply cord.
8Cover
Covers the high-pressure nozzles, the power supply cord
and the cleaning needle.
9 Holder for Spray Gun
For storing the spray gun.
10 Crank Handle
Used for turning the hose reel.
11 Hose Reel
For storing the high-pressure hose.
12 High-Pressure Hose
Transports the water from the high-pressure pump to the
spray gun.
13 Guide Bar
For guiding the high-pressure hose onto the hose reel.
14 Holder for Spray Attachment
For storing the entire spray attachment consisting of
spray gun and spray lance.
15 Coupling
For connecting the high-pressure hose to the spray gun.
