4 Safety Symbols on the Product
16 Power Switch
Switches the motor on and off.
17 Connector for Water Inlet
For connecting the water hose to the high-pressure
pump.
18 Carrying Handle
For lifting and transporting the pressure washer.
19 Pushbar
For pushing the pressure washer.
20 Holder for Detergent Spray Set
For storing the detergent spray set.
21 Release Button
Unlocks the pushbar to allow length adjustment.
# Rating Plate
Contains electrical information and the product's serial
number.

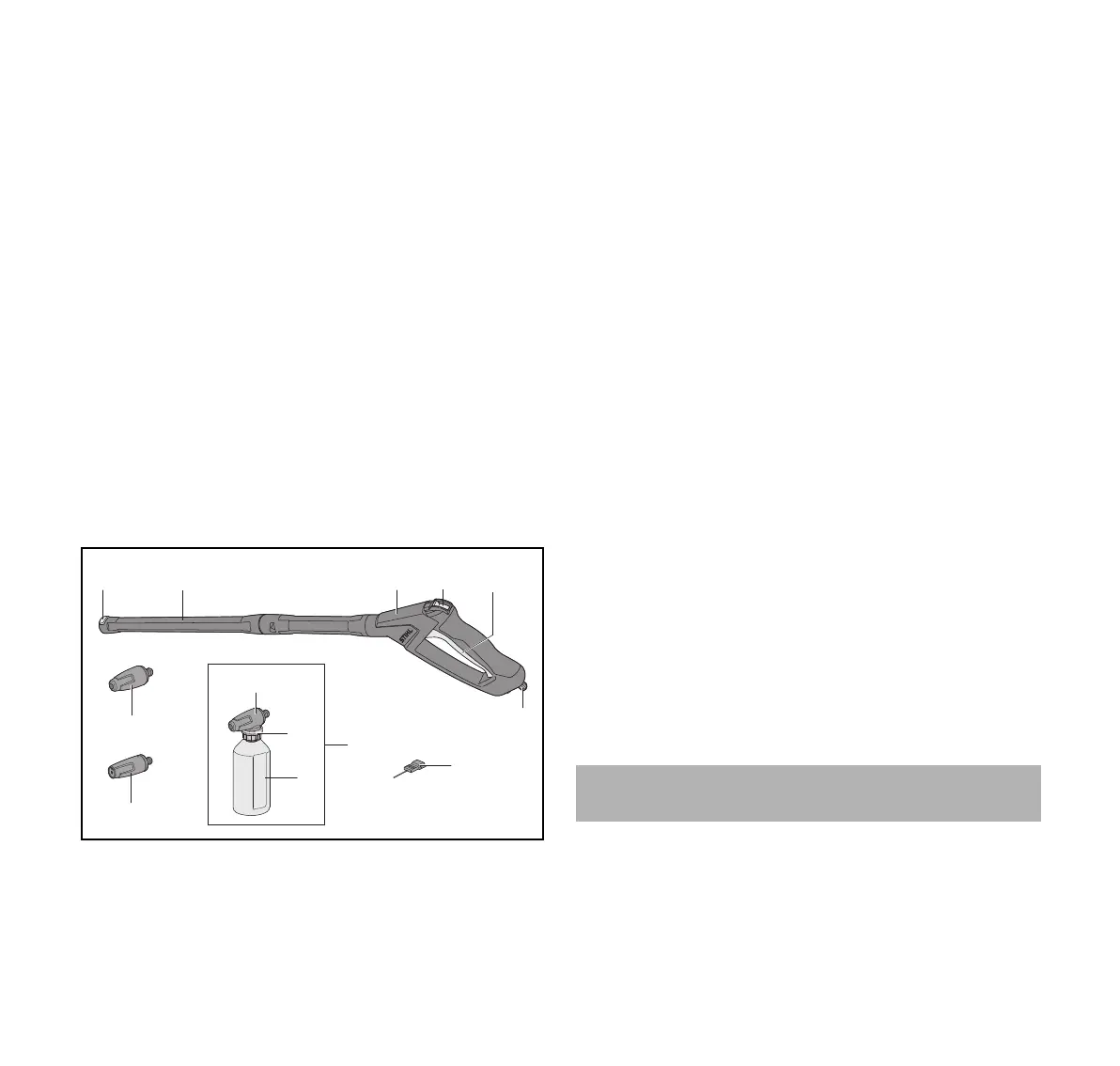

3.2 Spray Attachment
1 Coupling for High-Pressure Nozzle
For connecting a spray nozzle to the spray lance.
2 Spray Lance
Directs the water from the spray gun to the high-pressure
nozzle.
3 Spray Gun
For controlling and directing the water jet.
4 Retaining Latch
Locks/unlocks the spray gun trigger.
5 Spray Gun Trigger
Opens and closes the valve in the spray gun.
6 Coupling for High-Pressure Hose
For connecting the high-pressure hose to the spray gun.
7 Cleaning Needle
Designed to help remove dirt and debris from the spray
nozzles.
8 Detergent Spray Set
Used for adding detergents.
9 Detergent Bottle
For adding detergent while cleaning.
10 Adjusting Ring
Meters the quantity of detergent.
11 Detergent Nozzle
Designed to mix and spray detergent with water.
12 Fan-jet Nozzle
Universal nozzle for cleaning larger surfaces.
13 Rotary-jet Nozzle
Rotating nozzle for removing stubborn dirt.
4.1 Pressure Washer
The following safety symbols are found on the pressure
washer:
6
1 3 4
5
2
11
0000-GXX-4340-A0
13
12
9
10
7
8
