0478-131-9541-A
108
日本語
8 バッテリーの取り外しと取り付け
排出板(1)を収草ボックス(2)の上に下ろします。
7.3.3 収草ボックスの取り外し
芝刈機のスイッチを切ります。
芝刈機を平な場所に置きます。
排出板を開き、開いたままにします。
ハンドルを上方向に引いて、収草ボックスを取り外しま
す。
排出板を閉じます。

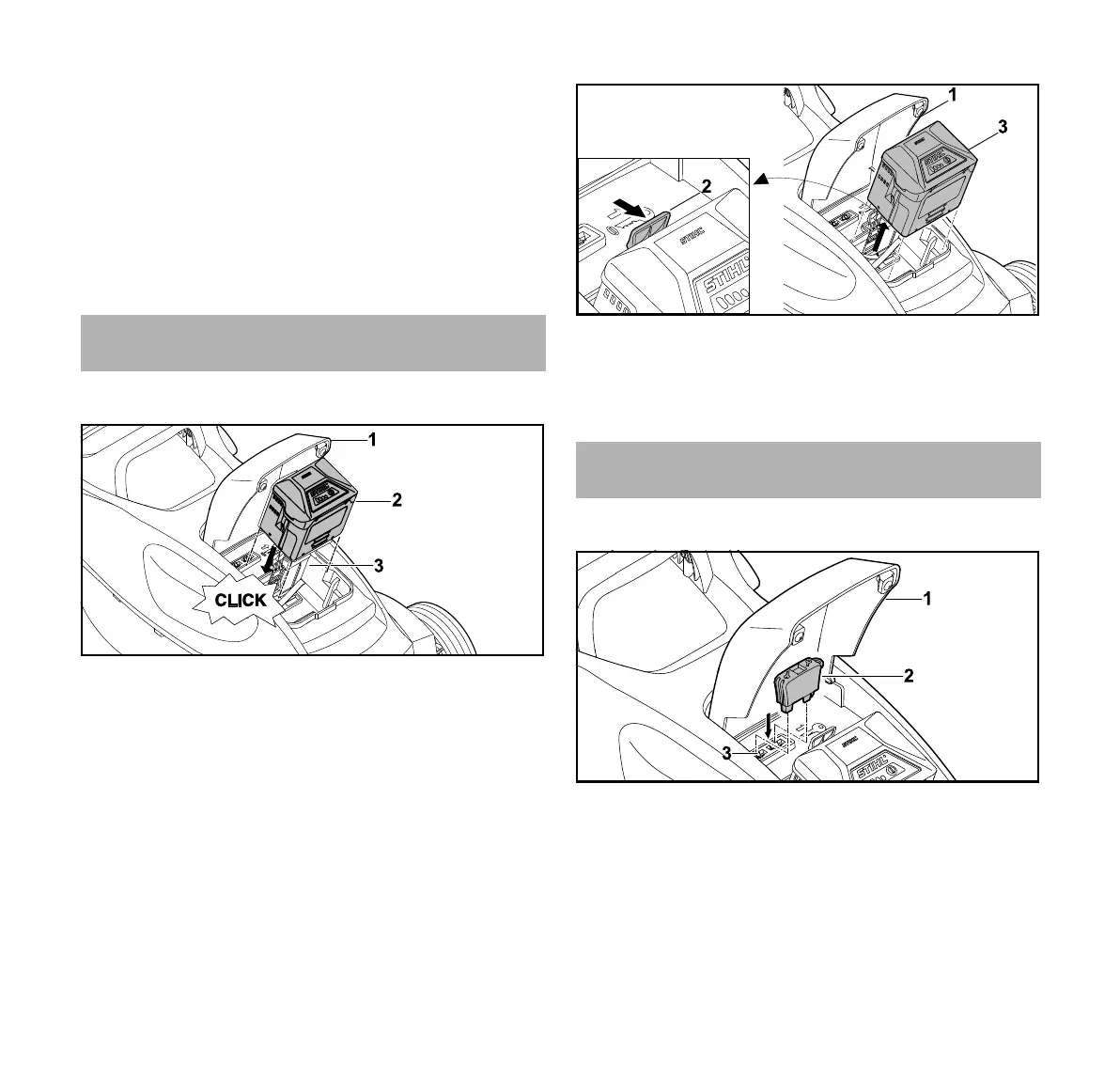

8.1 バッテリーの取り付け
芝刈機を平な場所に置きます。
フラップ(1)を完全に開きます。
バッテリー(2)をバッテリーコンパートメント(3)の
奥まで押し込みます。
バッテリー(2)がはまるとカチッという音が聞こえ、ロ
ックされます。
フラップ(1)を閉じます。
8.2 バッテリーの取り外し
芝刈機を平な場所に置きます。
フラップ(1)を完全に開きます。
ロックレバー(2)を押します。
バッテリー(3)のロックが解除されます。
バッテリー(3)を取り外します。
フラップ(1)を閉じます。
9.1 起動キーの挿入
フラップ(1)を完全に開きます。
キーの差し込み口(3)に起動キー(2)を差し込みま
す。
フラップ(1)を閉じます。
9.2 起動キーの取り外し
フラップを完全に開きます。
8 バッテリーの取り外しと取り付け
9 始動キーの抜き差し

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Stihl RMA 235 and is the answer not in the manual?

Stihl RMA 235 Specifications

General IconGeneral
TypeWalk behind lawn mower
Cutting width330 mm
Grass catcherYes
Product colorBlack, Grey, Orange
Uncertainty K0.9 m/s²
Housing materialPlastic
Number of wheels4 wheel(s)
Rotational speed3400 RPM
Maximum lawn area- m²
Mulching function-
Sound power level89 dB
Handle(s) featuresFoldable
Standard deviation2 dB
Vibration emission1.8 m/s²
Sound pressure level87.9 dB
Maximum cutting height60 mm
Minimum cutting height25 mm
Grass collecting volume30 L
Number of height positions5
Power sourceBattery
Power consumption (typical)450 W
Weight and Dimensions IconWeight and Dimensions
Weight14000 g
